Doosan DMP-2SP Series
The Doosan DMP vertical machining center series doubles your capacity with one single machine
Features
- X-Axis Travel - 1,040mm
- Spindle taper - 40
- Spindle RPM - 8,000 - 12,000
or copy link
Instead of running two identical machining centers to create the same parts, the DMP series gives you a single machine with dual capacity output. Ths machine only requires a single operator, so you can save on floorspace and running costs too.
Technical Specification
| X Axis Travel distance | 600 - 1040mm |
|---|---|
| Y Axis Travel distance | 520 - 570mm |
| Z Axis Travel distance | 600 - 625mm |
| X Axis Rapid Traverse | 40m/min |
| Y Axis Rapid Traverse | 40m/min |
| Z Axis Rapid Traverse | 36m/min |
| Max. Spindle Speed | 8000 - 12000r/min |
| Max. Spindle Power | 15 - 18kW |
| Max. Spindle Torque | 117 - 286N·m |
| Tool Taper | |
| Table Length | 1200 - 1500mm |
| Table Width | 520 - 570mm |
| Max. Table Weight | 800 - 1100kg |
| No. of tool station | 24 |
Series Dimensions
| Length | 2400mm |
|---|---|
| Width | 2760 - 3200mm |
| Height | 3510 - 3680mm |
| Weight | 8500 - 13000kg |

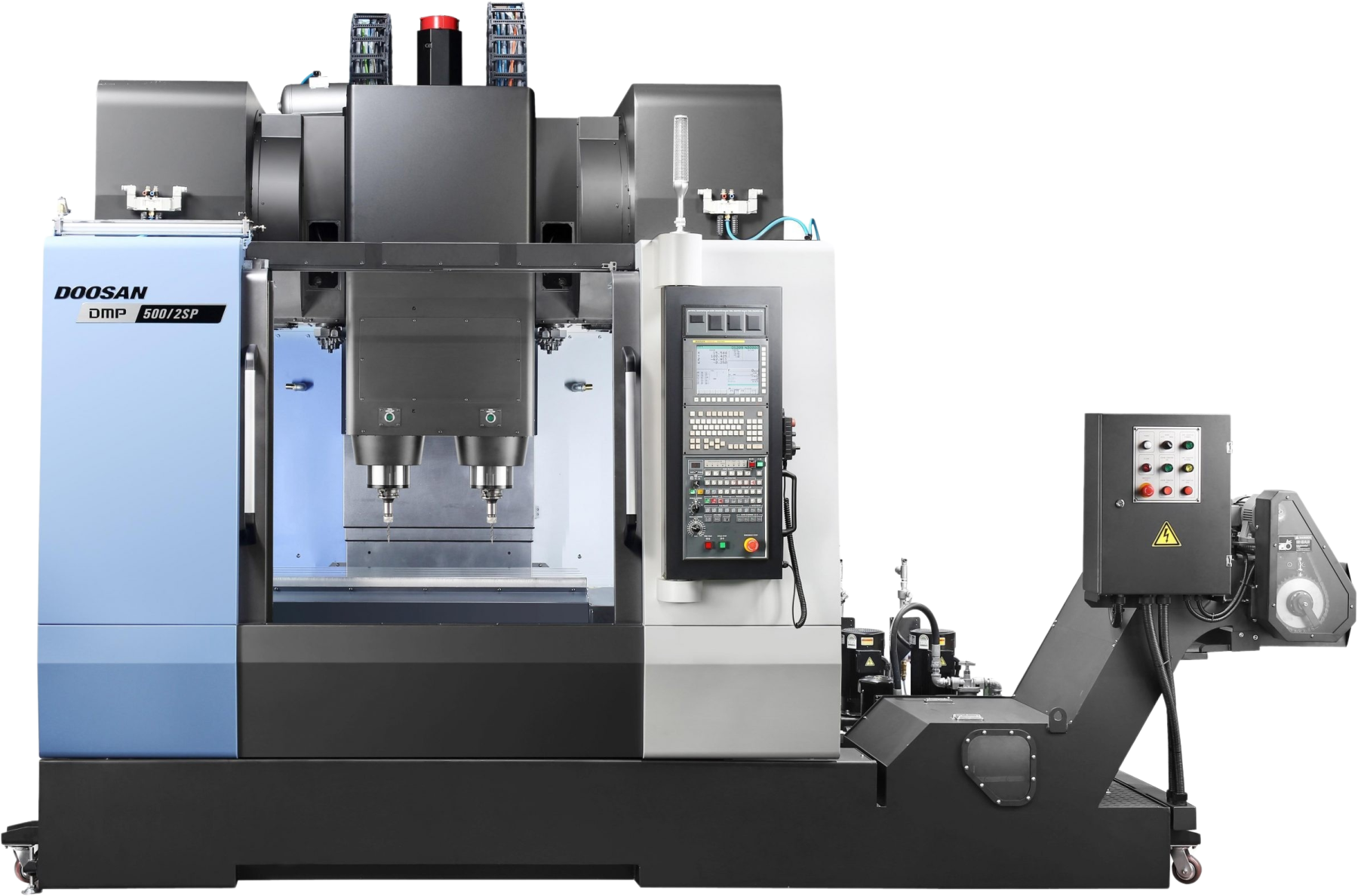

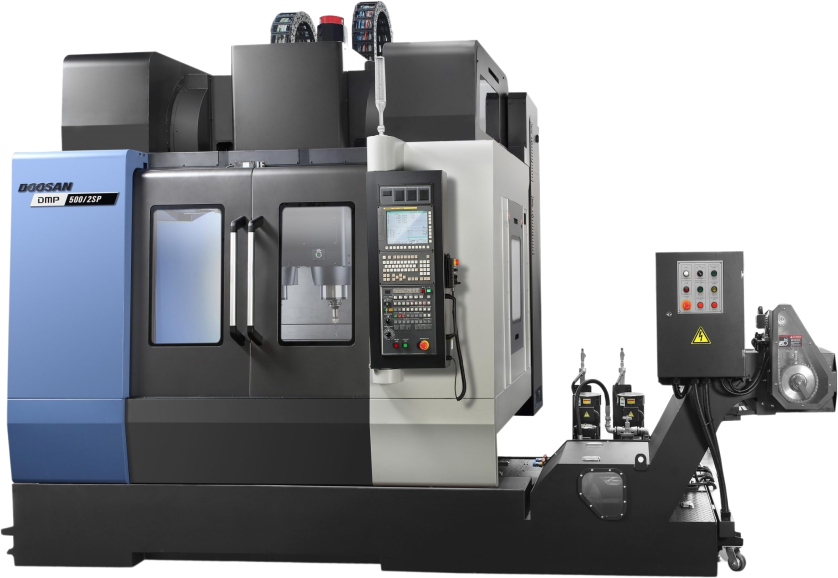

Image representative of Series and may not be the exact model
The Doosan DMP-2SP Series is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
