Doosan DBD Series
Doosan DBD Horizontal Boring Machine series
Features
- Concentric machining capability via double-ended spindle
- Large table for long and large workpieces
- Powerful heavy-duty spindle technology
or copy link
Doosan DBD (double-ended) boring machines enable bi-directional and simultaneous machining of long and symmetrical workpieces as a result of their double-ended boring spindle.
The moving table type machines are equipped with long tables (up to 1500mm x 8000mm), high-torque spindles with 3-step gear change capability, optional automatic tool changer and automatic pallet changers.
There are two machines in the range – the DBD 1270 and the DBD 1580.
Technical Specification
| X Axis Travel distance | 7000 - 8000mm |
|---|---|
| Y Axis Travel distance | 1500 - 2000mm |
| Z Axis Travel distance | 450 - 1000mm |
| Table Length | 7000 - 8000mm |
| Table Width | 1250 - 1500mm |
| Max. Table Weight | 10000kg |
| Max. Spindle Speed | 2000 - 2500r/min |
| Max. Spindle Power | 26kW |
| No. of tool station | 90 |
Series Dimensions
| Length | 19100 - 20900mm |
|---|---|
| Width | 10000 - 10400mm |
| Height | 4500 - 6000mm |
| Weight | 58000 - 86000kg |

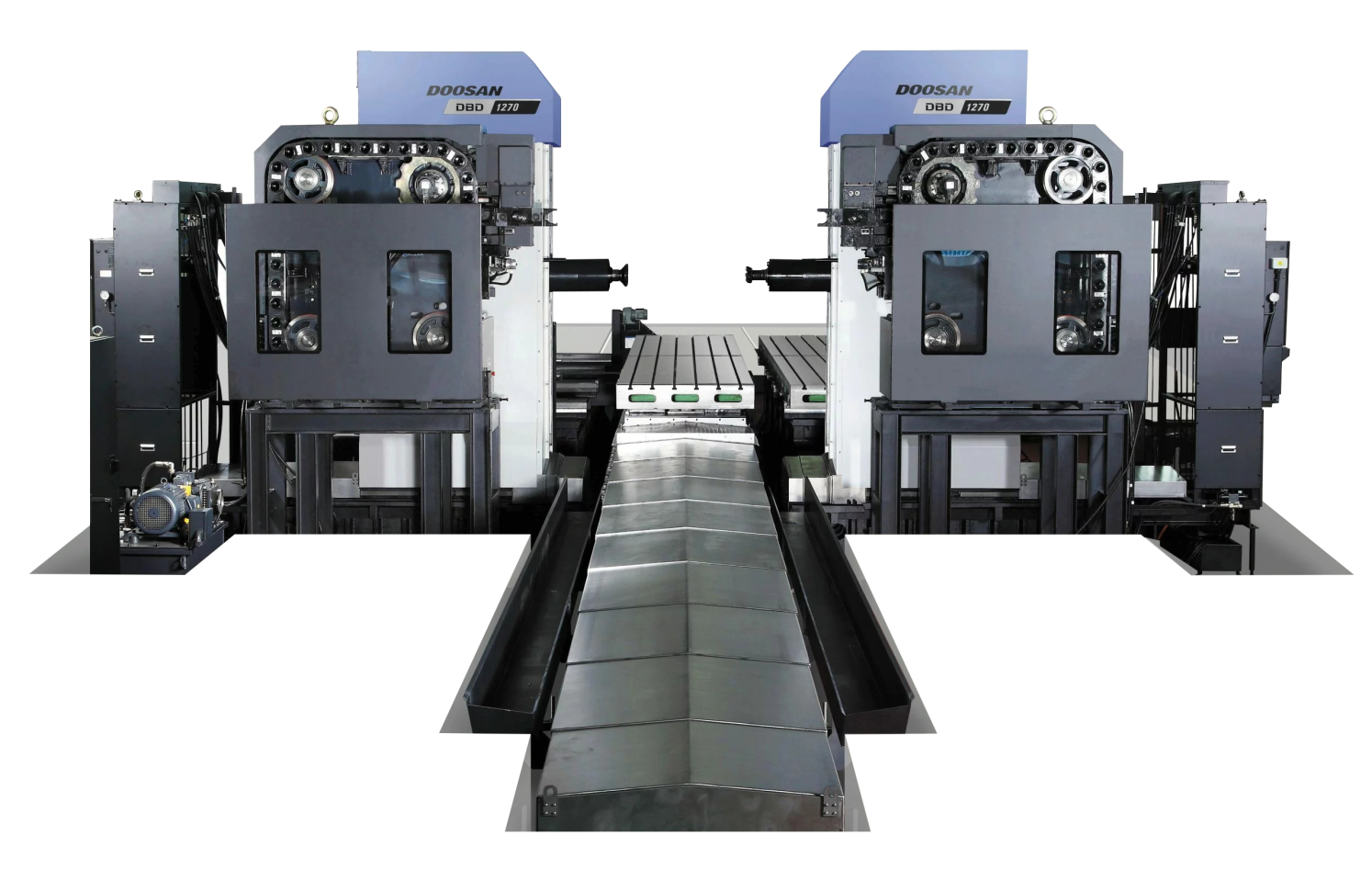

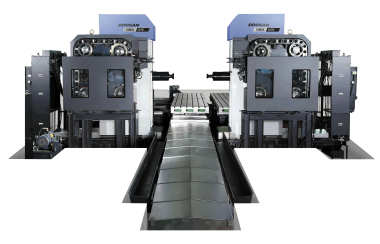

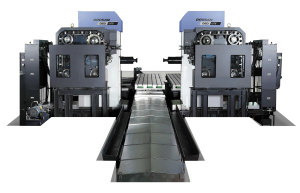

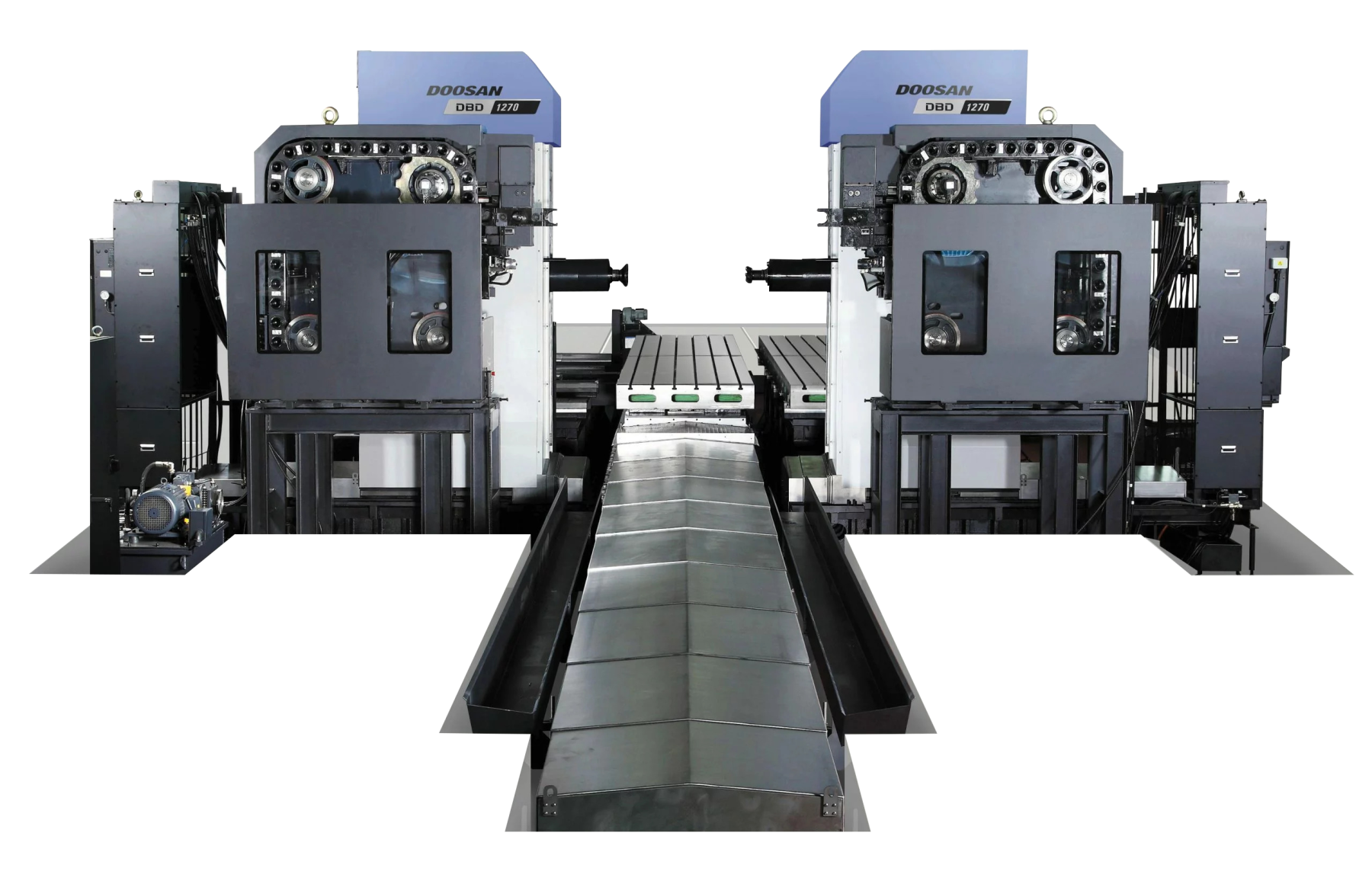

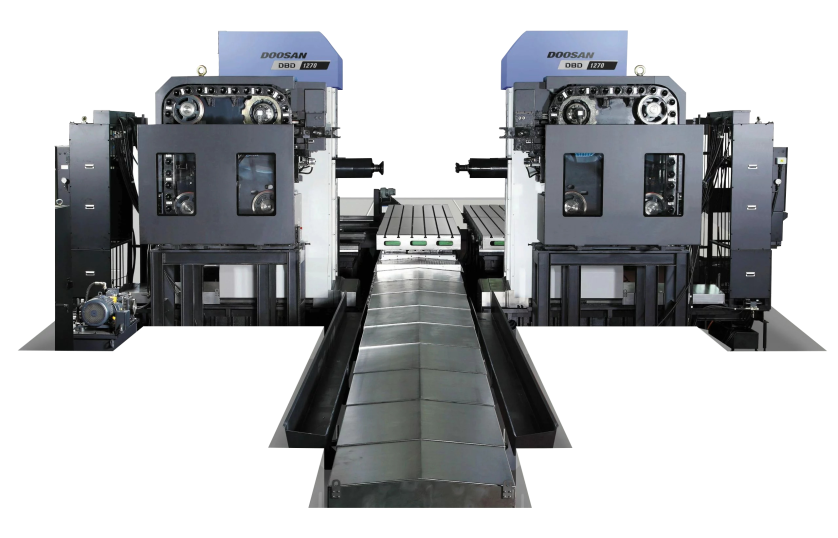

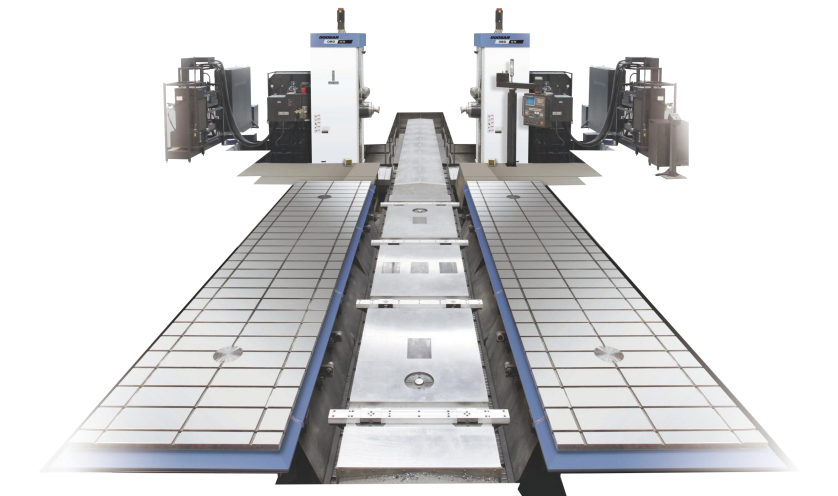

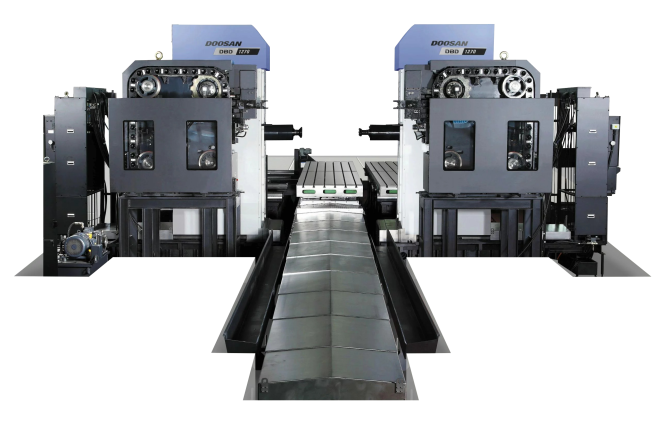

Image representative of Series and may not be the exact model
The Doosan DBD Series is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
