Doosan DBD 1580
or copy link
Technical Specification
X Axis Travel distance | 8000 mm |
---|---|
Y Axis Travel distance | 2000 mm |
Z Axis Travel distance | 450 mm |
Table Length | 8000 mm |
Table Width | 1500 mm |
Max. Table Weight | 10000 kg |
Max. Spindle Speed | 2500 r/min |
Max. Spindle Power | 26 kW |
No. of tool station | 90 |
Product Dimensions
Length | 20900mm |
---|---|
Width | 10000mm |
Height | 6000mm |
Weight | 86000kg |

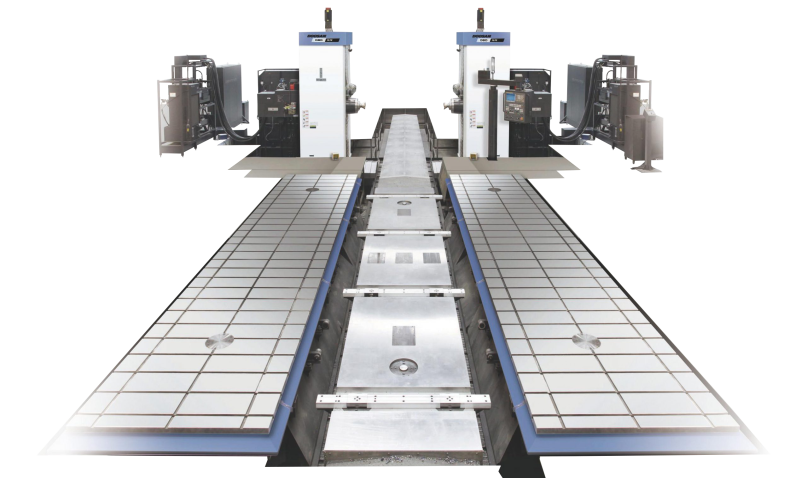

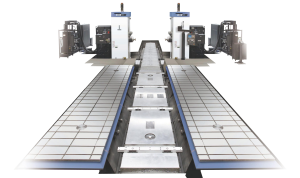

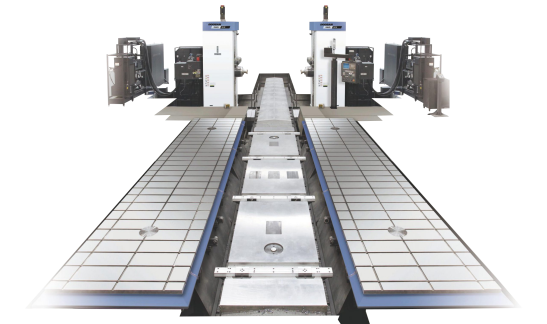

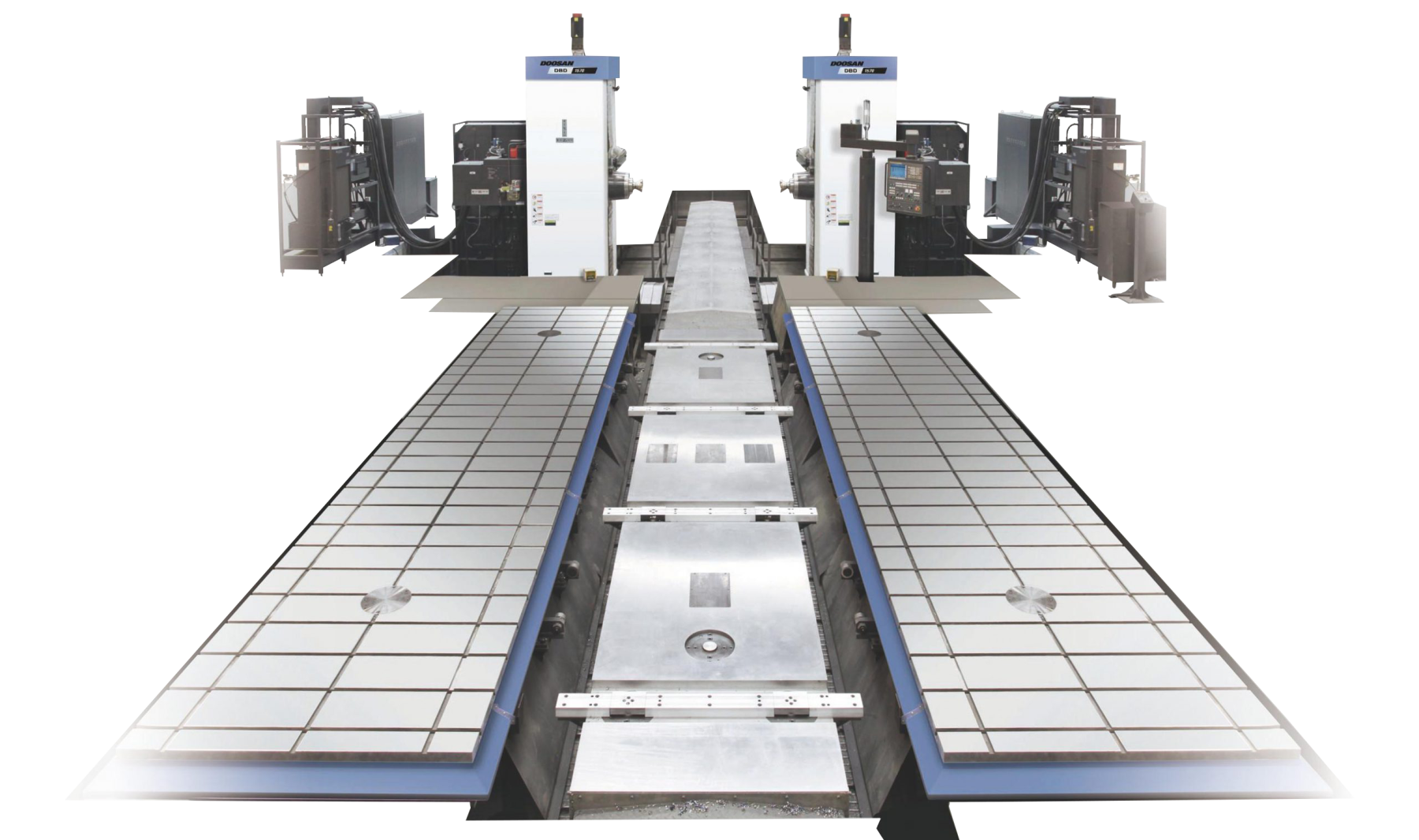

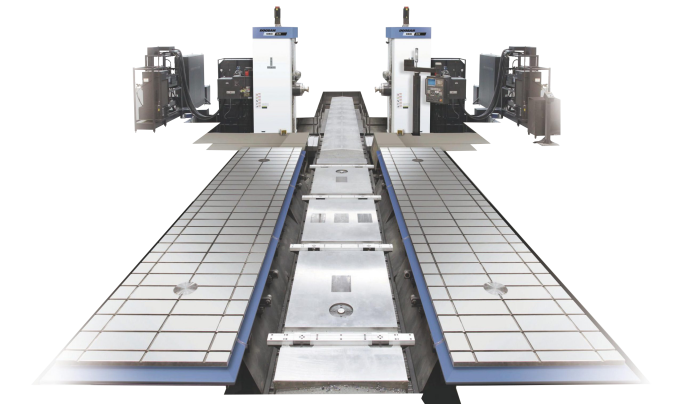

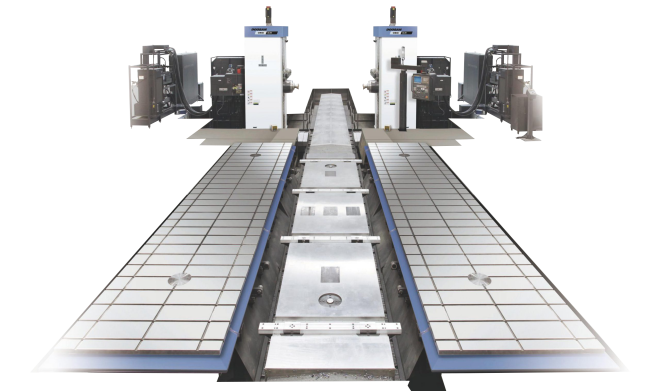

Image representative of Series and may not be the exact model
The Doosan DBD 1580 is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
