Doosan Puma AW II Series

Specialist 2-axis turning centers for high-productivity machining of aluminium wheels

  • Wheel size: up to 24″
  • Max. turning diameter: 650mm
  • Spindle: up to 37kW/2500rpm
Share this series

or copy link

DOOSAN l Aluminum Wheel Solution l PUMA VAW series l Productivity
DOOSAN l Aluminum Wheel Solution l PUMA VAW series l Productivity

Doosan’s AW II series comprises of high-productivity 2-axis turning centers designed for the machining of different-sized aluminium alloy wheels.

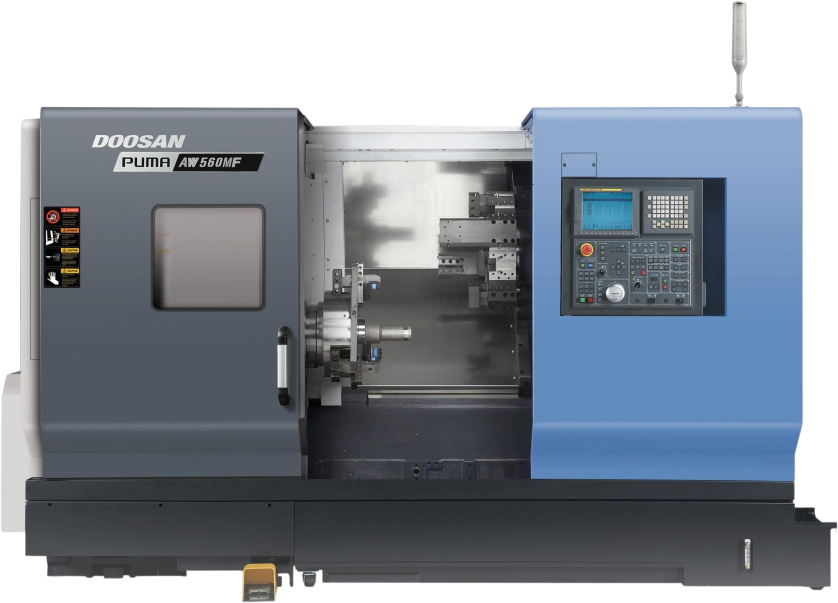

There are three different machine models in the series: the AW 560 II and the AW 660 II as well as the AW 560-MF II which delivers unrivalled Mirror Finish.

Technical Specification

Chuck size 20 - 24inch
Max. Turning Diameter 550 - 650mm
X Axis Rapid Traverse 16m/min
Z Axis Rapid Traverse 20m/min
Max. Spindle Speed 2000 - 2500r/min
Max. Spindle Torque 325 - 538N·m
No. of tool station 12
X Axis Travel distance 362mm
Z Axis Travel distance 720mm

Series Dimensions

Length 3730mm
Width 2000mm
Height 2250mm
Weight 7750 - 8000kg

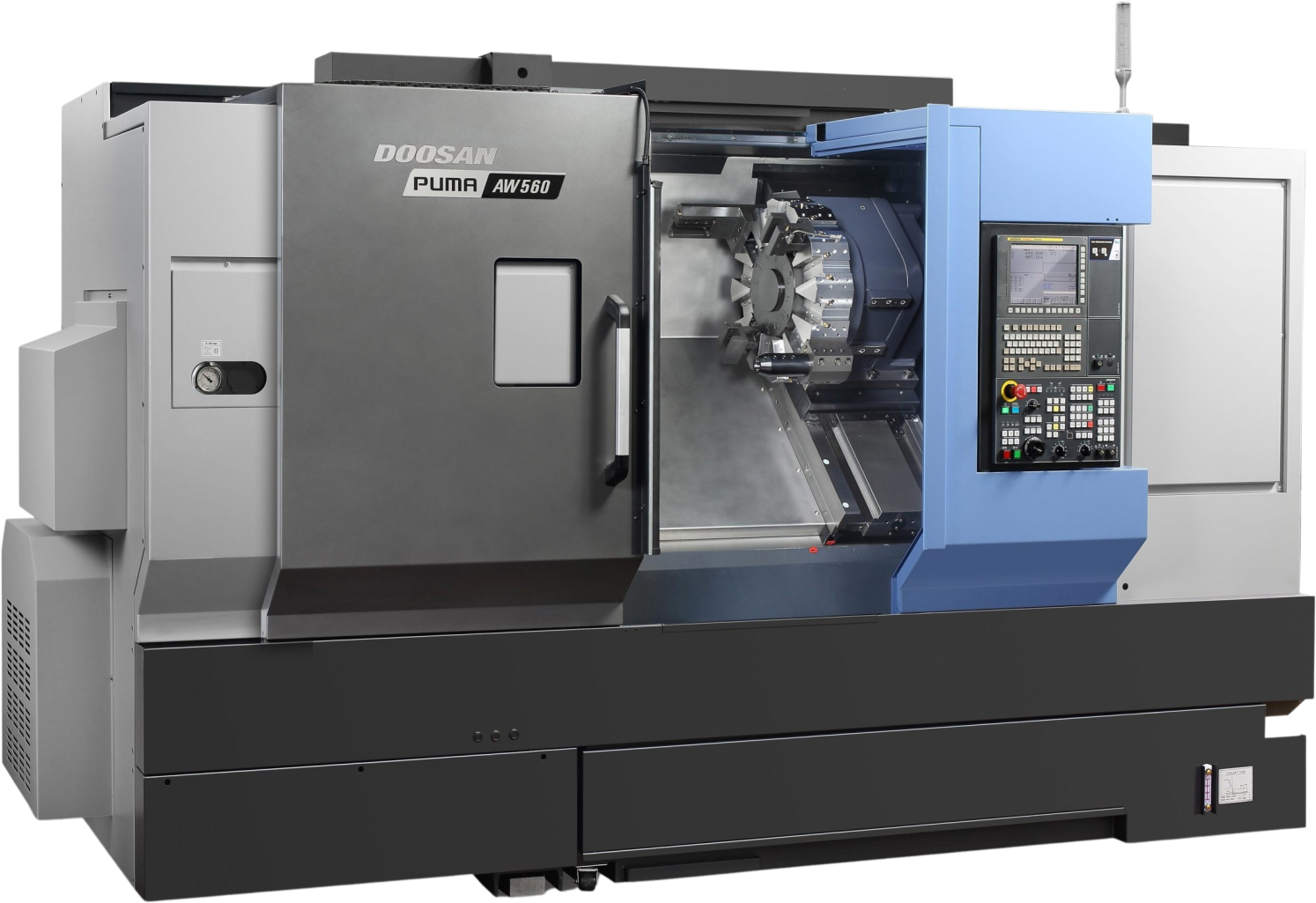

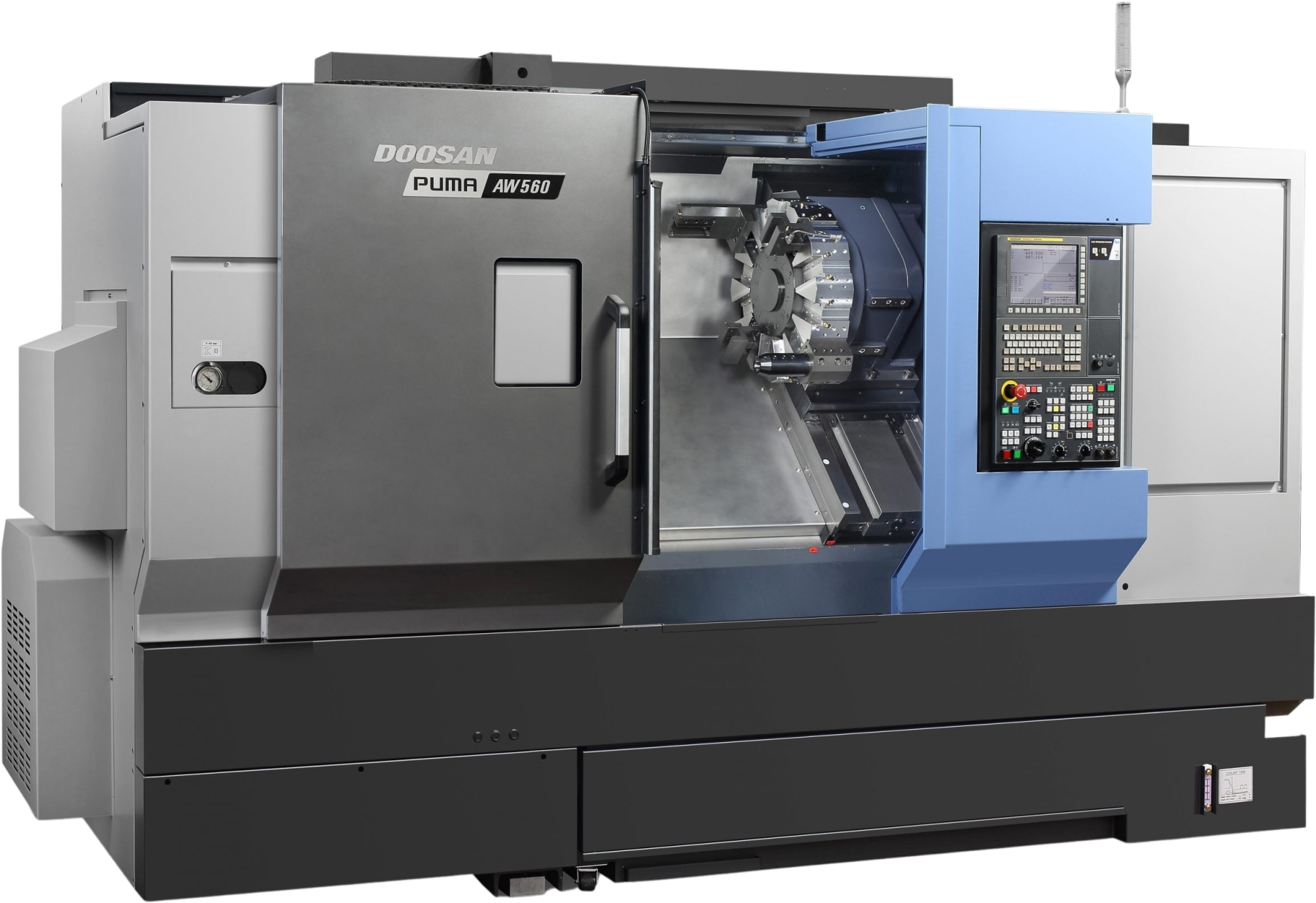

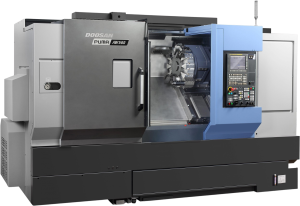

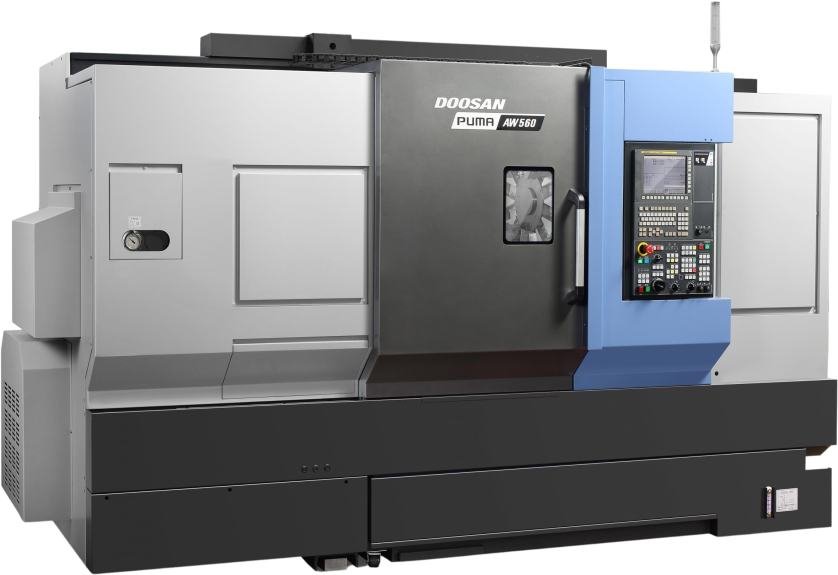

Image representative of Series and may not be the exact model

The Doosan Puma AW II Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
