Alloy Wheel Turning Machines

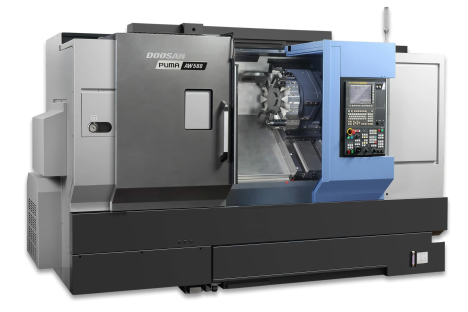

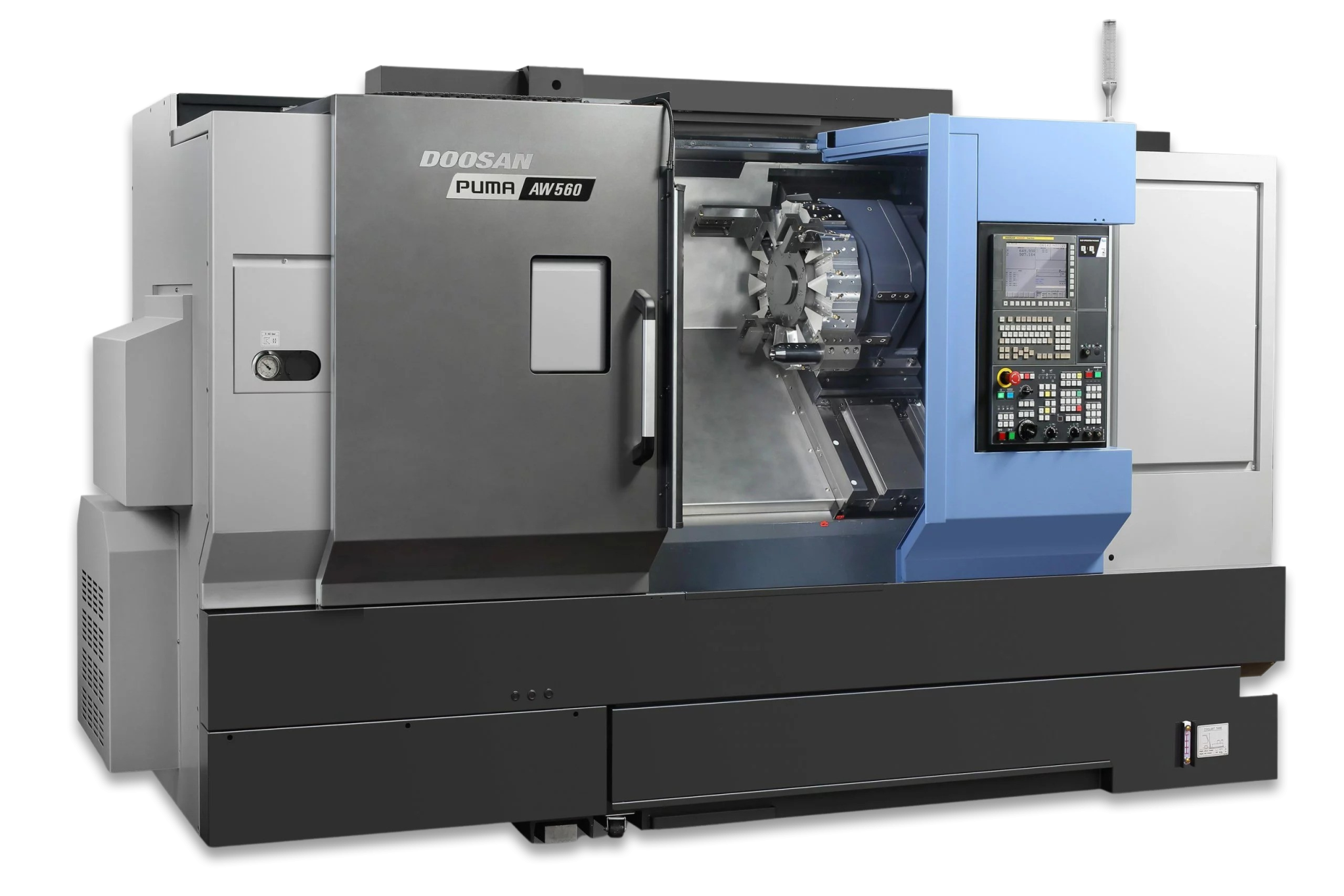

Doosan AW II and VAW are high-productivity turning centres designed for the machining of different-sized aluminium alloy wheels. They deliver high-accuracy cutting at high-speeds and heavy-duty cutting at low speeds.

Find Your Perfect Product

Aluminium Wheel Turning

High-Precision Turning Centres For Machining Alloy Wheels

There are two different machine model types in the series – the 2-axis AW Mk II series and the 4-axis (twin-turret) VAW series.

The AW II series machines are equipped with powerful spindles (up to 37kW/3,000rpm) guaranteeing high stock removal, a fast indexing turret (12-station) and a high-pressure, high-volume coolant system that removes heat from the tool and workpiece ensuring high accuracy, superior finishes and longer tool life.

The VAW series machines feature a high-torque 55kW/2000rpm spindle, and a high-productivity twin turret configuration (6 station + 6 station).

Both the AW II and VAW series are equipped with the Doosan Fanuc i control.

Our Products

Select the machine type or series you’d like to explore, or scroll down for a full list of products in this category, and filter by the factors that matter to you.

Machine Series

  • Wheel size: up to 24″
  • Max. turning diameter: 650mm
  • Spindle: up to 37kW/2500rpm
View Series
  • Wheel size: up to 28″
  • Max. turning diameter: 711mm
  • Spindle: 55kW/2000rpm
  • Double servo-driven turrets
View Series

All Alloy Wheel Turning Machines

Showing 6 products

  • 28” chuck
  • 711 mm max turning diameter
  • 440 mm max turning length
View machine
  • 27.5” chuck
  • 720 mm max turning diameter
  • 340 mm max turning length
View machine
  • 24” chuck
  • 790 mm max turning diameter
  • 350 mm max turning length
View machine
  • 24” chuck
  • 650 mm max turning diameter
  • 12ea tool stations
View machine
  • 20” chuck
  • 550 mm max turning diameter
  • 12ea tool stations
View machine
  • 20” chuck
  • 550 mm max turning diameter
  • 12ea tool stations
View machine
