Doosan BM Series
Doosan BM series of large double-column machining centers
- Low vibration built-in spindle
- Integrated thermal compensation system
- Powerful 12,000rpm spindle
- Large work-piece table (up to 4,000mm x 2,500mm)
or copy link
The BM machining center range is designed for the high-accuracy machining of large heavy workpieces.

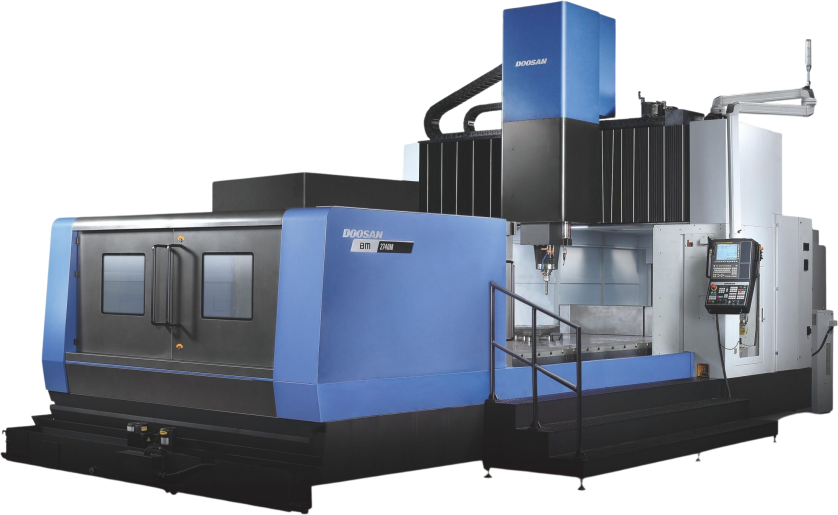

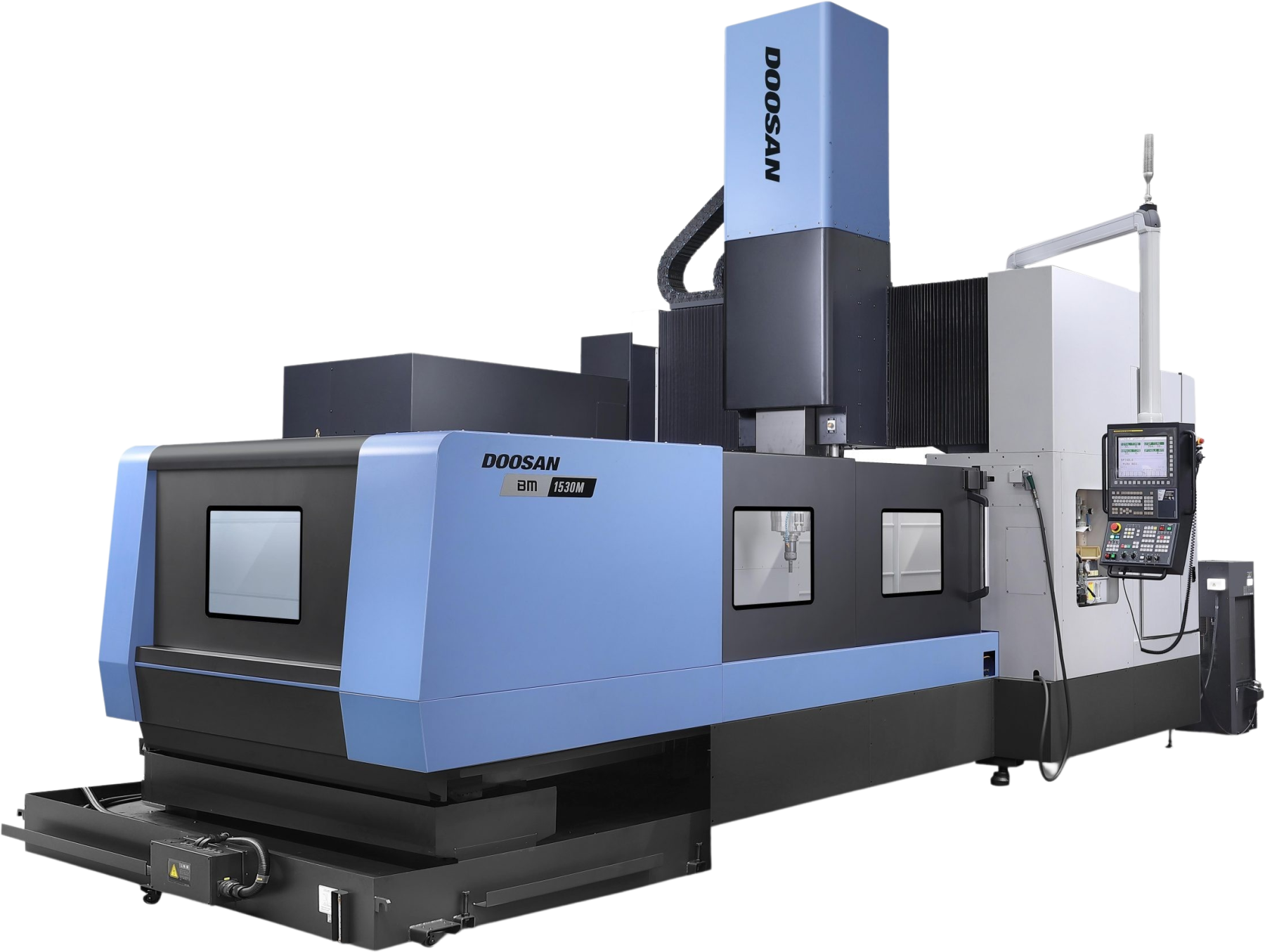

There are 3 machines in the range – BM 1530M, BM 2035M and BM 2740M – and all are equipped with low-vibration, long-nose, built-in spindles (30kW/12,000rpm), with a face and taper spindle/tooling configuration.
To maintain accuracy the machines feature a thermal displacement compensation system with sensors located around their spindle and structure, and roller type LM guideways and linear scales that ensure high precision machining.
|Distance between Columns||1700 - 2700mm|
|X Axis Travel distance||3000 - 4000mm|
|Y Axis Travel distance||1550 - 3500mm|
|Z Axis Travel distance||500 - 800mm|
|Max. Workpiece Height||580 - 1000mm|
|Max. Workpiece Weight||3000 - 15000kg|
|X Axis Rapid Traverse||12 - 16m/min|
|Y Axis Rapid Traverse||16 - 24m/min|
|Z Axis Rapid Traverse||16 - 36m/min|
|Max. Spindle Speed||8000 - 12000r/min|
|Max. Spindle Power||22 - 30kW|
|Max. Spindle Torque||204 - 600N·m|
|Table Length||3000 - 4000mm|
|Table Width||1350 - 2500mm|
|Max. Table Weight||3000 - 15000kg|
|Length||5542 - 6637mm|
|Width||10825 - 13459mm|
|Height||3760 - 4770mm|
|Weight||29000 - 47990kg|

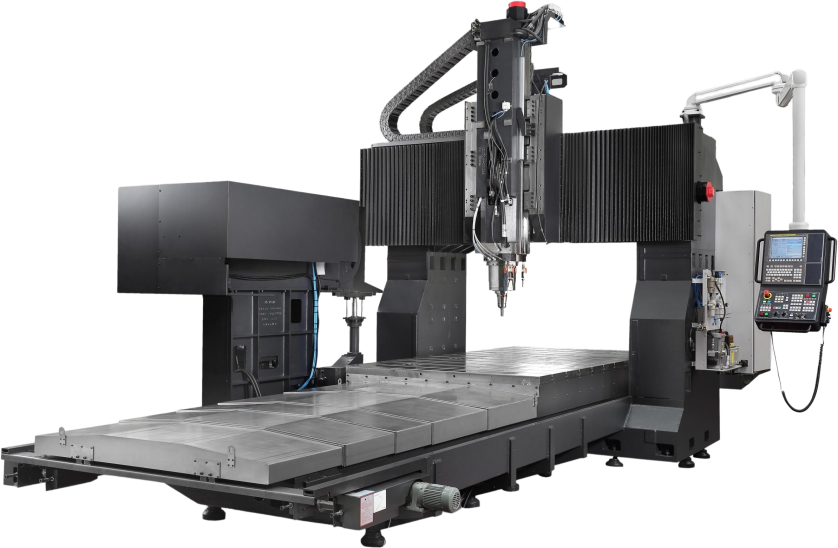

Image representative of Series and may not be the exact model
The Doosan BM Series is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
