Doosan BM 3540P

Share this product

or copy link

Technical Specification

Distance between Columns 2700 mm
X Axis Travel distance 4000 mm
Y Axis Travel distance 3500 mm
Z Axis Travel distance 500 mm
Max. Workpiece Height 660 mm
Max. Workpiece Weight 3000 kg
X Axis Rapid Traverse 16 m/min
Y Axis Rapid Traverse 24 m/min
Z Axis Rapid Traverse 36 m/min
Max. Spindle Speed 12000 r/min
Max. Spindle Power 22 kW
Max. Spindle Torque 204 N·m
Table Length 4000 mm
Table Width 2500 mm
Max. Table Weight 3000 kg

Product Dimensions

Length 6524mm
Width 10825mm
Height 3840mm
Weight 41000kg

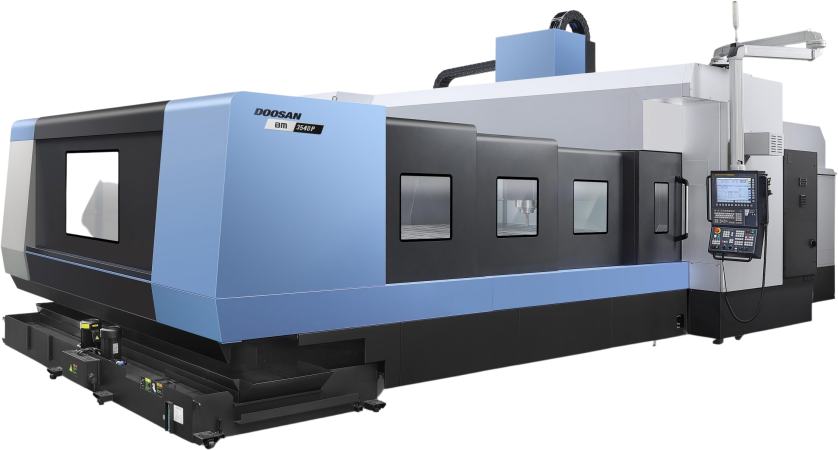

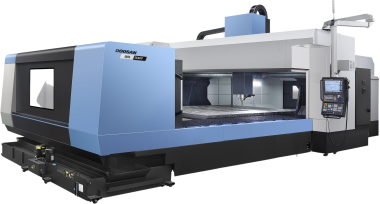

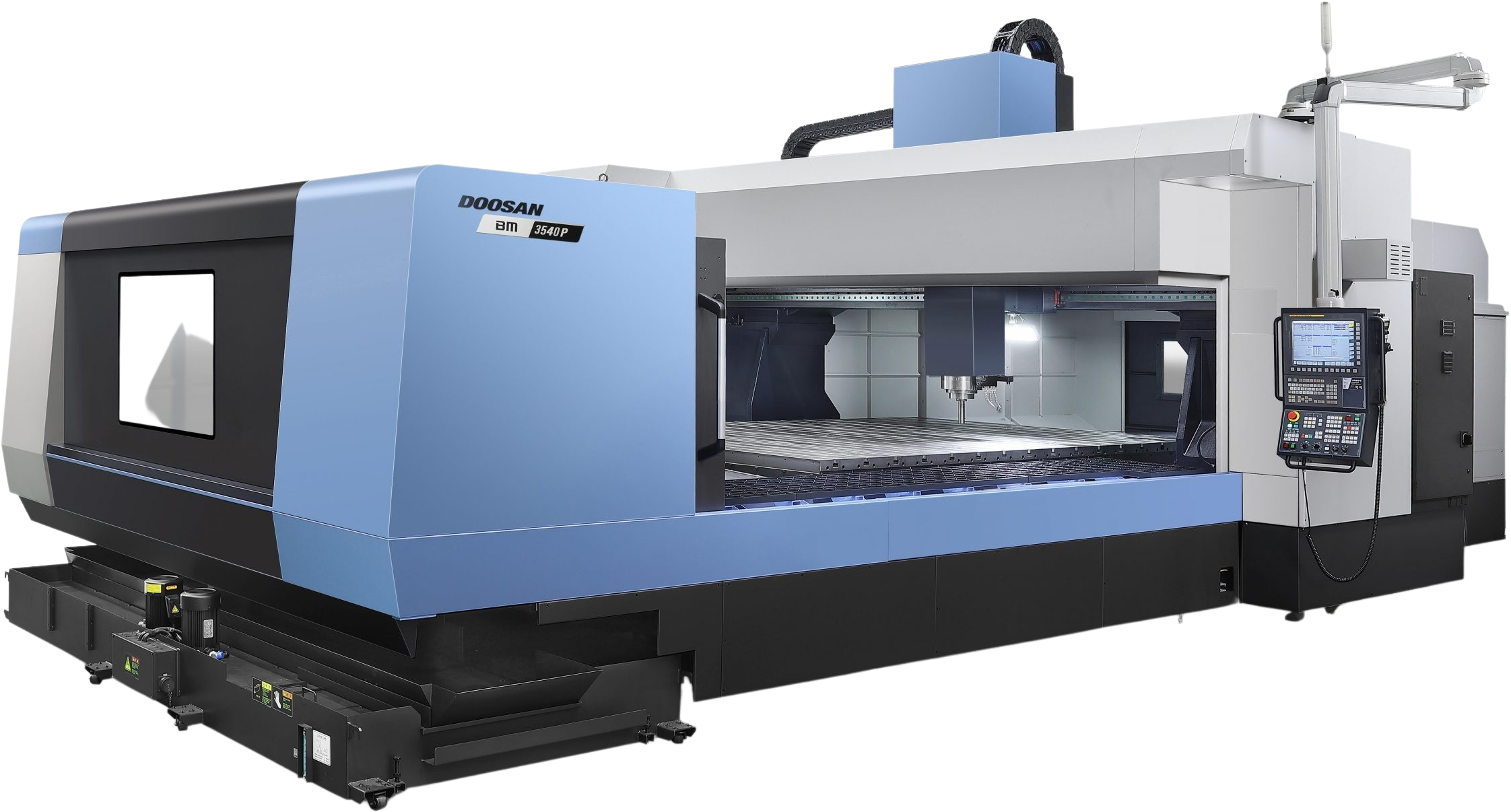

Image representative of Series and may not be the exact model

The Doosan BM 3540P is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
