Doosan DBM Series

The DBM is Doosan’s heavy duty bridge mill

  • X-Axis Travel Range - 3,250 - 5,250mm
  • Y-Axis Travel Range - 2,500 - 3,000mm
  • Z-Axis Travel - 800 - 1,100mm
Share this series

or copy link

Doosan DBM series | Double Column Machining Center
Doosan DBM series | Double Column Machining Center

This strong, stable machine is ideal for oversized die mold applications, and has an auto attachment changer making it incredibly versatile. This heavy duty bridge mill includes a 50 taper, 8,000 RPM RAM spindle with a built in motor that outputs 55 kW and 1,009 Nm of torque at just 350 RPM.

Technical Specification

Distance between Columns 2000 - 3000mm
X Axis Travel distance 3250 - 8250mm
Y Axis Travel distance 2500 - 3500mm
Z Axis Travel distance 800 - 1100mm
Max. Spindle Speed 6000r/min
Max. Spindle Torque 1009N·m
Table Length 1500 - 2500mm
Table Width 3000 - 8000mm
No. of tool station 40

Series Dimensions

Length 6730 - 8600mm
Width 5100mm
Height 8800 - 19500mm
Weight 33000 - 70000kg

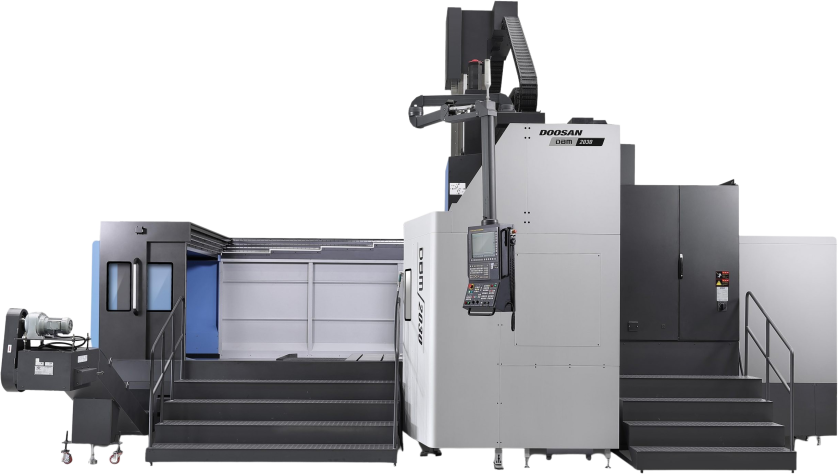

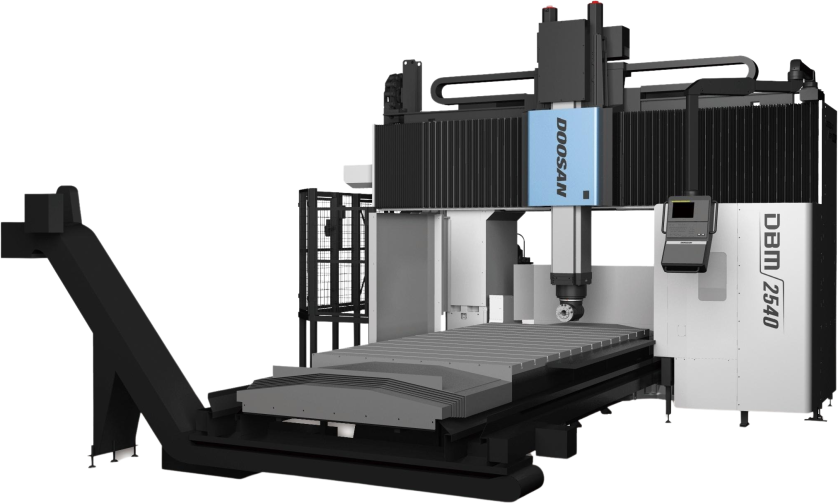

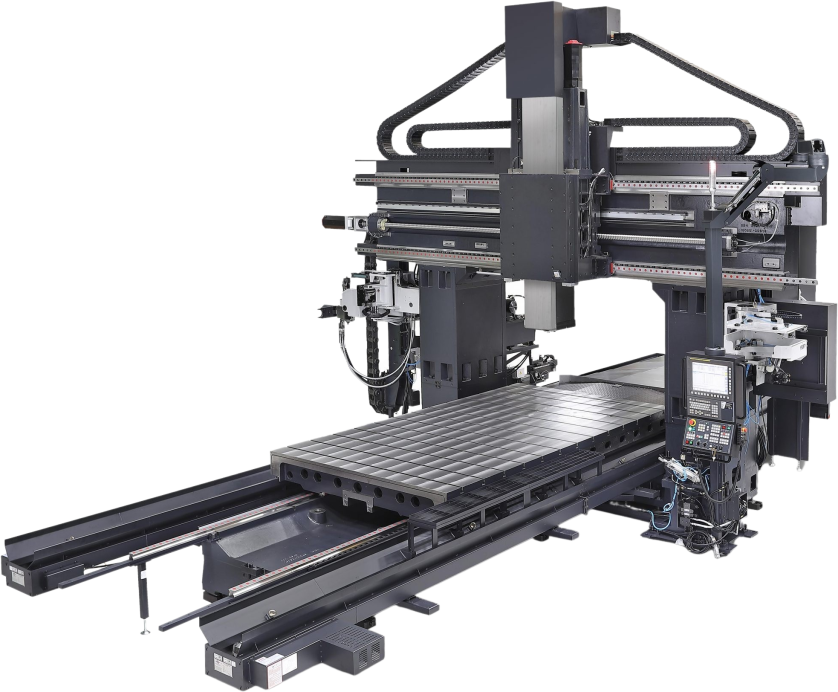

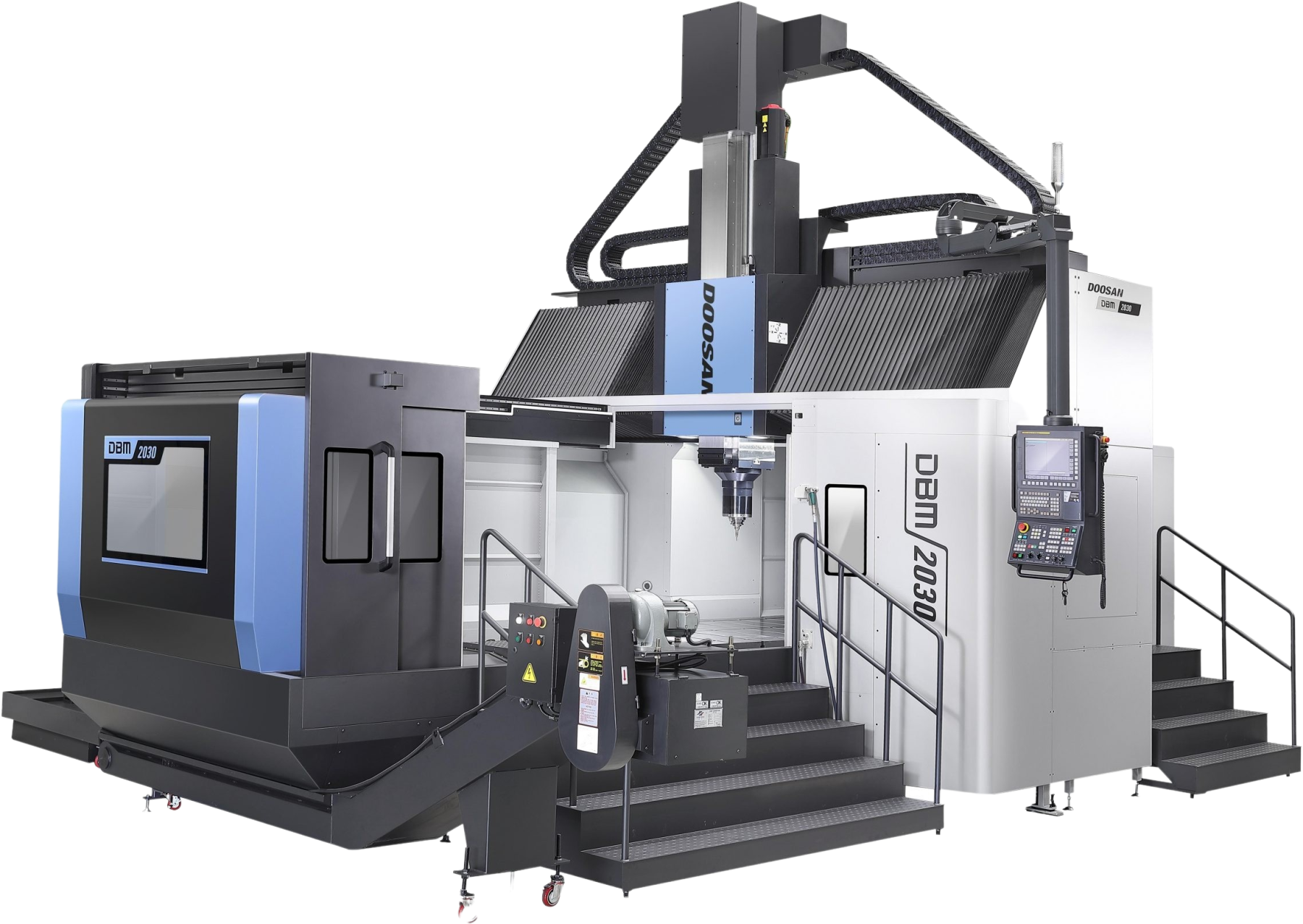

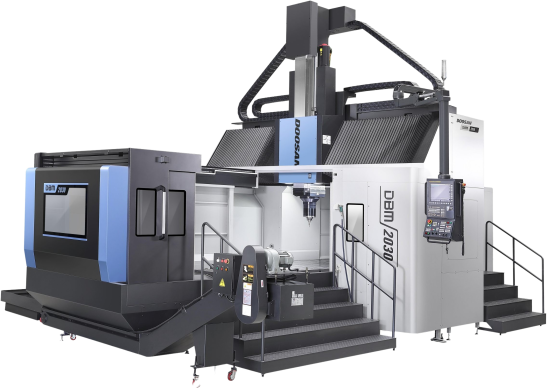

Image representative of Series and may not be the exact model

The Doosan DBM Series is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
