Doosan T Series
High speed, high productivity tapping Center, ideal for automotive and IT industries components manufacturers.
- High reliability, fast processing
- High speed, high productivity (best in class)
- Light to heavy duty cutting
- Enhanced stability and user convenience
or copy link
The DNS T series high-speed tapping Centres deliver excellent accuracy and cutting performance to help customers improve their productivity. T Series machines have good sized working envelopes, rapid rates on their X, Y and Z axis and, depending upon the model, different spindle options. The T Series delivers excellent machining performance from light to heavy duty cutting and offers a high level of accuracy and reliability over long periods. In addition to the standard size machine, an extended type T4000L is also available for larger parts and applications requiring a rotary table.
|X Axis Travel distance||520 - 700mm|
|Y Axis Travel distance||360 - 400mm|
|Z Axis Travel distance||350mm|
|X Axis Rapid Traverse||48 - 56m/min|
|Y Axis Rapid Traverse||48 - 56m/min|
|Z Axis Rapid Traverse||48 - 56m/min|
|Max. Spindle Speed||12000 - 24000r/min|
|Max. Spindle Power||6 - 13kW|
|Max. Spindle Torque||17 - 82N·m|
|Table Length||650 - 850mm|
|Table Width||375 - 400mm|
|Max. Table Weight||200 - 300kg|
|No. of tool station||24|
|Length||2463 - 3684mm|
|Width||1600 - 2050mm|
|Height||2380 - 2670mm|
|Weight||2800 - 5200kg|

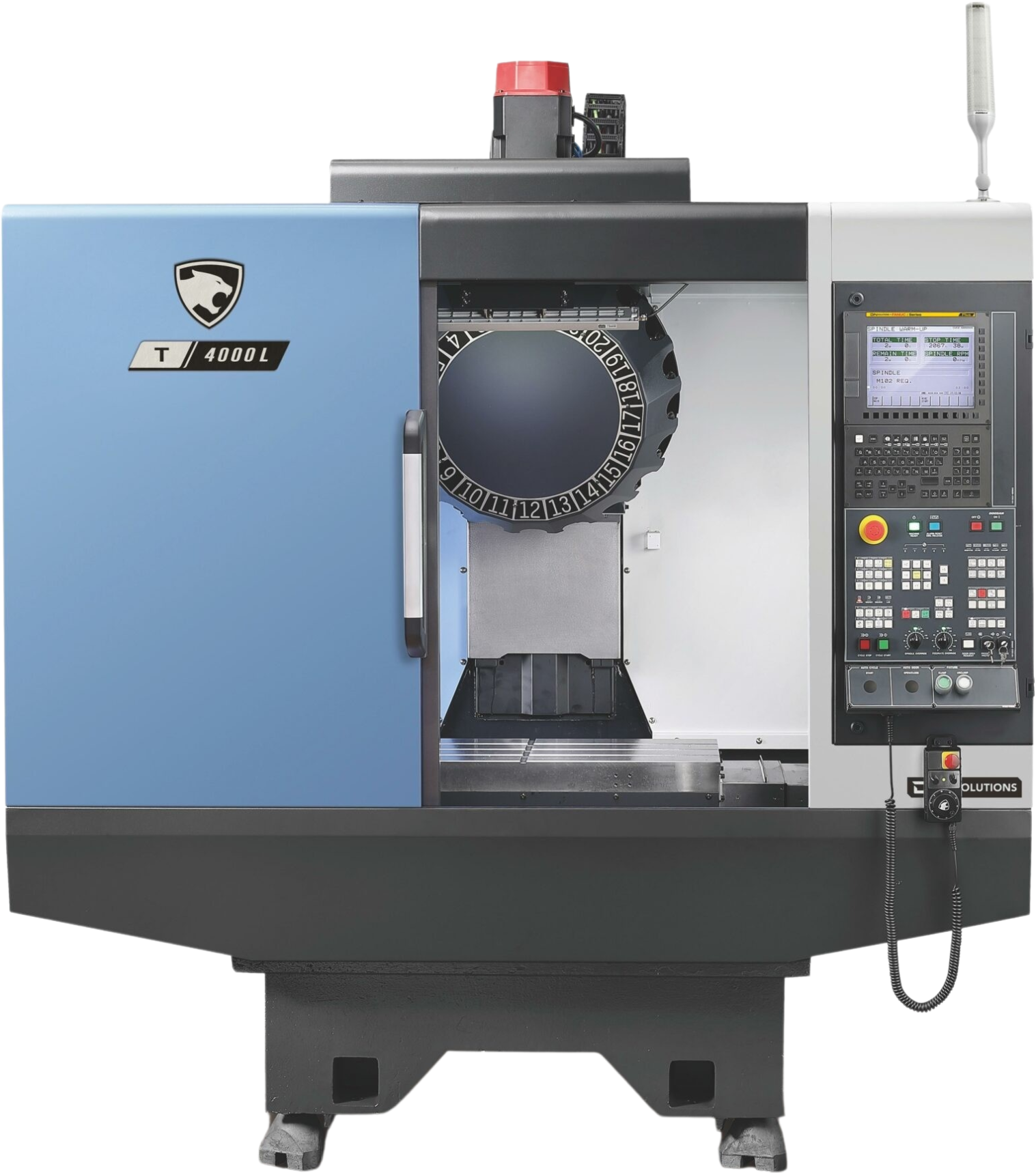

Image representative of Series and may not be the exact model
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
