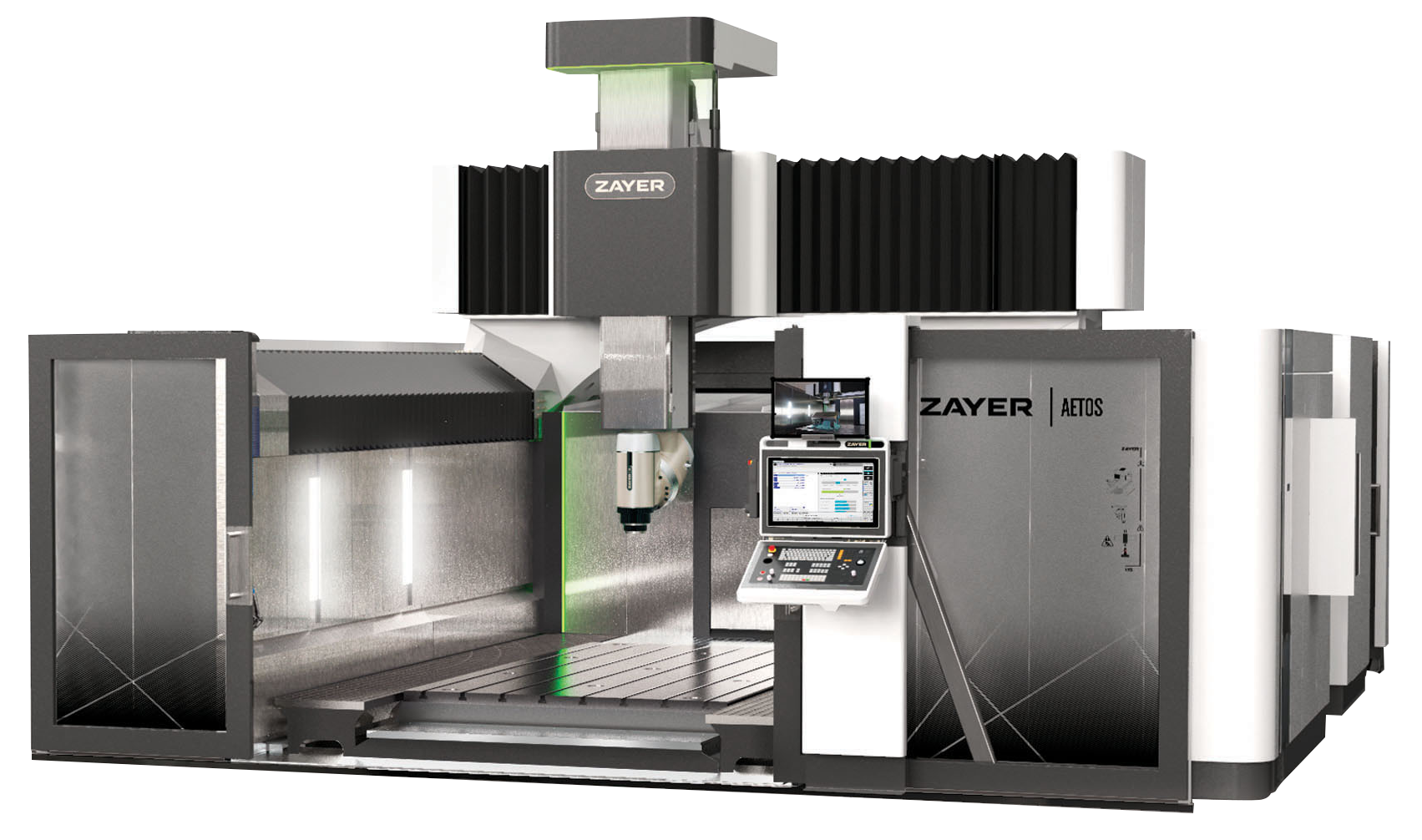

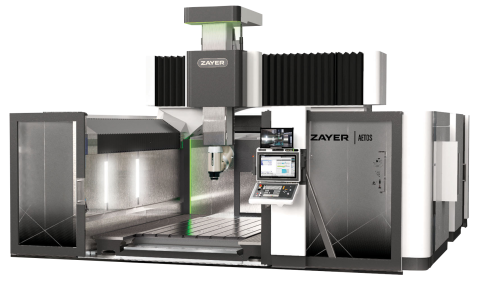

Gantry-type milling machine with a moving bridge, fixed table and cross beam.

A large, flexible milling machine with a high-torque or high-speed spindle option.

Share this product

or copy link

Zayer Aetos
Zayer Aetos

Technical Specification

X-axis up to 5000mm
Y-axis up to 4000mm
Z-axis up to 1500mm
Table length up to 4500mm
Table width up to 4000mm
Table load 15,000kg
Rapids 35m/min
Feed rates up to 30m/min
Spindle power/speed up to 43kW/6000rpm (high torque); up to 33kW/18,000rpm high-speed
Drives X-axis double motor and pinion OR ball screw
Drives Y- and Z-axis ball screw
Positional accuracy 0.008mm
Repeatability accuracy 0.005mm
Tool magazine up to 60 tools
Spindle heads 45° automatic head*
Control Heidenhain TNC 640; Siemens, Fanuc, Mitsubishi controls available
Chip conveyor Yes
Coolant Tank 22L/5bar


Other spindle head options available*

The Zayer AETOS is compatible with Fanuc, Siemens, Heidenhain and Mitsubishi.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
