Zayer ALTEA

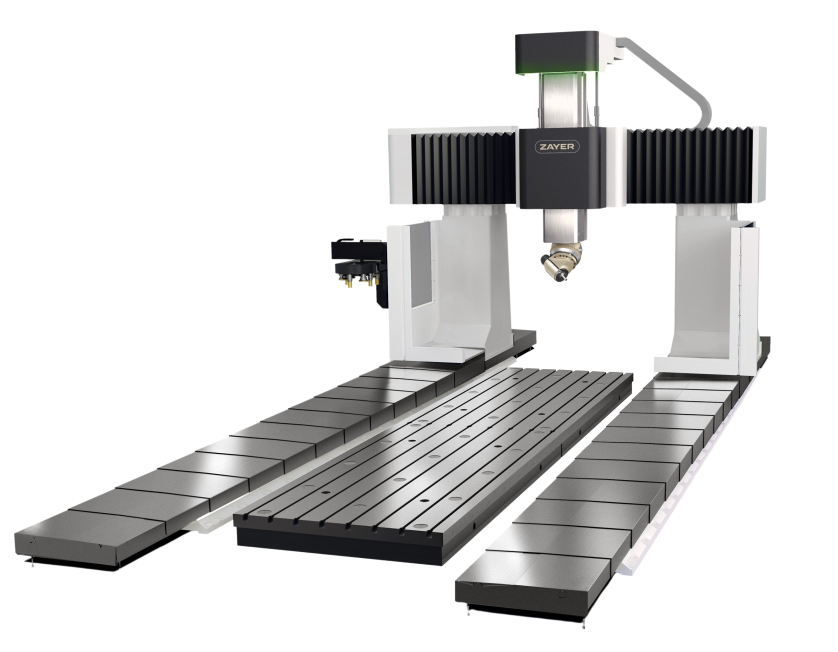

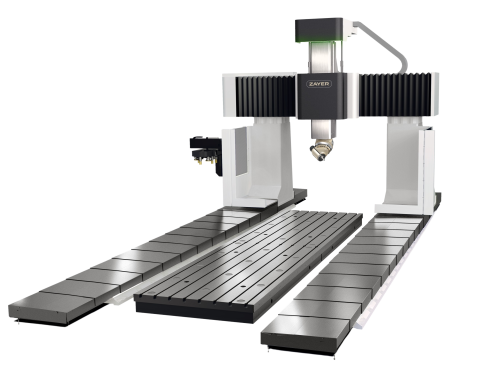

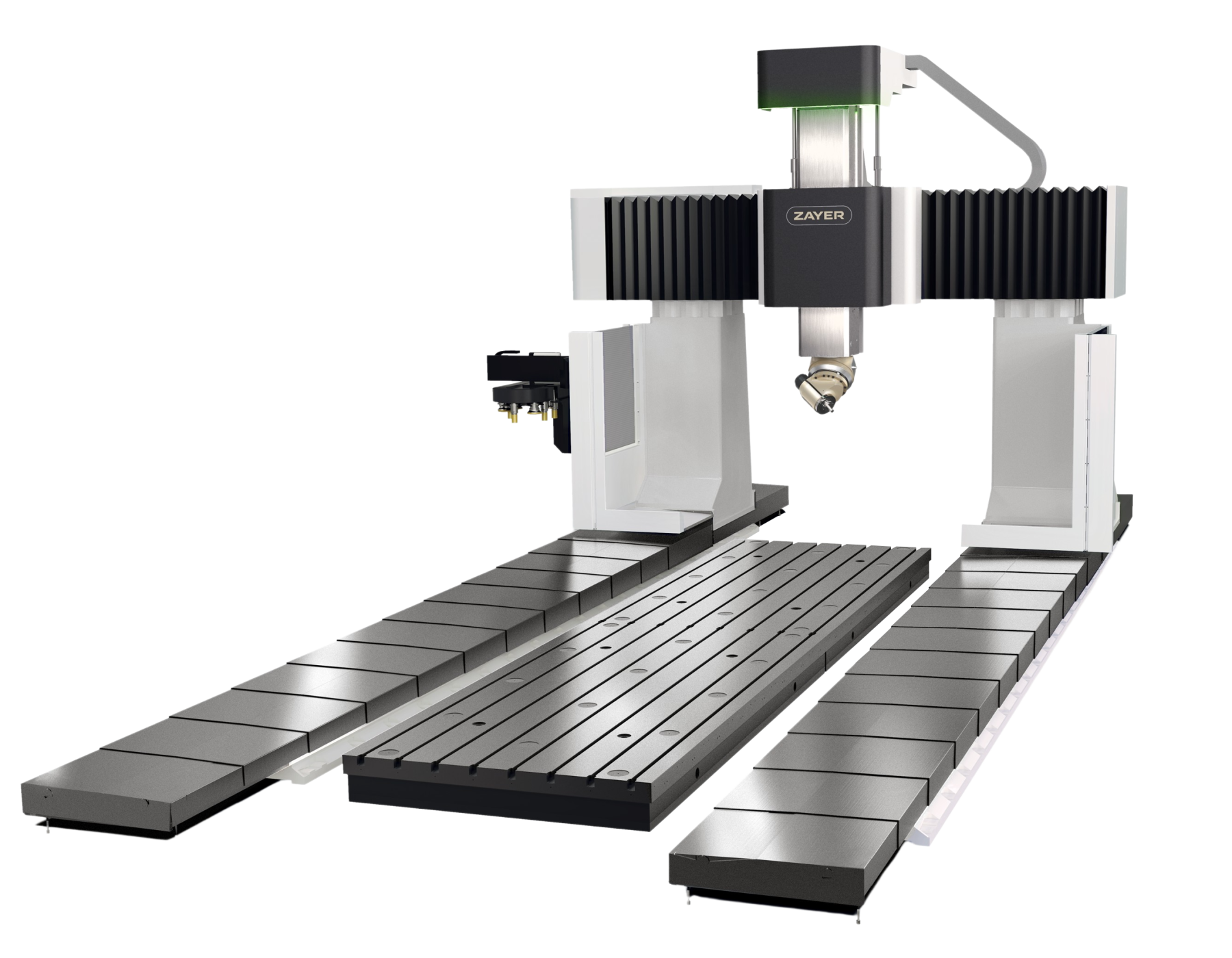

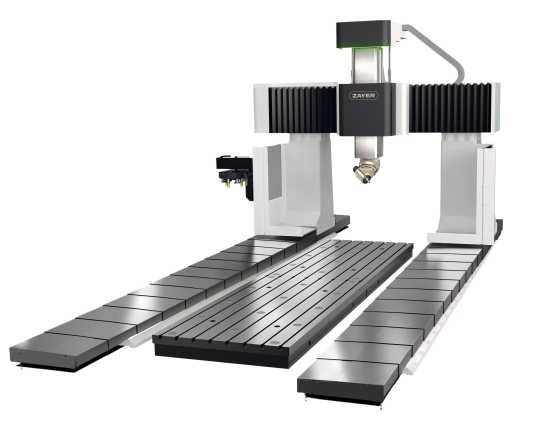

Gantry-type milling machine with a moving bridge, fixed table and cross beam.

A large-capacity, flexible milling machine with a high-torque or high-speed spindle option and a large worktable.

Share this product

or copy link

Zayer Altea
Zayer Altea

Technical Specification

X-axis up to 20,000mm
Y-axis up to 4350mm
Z-axis up to 1500mm
Distance between columns up to 3750mm
Table length up to 20,500mm
Table width up to 3000mm
Rapids 40m/min
Feed rates up to 35m/min
Spindle power/speed up to 43kW/6000rpm (high-torque); up to 33kW/18,000rpm high-speed
Drives X-axis double motor and pinion
Drives Y- and Z-axis ball screw
Positional accuracy 0.008mm
Repeatability accuracy 0.005mm
Tool magazine up to 60 tools
Spindle heads 45° automatic head*
Control Heidenhain TNC 640; Siemens, Fanuc, Mitsubishi controls available
Chip conveyor Yes
Coolant Tank 22L/5bar

Options

Other spindle head options available*

The Zayer ALTEA is compatible with Fanuc, Siemens, Heidenhain and Mitsubishi.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
