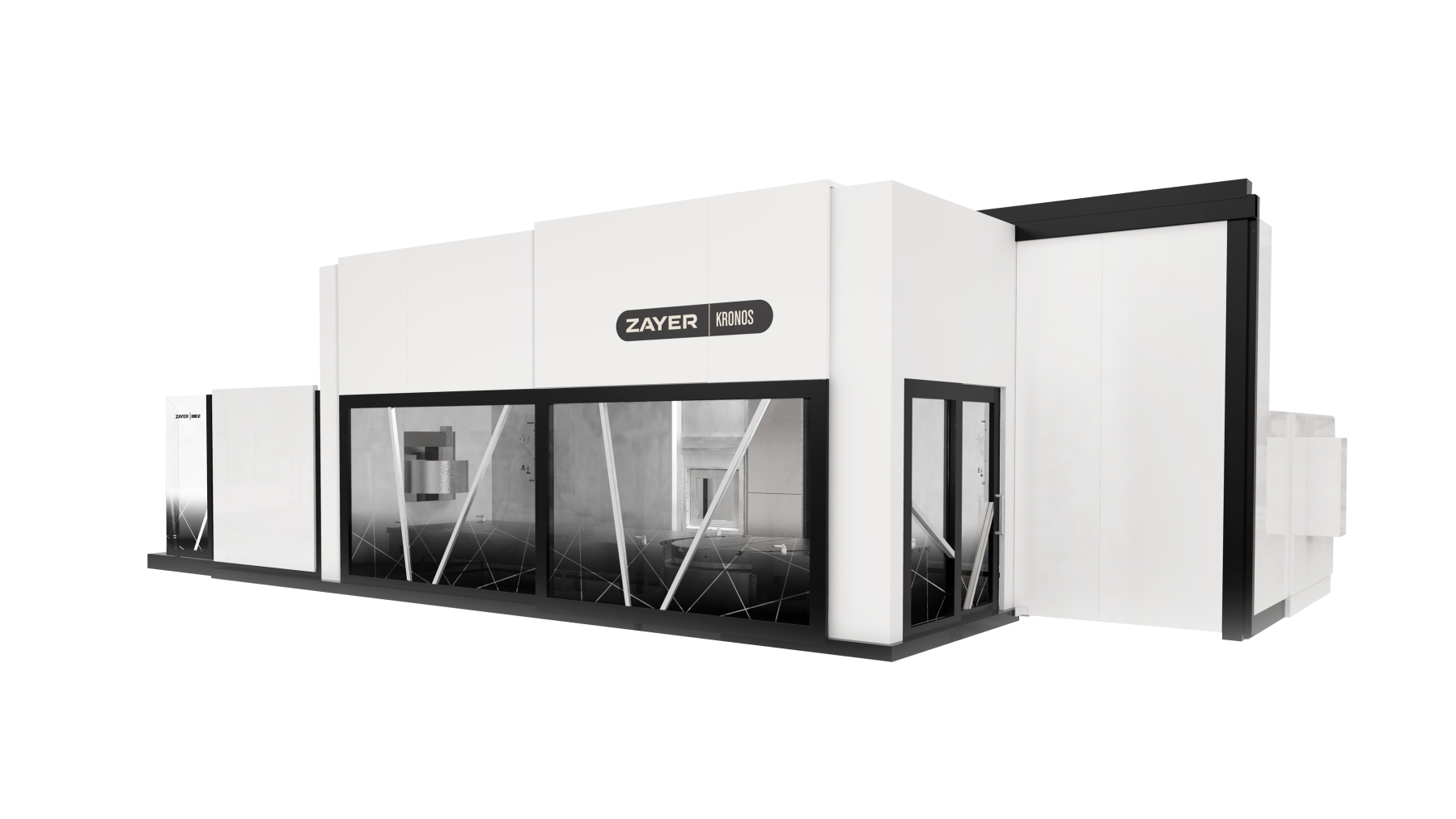

Zayer KRONOS
Large-capacity, moving-column milling machine.
A large-capacity moving-column milling machine with a long X-axis, powerful spindle and fast rapids.
or copy link
Technical Specification
X-axis | up to 7000mm |
---|---|
Y-axis | up to 2000mm |
Z-axis | up to 2000mm |
Rapids | 35m/min |
Feed rates | up to 30m/min |
Spindle power/speed | up to 40kW/6000rpm |
Drives X-axis | double motor and pinion |
Drives Y- and Z-axis | ball screw |
Positional accuracy | 0.008mm |
Repeatability accuracy | 0.005mm |
Tool magazine | up to 80 tools |
Spindle heads | 45° automatic head* |
Control | Heidenhain TNC 640; Siemens, Fanuc, Mitsubishi controls available |
Chip conveyor (goose neck) | Yes |
Coolant Tank | 22L/5bar |
Enclosure with ceiling | Yes |
Options
Other spindle head options available* |
Rotary table |
Fixed floor table |
The Zayer KRONOS is compatible with Fanuc, Siemens, Heidenhain and Mitsubishi.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
