Puma VTR Series

DN Solutions (formerly Doosan) VTR vertical ram-type lathes

Puma VTR Series Description

DN Solutions’ VTR vertical ram-type lathes are rigidly designed and built, and have a maximum turning diameter of 3000mm.

The box guideway machines feature powerful ram-type spindles and large diameter cross taper roller bearings for all heavy-duty machining operations as well as servo-driven ATCs with a rapid and smooth tool change.

There are four different sized machines in the VTR series – the VTR 1216, VTR 1620, VTR 2025 and VTR 2530. The machines have milling/driven tool capability (up to 22kW/3000rpm) and high-efficiency chip evacuation and management systems.

Product specifications

Doosan Puma VTR2025 Ram Type Vertical Borers

Puma VTR2025M

View
Doosan Puma VTR2025 Ram Type Vertical Borers

Puma VTR2025

View
Doosan Puma VTR1216FM Ram Type Vertical Borers

Puma VTR1620M

View
Doosan Puma VTR1216FM Ram Type Vertical Borers

Puma VTR1620

View
Doosan Puma VTR1216FM Ram Type Vertical Borers

Puma VTR1216M

View
Doosan Puma VTR1216FM Ram Type Vertical Borers

Puma VTR1216FC

View
Doosan Puma VTR1216FM Ram Type Vertical Borers

Puma VTR1216FM

View
Doosan Puma VTR1216F Ram Type Vertical Borers

Puma VTR1216F

View

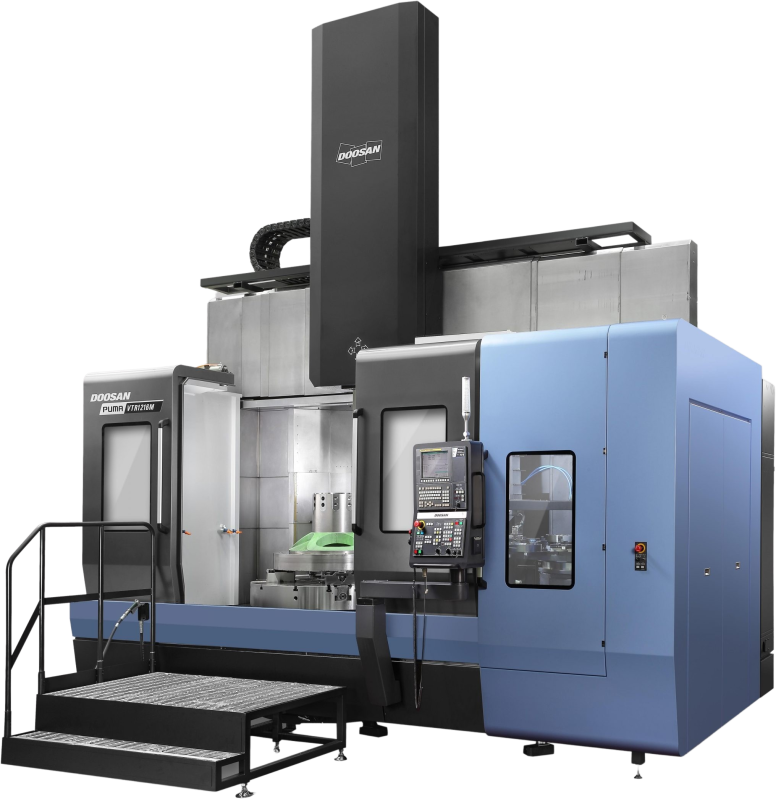

Doosan Puma VTR1216 Ram Type Vertical Borers

Puma VTR1216

View

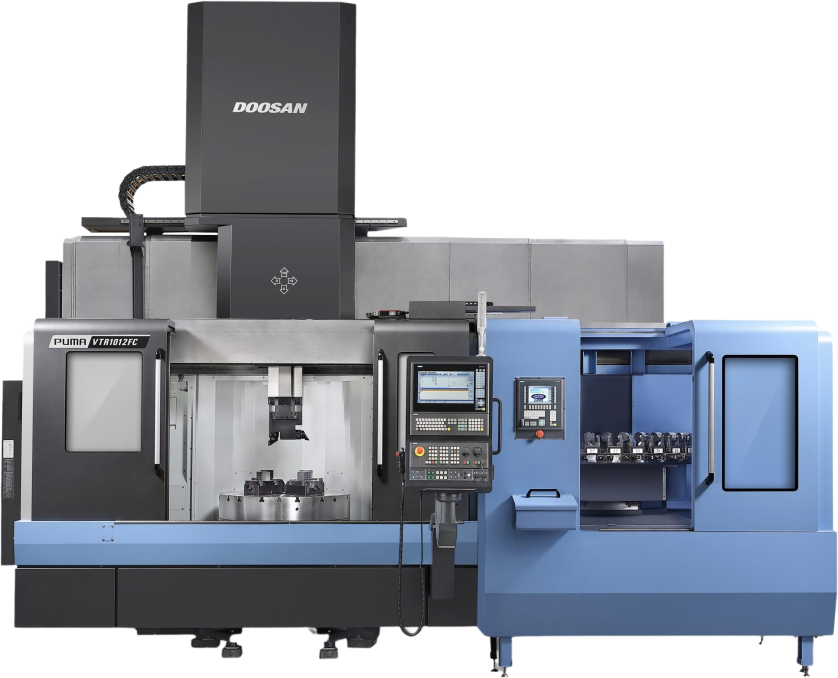

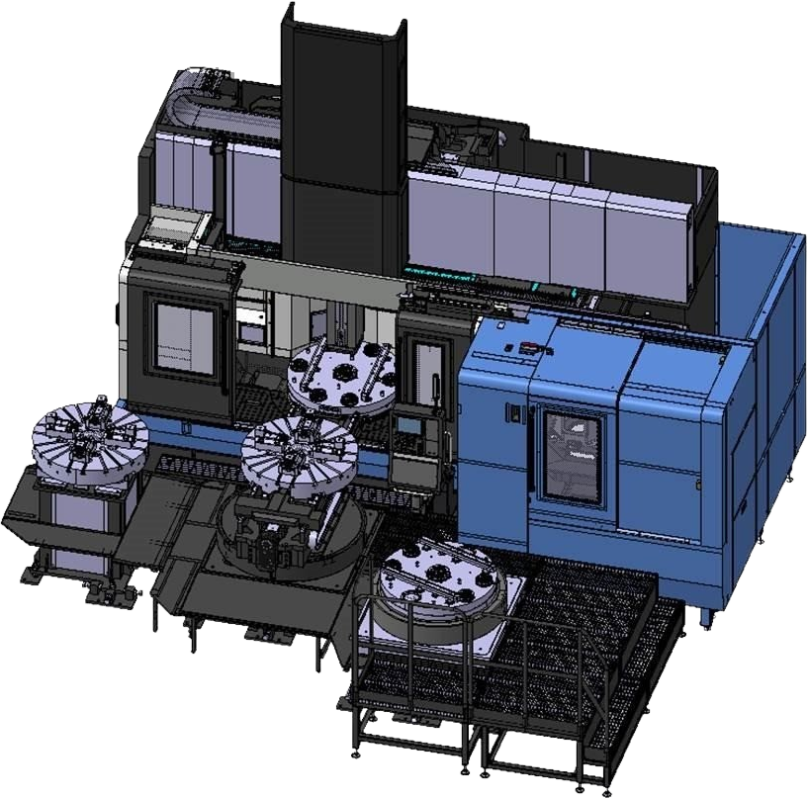

Doosan Puma VTR1012FC Ram Type Vertical Borers

Puma VTR1012FC

View

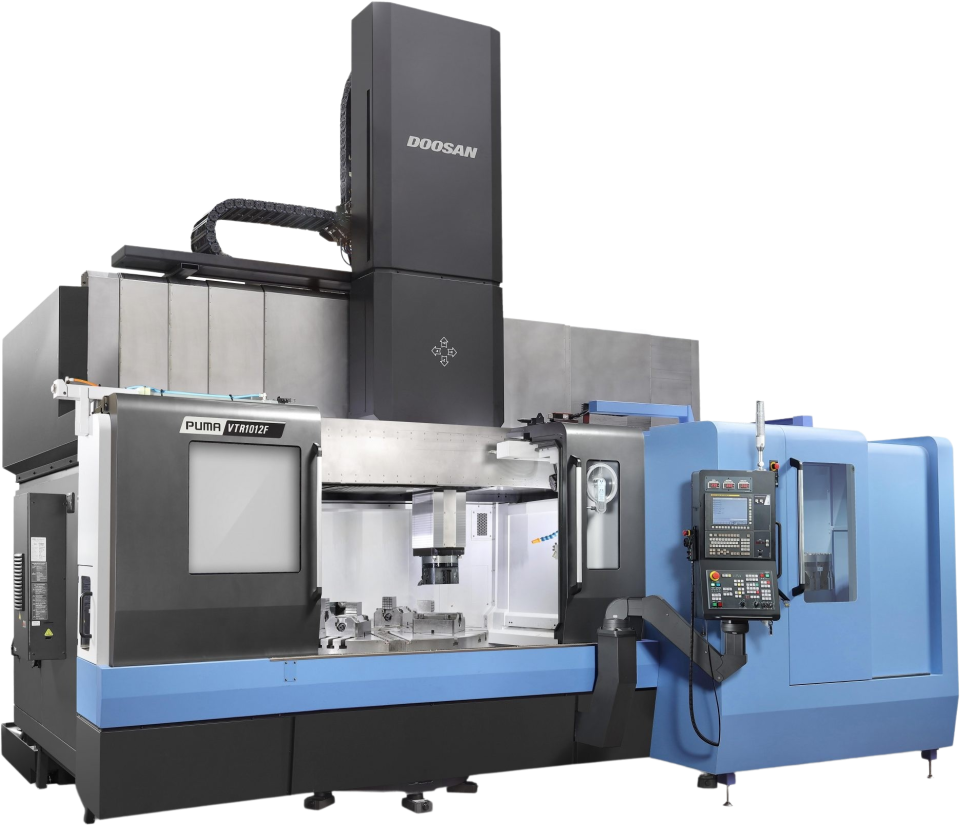

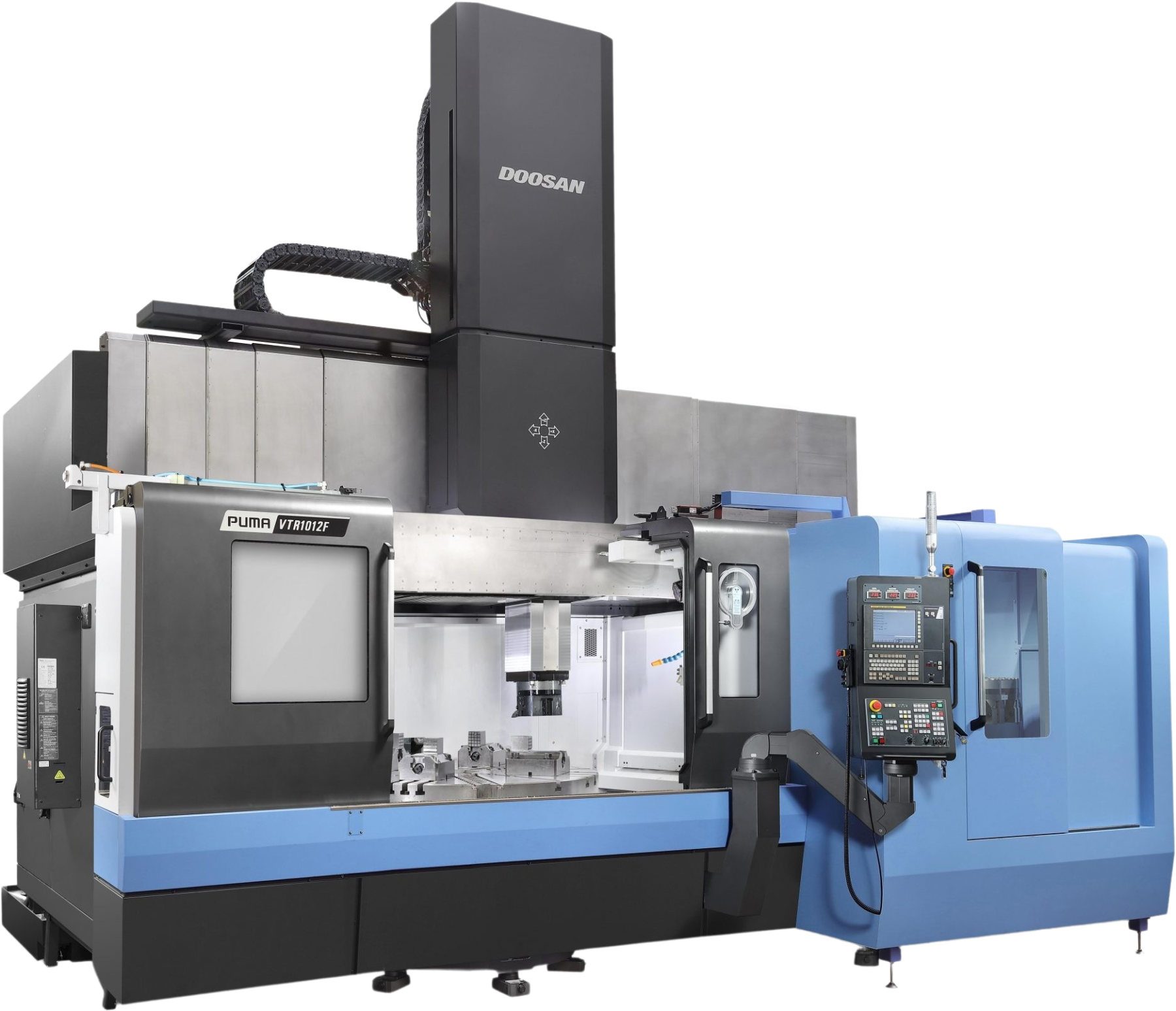

Doosan Puma VTR1012F Ram Type Vertical Borers

Puma VTR1012F

View
Puma VTR2025M
Puma VTR2025
Puma VTR1620M
Puma VTR1620
Puma VTR1216M
Puma VTR1216FC
Puma VTR1216FM
Puma VTR1216F
Puma VTR1216
Puma VTR1012FC
Puma VTR1012F
Travels
X Axis Rapid Traverse
10 m/min
10 m/min
11 m/min
11 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
Z Axis Rapid Traverse
7.5 m/min
7.5 m/min
10 m/min
10 m/min
10 m/min
10 m/min
10 m/min
10 m/min
10 m/min
10 m/min
10 m/min
X Axis Travel distance
2640 mm
2640 mm
2220 mm
2220 mm
1700 mm
1700 mm
1700 mm
1700 mm
1700 mm
1425 mm
1425 mm
Z Axis Travel distance
1400 mm
1400 mm
1200 mm
1200 mm
1200 mm
900 mm
900 mm
900 mm
1200 mm
700 mm
700 mm
Spindle
Max. Spindle Speed
200 r/min
200 r/min
300 r/min
300 r/min
300 r/min
400 r/min
400 r/min
400 r/min
300 r/min
600 r/min
600 r/min
Max. Spindle Power
75 kW
75 kW
45 kW
45 kW
45 kW
45 kW
45 kW
45 kW
45 kW
45 kW
45 kW
Max. Spindle Torque
41245 N·m
41245 N·m
24668 N·m
24668 N·m
20557 N·m
20557 N·m
20557 N·m
20557 N·m
20557 N·m
12354 N·m
12821 N·m
Tools
No. of tool station
12
12
12
12
12
12
12
12
12
12
12
Product Dimensions
Length
7900mm
7900mm
6500mm
6500mm
5265mm
6260mm
5690mm
6260mm
5265mm
5714mm
4970mm
Width
6000mm
6000mm
4250mm
4250mm
3824mm
5965mm
4026mm
4706mm
3824mm
4729mm
3147mm
Height
7550mm
7550mm
6345mm
6345mm
5650mm
5170mm
5296mm
5583mm
5650mm
4783mm
4950mm
Weight
61700kg
61700kg
40000kg
39000kg
30000kg
27500kg
28000kg
27500kg
29500kg
26000kg
26000kg
Additional
Max. Turning Diameter
2500 mm
2500 mm
2000 mm
2000 mm
1600 mm
1600 mm
1600 mm
1600 mm
1600 mm
1250 mm
1250 mm
Max. Turning Length
1900 mm
1900 mm
1800 mm
1800 mm
1250 mm
855 mm
950 mm
950 mm
1250 mm
750 mm
750 mm

Puma VTR2025M

Ram Type Vertical Borers

Doosan Puma VTR2025 Ram Type Vertical Borers
  • 75kW/200rpm spindle
  • 2500 mm max turning diameter
  • 1900 mm max turning length
View machine

Puma VTR2025

Ram Type Vertical Borers

Doosan Puma VTR2025 Ram Type Vertical Borers
  • 75kW/200rpm spindle
  • 2500 mm max turning diameter
  • 1900 mm max turning length
View machine

Puma VTR1620M

Ram Type Vertical Borers

Doosan Puma VTR1216FM Ram Type Vertical Borers
  • 45kW/300rpm spindle
  • 2000 mm max turning diameter
  • 1800 mm max turning length
View machine

Puma VTR1620

Ram Type Vertical Borers

Doosan Puma VTR1216FM Ram Type Vertical Borers
  • 45kW/300rpm spindle
  • 2000 mm max turning diameter
  • 1800 mm max turning length
View machine

Puma VTR1216M

Ram Type Vertical Borers

Doosan Puma VTR1216FM Ram Type Vertical Borers
  • 45kW/300rpm spindle
  • 1600 mm max turning diameter
  • 1250 mm max turning length
View machine

Puma VTR1216FC

Ram Type Vertical Borers

Doosan Puma VTR1216FM Ram Type Vertical Borers
  • 45kW/400rpm spindle
  • 1600 mm max turning diameter
  • 855 mm max turning length
View machine

Puma VTR1216FM

Ram Type Vertical Borers

Doosan Puma VTR1216FM Ram Type Vertical Borers
  • 45kW/400rpm spindle
  • 1600 mm max turning diameter
  • 950 mm max turning length
View machine

Puma VTR1216F

Ram Type Vertical Borers

Doosan Puma VTR1216F Ram Type Vertical Borers
  • 45kW/400rpm spindle
  • 1600 mm max turning diameter
  • 950 mm max turning length
View machine

Puma VTR1216

Ram Type Vertical Borers

Doosan Puma VTR1216 Ram Type Vertical Borers
  • 45kW/300rpm spindle
  • 1600 mm max turning diameter
  • 1250 mm max turning length
View machine

Puma VTR1012FC

Ram Type Vertical Borers

Doosan Puma VTR1012FC Ram Type Vertical Borers
  • 45kW/600rpm spindle
  • 1250 mm max turning diameter
  • 750 mm max turning length
View machine

Puma VTR1012F

Ram Type Vertical Borers

Doosan Puma VTR1012F Ram Type Vertical Borers
  • 45kW/600rpm spindle
  • 1250 mm max turning diameter
  • 750 mm max turning length
View machine

Compatible Control Systems

The Puma VTR Series is compatible with Fanuc and Siemens.
