Doosan DVM Series

Die & Mould Vertical Machining Centres – DVM 500 II, DVM 650 II

Features
  • Powerful Spindle Technology, High Precision Built-in Spindle
  • Convenient 2 door access
  • High Rigidity machine structure with excellent cutting performance
  • Integrated thermal compensation and cooling systems
Share this series

or copy link

High precision and high-speed Die and Mould Vertical Machining Centres. The DVM II series has been upgraded and now incorporates a harder spindle that delivers a longer lifespan.

Technical Specification

X Axis Travel distance 1020 - 1270mm
Y Axis Travel distance 540 - 670mm
Z Axis Travel distance 510 - 625mm
X Axis Rapid Traverse 30m/min
Y Axis Rapid Traverse 30m/min
Z Axis Rapid Traverse 30m/min
Max. Spindle Speed 20000r/min
Max. Spindle Power 22kW
Max. Spindle Torque 60N·m
Tool Taper
Table Length 1200 - 1300mm
Table Width 540 - 670mm
Max. Table Weight 800 - 1000kg
No. of tool station 30

Series Dimensions

Length 2462 - 2692mm
Width 3350mm
Height 2789 - 2905mm
Weight 6500 - 8500kg

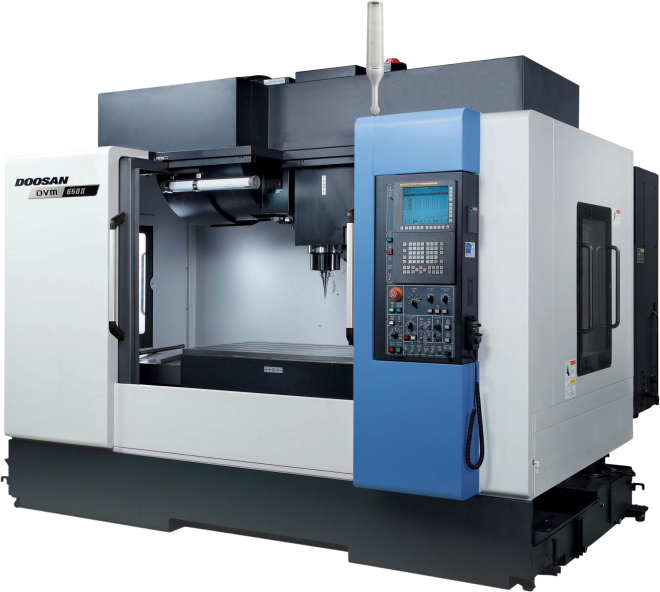

Image representative of Series and may not be the exact model

The Doosan DVM Series is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
