Doosan MD Series

Doosan MD 6700 Mould & Die Machining centers

Features
  • Powerful spindle technology
  • Compact design – rigid build
  • Integrated thermal compensation and cooling systems
Share this series

or copy link

The MD 6700 is a high-precision, high-productivity machining center designed for the mould tool and die sector.

The machines in the range are equipped with either a built-in or gear-driven spindle, and feature thermal compensation and cooling systems for increased accuracy and reliability.

Technical Specification

X Axis Travel distance 1300mm
Y Axis Travel distance 670mm
Z Axis Travel distance 670mm
X Axis Rapid Traverse 24m/min
Y Axis Rapid Traverse 24m/min
Z Axis Rapid Traverse 24m/min
Max. Spindle Speed 12000r/min
Max. Spindle Power 30kW
Max. Spindle Torque 419N·m
Tool Taper
Table Length 1500mm
Table Width 670mm
Max. Table Weight 2000kg
No. of tool station 30

Series Dimensions

Length 3990mm
Width 3860mm
Height 3290mm
Weight 12000kg

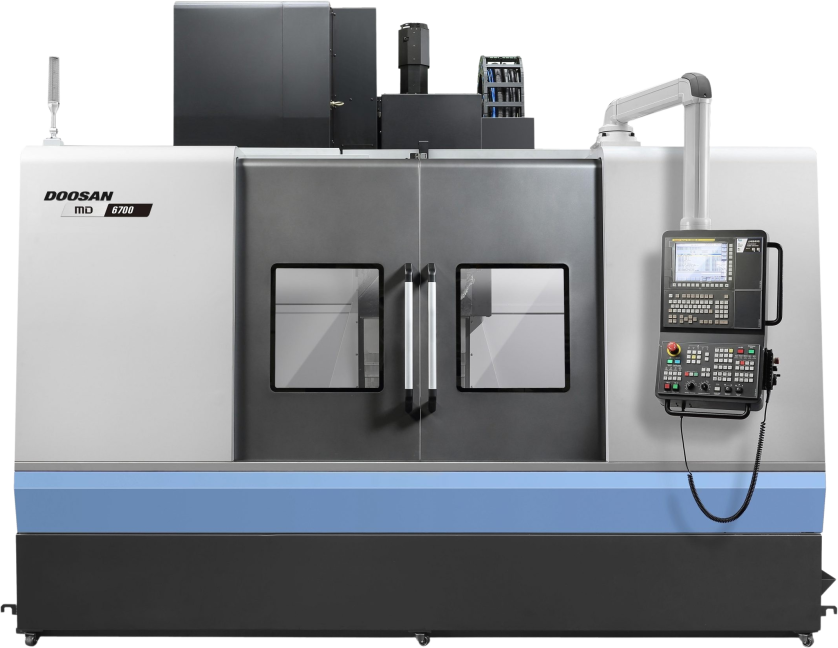

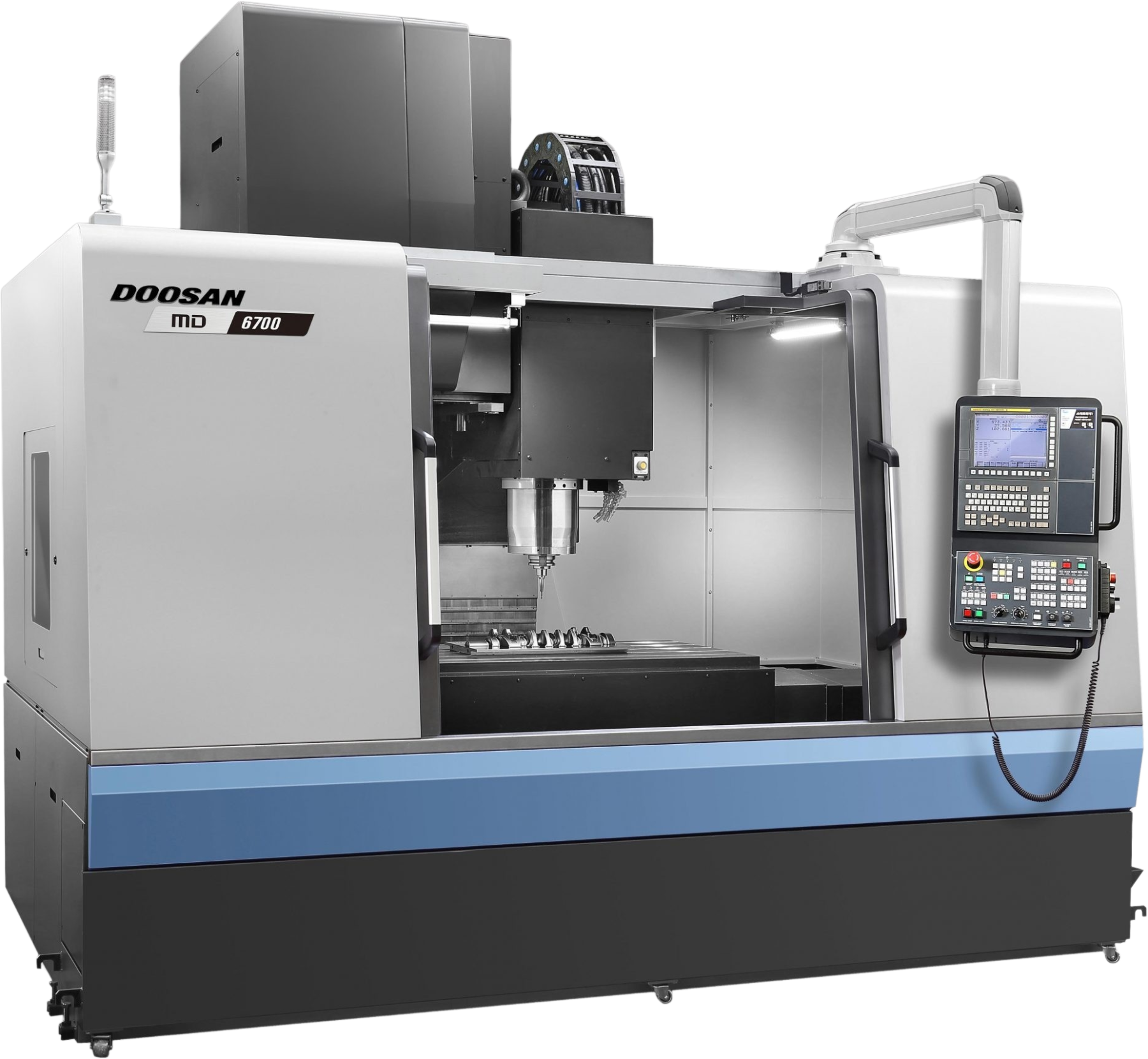

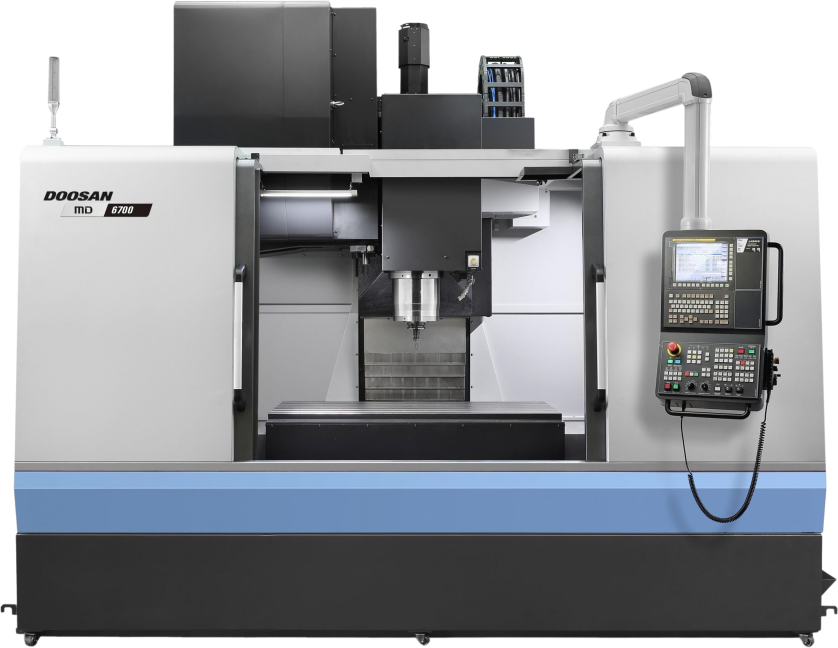

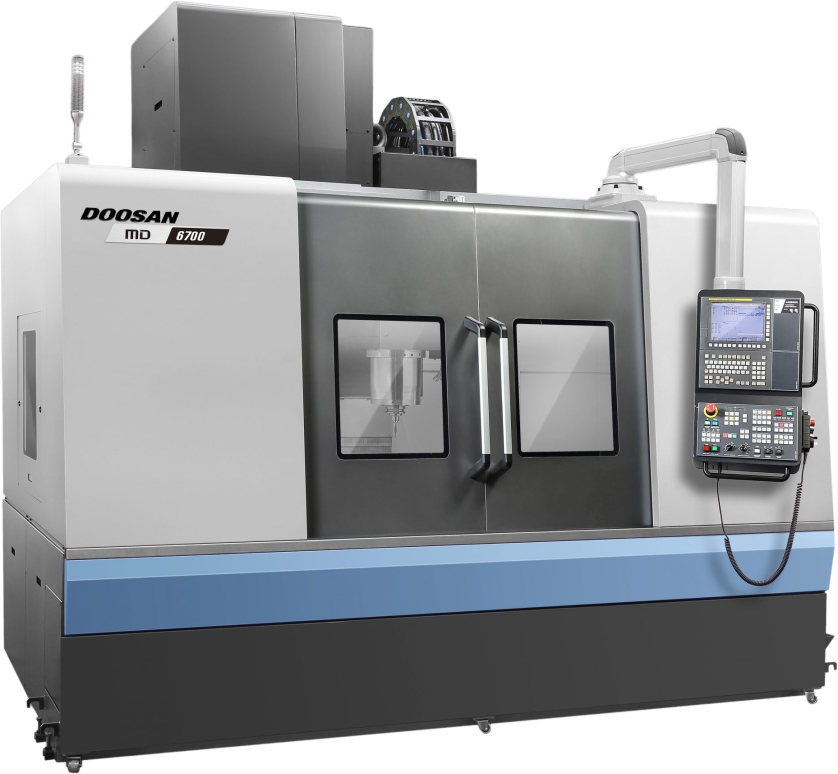

Image representative of Series and may not be the exact model

The Doosan MD Series is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
