Doosan DHF 8000 Series

Doosan DHF 8000 horizontal machining centers are twin-pallet 5-axis machines

  • Pallet Size - 800mm
  • Spindle Taper - 50, HSK A100
  • Spindle RPM - 6,000 - 15,000
Share this series

or copy link

DHF 8000ST I 5axis Horizontal Machining I DOOSAN MACHINE TOOLS
DHF 8000ST I 5axis Horizontal Machining I DOOSAN MACHINE TOOLS

With 800 mm twin pallets and a compact footprint, the DHF 8000 series handles complex parts with precision and efficiency. It’s particularly popular for large part applications in aerospace, automotive and oil field industries, but is suitable for almost any sector with complex or large part simultaneous 5-axis machining needs.

Technical Specification

X Axis Travel distance 1450mm
Y Axis Travel distance 1200mm
Z Axis Travel distance 1500mm
Max. Workpiece Diameter 1400mm
Max. Workpiece Height 1400mm
Max. Workpiece Weight 2000kg
X Axis Rapid Traverse 40m/min
Y Axis Rapid Traverse 40m/min
Z Axis Rapid Traverse 50m/min
Max. Spindle Speed 6000r/min
Max. Spindle Power 35kW
Max. Spindle Torque 960N·m
Tool Taper
Rotary Table Diameter 800 - 1000mm
No. of tool station 376

Series Dimensions

Length 11835mm
Width 5830mm
Height 4075mm
Weight 31000kg

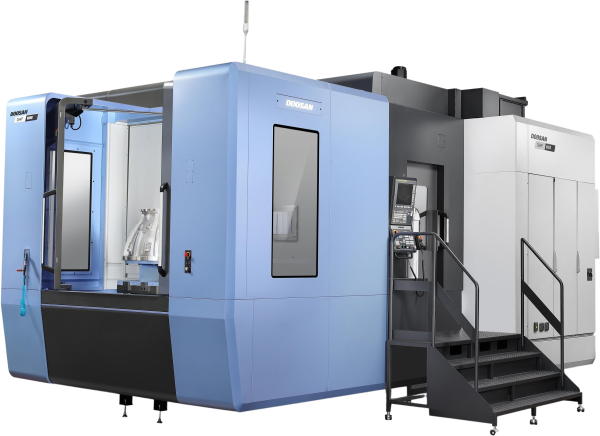

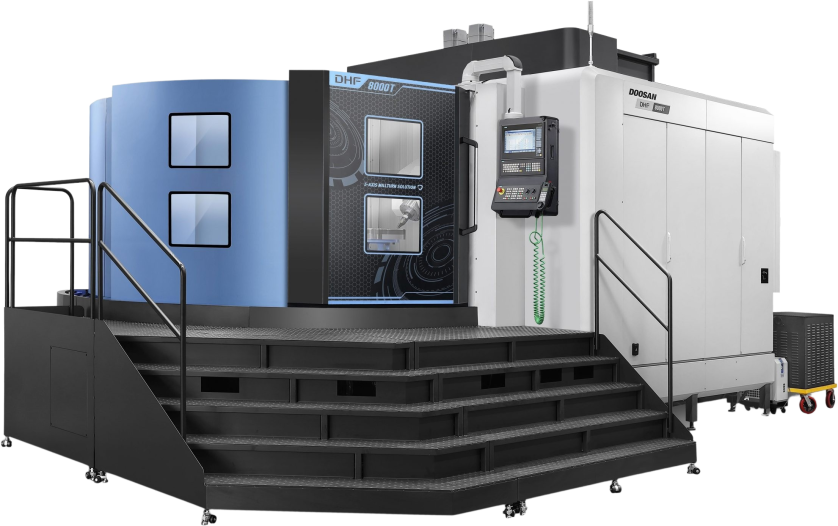

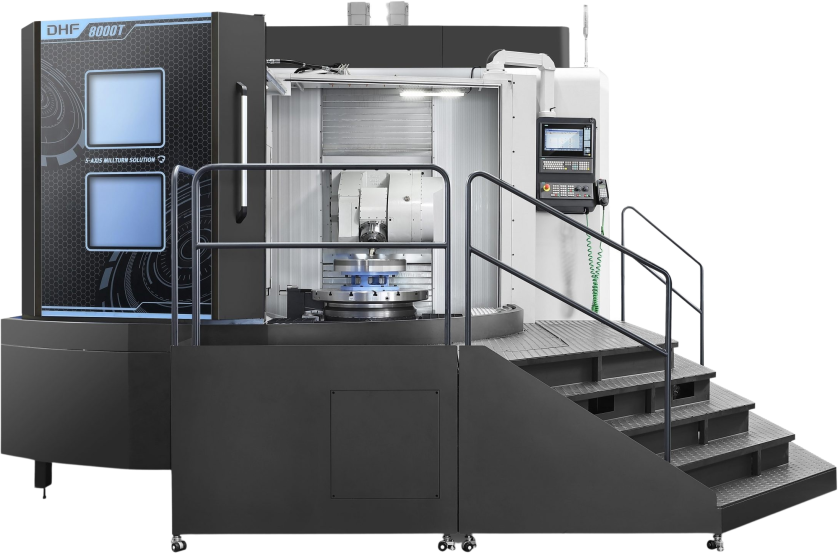

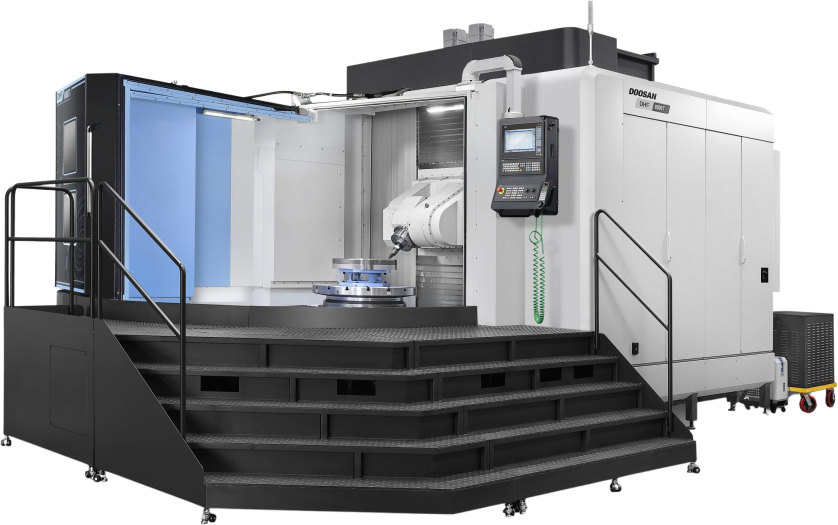

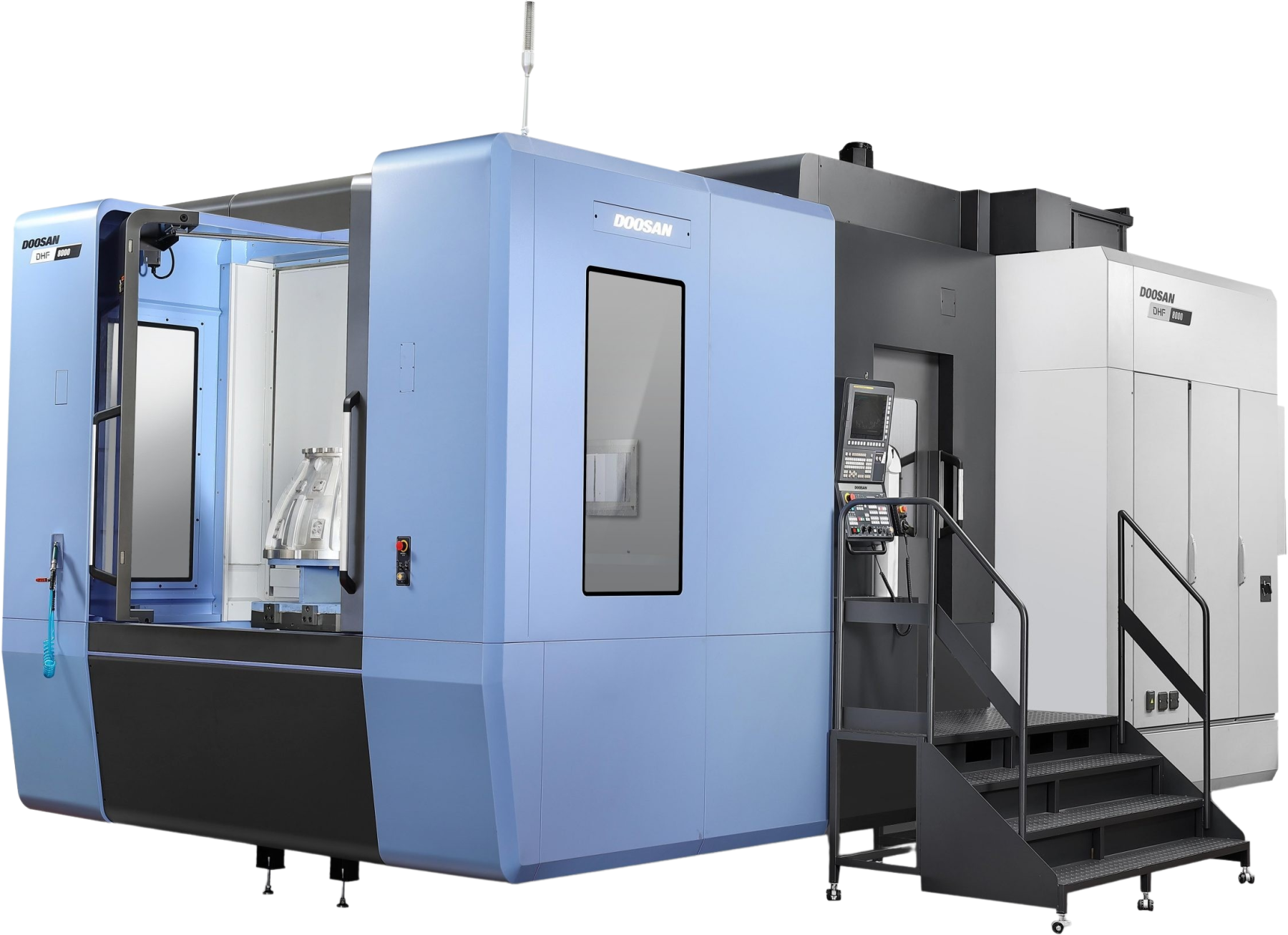

Image representative of Series and may not be the exact model

The Doosan DHF 8000 Series is compatible with Siemens and Fanuc.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
