Doosan VCF 5AX Series
Features
- X-Axis Travel - 4000mm
- Rotary Table Diameter - 800 - 1050mm
- Spindle RPM - 10,000 - 12,000
or copy link
Technical Specification
| X Axis Travel distance | 2000 - 4000mm |
|---|---|
| Y Axis Travel distance | 850 - 1100mm |
| Z Axis Travel distance | 800 - 1200mm |
| Max. Workpiece Diameter | 1050 - 1120mm |
| Max. Workpiece Height | 1095 - 1200mm |
| Max. Workpiece Weight | 1200 - 4000kg |
| X Axis Rapid Traverse | 40m/min |
| Y Axis Rapid Traverse | 40m/min |
| Z Axis Rapid Traverse | 36 - 40m/min |
| Max. Spindle Speed | 10000 - 12000r/min |
| Max. Spindle Power | 22 - 37kW |
| Max. Spindle Torque | 204 - 302N·m |
| Tool Taper | |
| Rotary Table Diameter | 800 - 1050mm |
| Table Length | 2500 - 4020mm |
| Table Width | 870 - 1120mm |
| Max. Table Weight | 3500 - 4000kg |
| No. of tool station | 60 - 120 |
Series Dimensions
| Length | 3795 - 6045mm |
|---|---|
| Width | 4440 - 10170mm |
| Height | 3205 - 3977mm |
| Weight | 22000 - 39000kg |

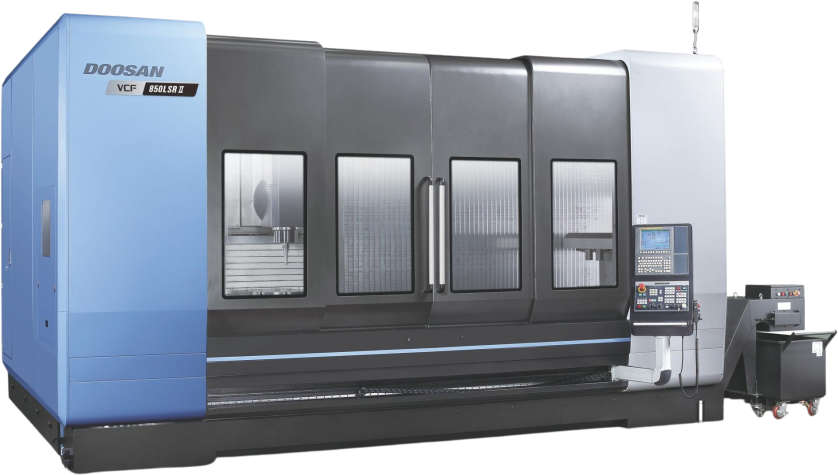

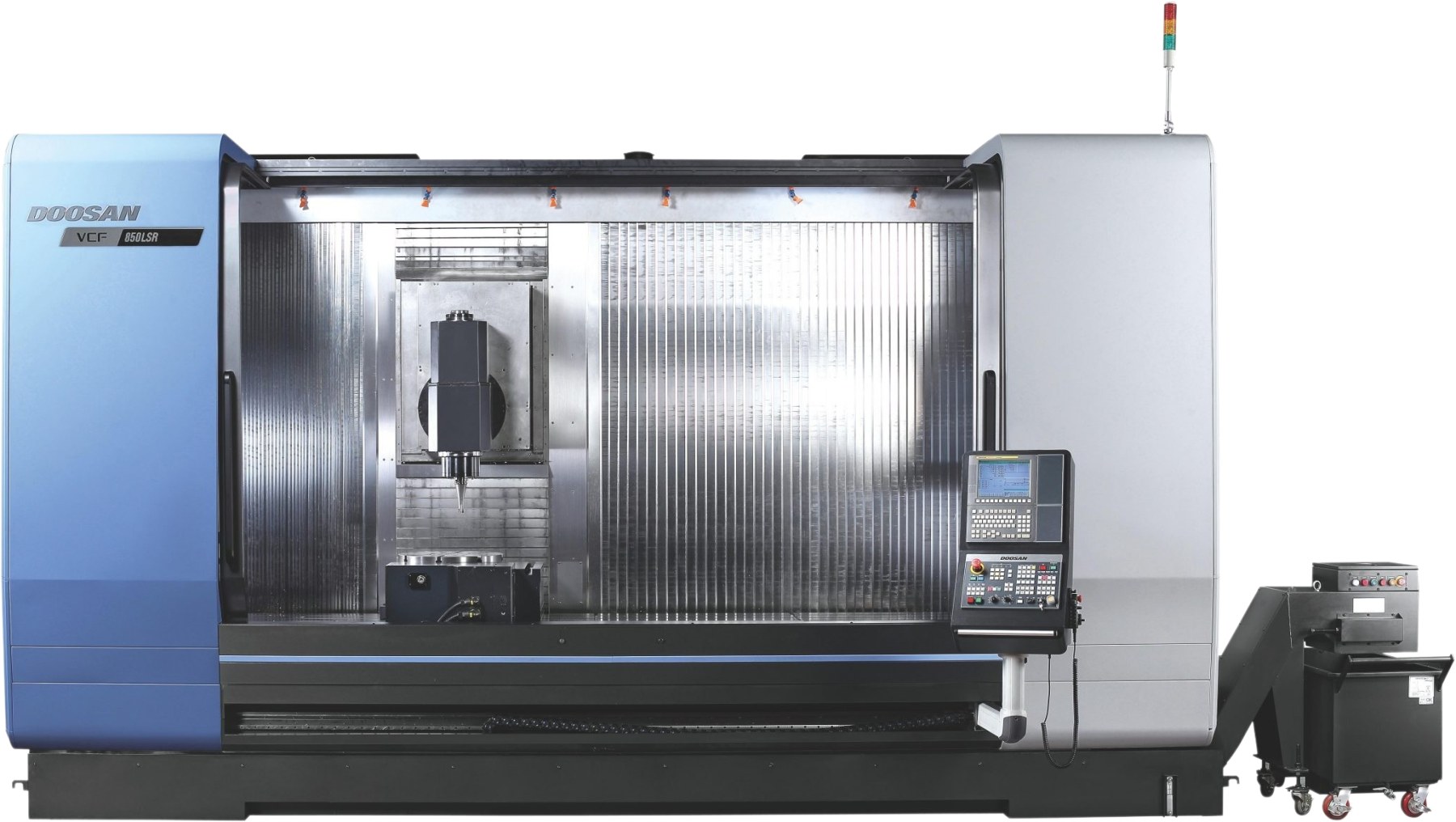

Image representative of Series and may not be the exact model
The Doosan VCF 5AX Series is compatible with Heidenhain, Fanuc and Siemens.
