Vertical 5-Axis CNC Machining Centres

Choice is the name of the game when it comes to Doosan 5-axis CNC machining centres.

Find Your Perfect Product

5-Axis Machining Centres

Vertical 5-Axis CNC Machines

Mills CNC offer everything from 3 + 2; 4 + 1 and full 5-axis simultaneous machines (A, B, X, Y, & Z Axis) and the CNC machining centres are available with a choice of controls too.

Doosan 5-Axis CNC machines deliver increased productivity and are used by precision component manufacturers in the aerospace, defence and motorsport sectors plus in any other industry where part accuracies and rapid lead time fulfilment are required.

What is the advantage of a 5 axis CNC machine?

5-axis CNC machines use a tool that moves in five different directions. Using a 5-axis machine allows your operator to approach the part from all directions in a single operation, thereby eliminating the need to manually reposition the workpiece between operations. These advantages result in high precision and accuracy, faster production speeds, fewer manual setups and the ability to produce complex geometries with better surface finishes.

Machine Series

  • 150 degree A-axis tilt (+30/-120 degrees)
  • Powerful advanced spindles
  • 3 + 2 and full simultaneous 5-axis machining
  • Choice of controls – Heidenhain, Fanuc or Siemens
View Series
  • Rotary Table Diameter - 630mm
  • Spindle Taper - 40
  • Spindle RPM - 12,000
View Series
  • 3-axis and 5-axis models available
  • High-speed spindles (12.6kW/40,000rpm)
  • Linear scales
  • Heidenhain Control
View Series
  • Rotary Table Diameter - 500mm
  • Spindle Taper - 40
  • Spindle RPM - 18,000
View Series
  • X-Axis Travel - 4000mm
  • Rotary Table Diameter - 800 - 1050mm
  • Spindle RPM - 10,000 - 12,000
View Series

All Vertical 5-Axis CNC Machining Centres

Showing 11 products

DVF 4000

Vertical 5-Axis CNC Machining Centres

DN Solutions DVF 4000 Vertical Machining Centre
  • 18.5kW/12000rpm spindle
  • 30ea tool stations
  • 2750 x 2205 x 2760 mm (LxWxH)
View machine

VCF 850SR II

Vertical 5-Axis CNC Machining Centres

Doosan VCF 850SR II Vertical 5-Axis CNC Machining Centres
  • 22kW/12000rpm spindle
  • 60ea tool stations
  • 3795 x 4440 x 3205 mm (LxWxH)
View machine

VCF 850LSR II

Vertical 5-Axis CNC Machining Centres

Doosan VCF 850LSR II Vertical 5-Axis CNC Machining Centres
  • 22kW/12000rpm spindle
  • 60ea tool stations
  • 3795 x 5440 x 3205 mm (LxWxH)
View machine

DVF 8000T

Vertical 5-Axis CNC Machining Centres

Doosan DVF 8000T Vertical 5-Axis CNC Machining Centres
  • 22kW/18000rpm spindle
  • 120ea tool stations
  • 4097 x 2950 x 3670 mm (LxWxH)
View machine

DVF 8000

Vertical 5-Axis CNC Machining Centres

Doosan DVF 8000 Vertical 5-Axis CNC Machining Centres
  • 22kW/18000rpm spindle
  • 120ea tool stations
  • 4097 x 2950 x 3670 mm (LxWxH)
View machine

DVF 6500

Vertical 5-Axis CNC Machining Centres

Doosan DVF 6500 Vertical 5-Axis CNC Machining Centres
  • 22kW/18000rpm spindle
  • 120ea tool stations
  • 3700 x 2450 x 3100 mm (LxWxH)
View machine

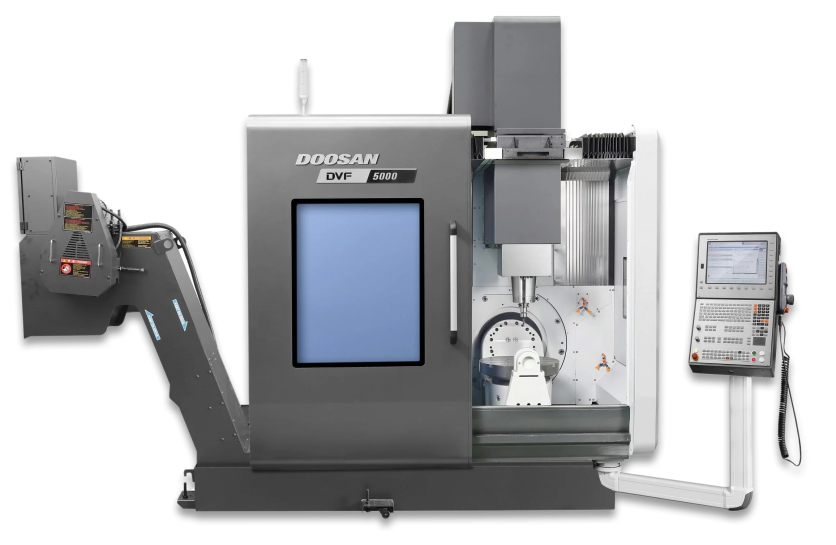

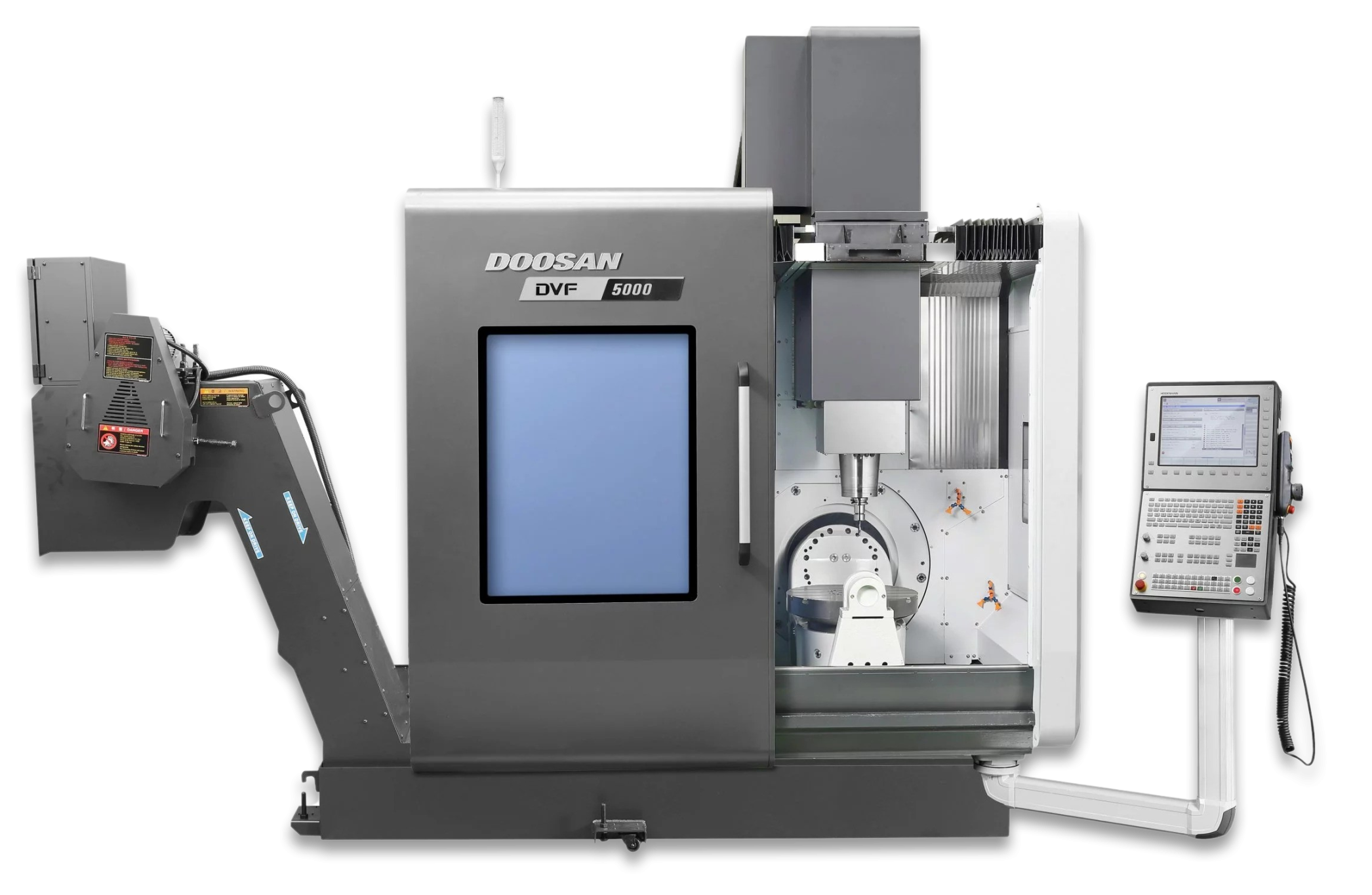

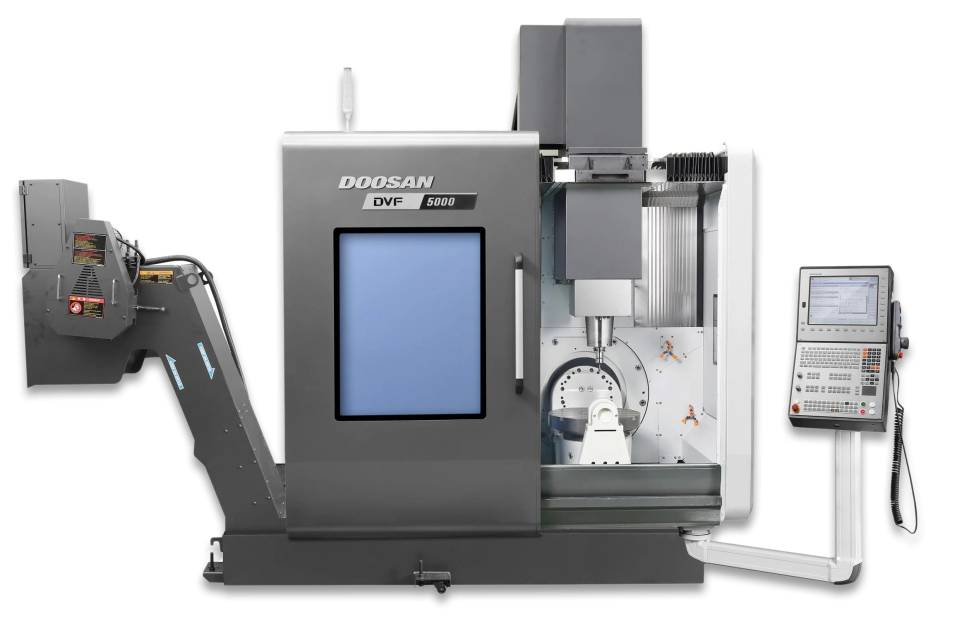

DVF 5000

Vertical 5-Axis CNC Machining Centres

Doosan DVF 5000 Vertical 5-Axis CNC Machining Centres
  • 18.5kW/18000rpm spindle
  • 120ea tool stations
  • 2700 x 2205 x 2890 mm (LxWxH)
View machine

FM 200/5AX linear

Vertical 5-Axis CNC Machining Centres

Doosan FM 200/5AX linear Vertical 5-Axis CNC Machining Centres
  • 12.6kW/42000rpm spindle
  • 24ea tool stations
  • 2225 x 1972 x 2375 mm (LxWxH)
View machine

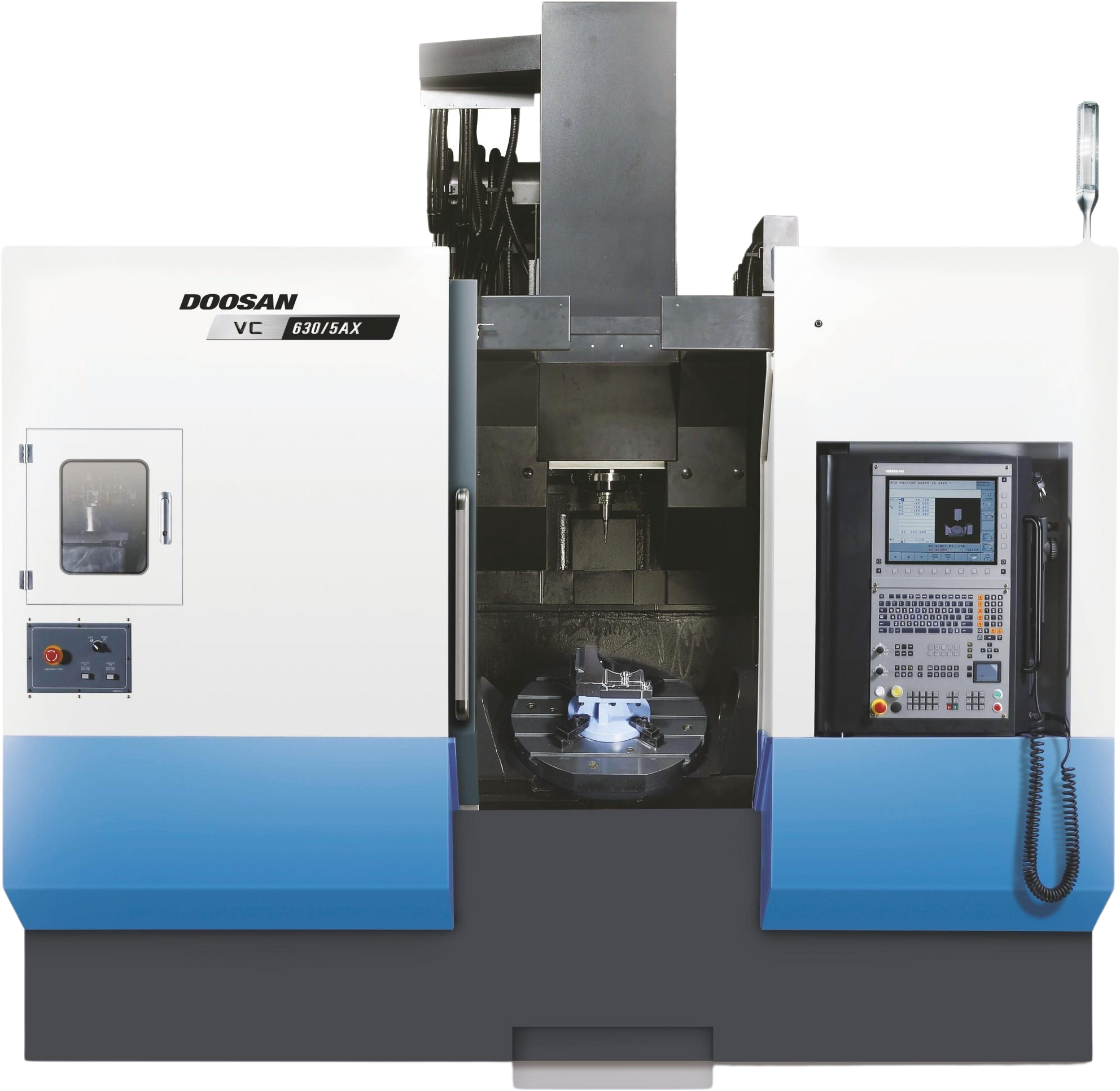

VC 630/5AX

Vertical 5-Axis CNC Machining Centres

Doosan VC 630/5AX Vertical 5-Axis CNC Machining Centres
  • 22kW/12000rpm spindle
  • 121ea tool stations
  • 4585 x 3200 x 3295 mm (LxWxH)
View machine

DNM 350/5AX

Vertical 5-Axis CNC Machining Centres

Doosan DNM 350/5AX Vertical 5-Axis CNC Machining Centres
  • 18.6kW/12000rpm spindle
  • 60ea tool stations
  • 3209 x 3150 x 3109 mm (LxWxH)
View machine

DNM 200/5AX

Vertical 5-Axis CNC Machining Centres

Doosan DNM 200/5AX Vertical 5-Axis CNC Machining Centres
  • 18.6kW/12000rpm spindle
  • 40ea tool stations
  • 2836 x 2465 x 3300 mm (LxWxH)
View machine

Filter

Travels

to
to
to

Workpiece Capacity

to
to
to

Main Spindle

to

Table

to
to
to

Tool Storage Capacity

to

Related Case Studies

Interior of DVF 5000 with tilted table

Two new machines delivered in less than a month!

Doosan DVF 5000 Vertical 5-Axis Machining Centre

Dalloway Precision expand their capacity with the addition of a DVF 5000 simultaneous 5-axis machining centre and a DNT 2100 8” chuck box guideway lathe in their new facility near Stourbridge.

Commitment to continuous improvement drives latest machine tool investment for DRB Group.

Doosan VCF 850LSR II Vertical 5-Axis Machining Centre

Deeside based DRB Group has a focus on the repair, maintenance & supply of electric motors, generators and mechanical transmission systems to customers in the rail, pharmaceutical, food & beverage, medical and energy sectors. DRB recently invested in a Doosan VCF 850LSR II Vertical 5-Axis Machining Centre from Mills CNC to improve machining capabilities.

Two new machines. Two turnkey solutions.

Doosan DVF 6500 Vertical Machining Centre

NuMachine Ltd in Hereford bought two 5-axis machining centres, a Doosan VCF 850LSR and a Doosan DVF 6500 - both featuring a tailored ‘turnkey’ work holding solution. The new machines produce cast aluminium automotive components for Sarginsons Industries of Coventry, whose existing supplier was failing to meet stringent quality and lead time constraints.
