DNX Series
DN Solutions (formerly Doosan) DNX-series of multi-tasking mill-turn machines
Features
- 8” – 10” chuck size
- Single and twin-spindle models
- 12,000rpm milling spindle
or copy link
New DNX machines are entry-level, multi-tasking machines positioned between DN Solutions’ sub-spindle Y-axis Puma 2100SY turning centre series, and its already established SMX 2100S/ST series of mill-turn machines, and provides component manufacturers with more integrated machining capabilities than the former with a lower price point than the latter.
The DNX 2100 Series won a Red Dot Award in 2025 for excellence in Product Design.
Technical Specification
| Bar Capacity | 65 - 81mm |
|---|---|
| Chuck size | 8 - 10inch |
| Max. Turning Length | 1100mm |
| Max. Turning Diameter | 520mm |
| Max. Left Spindle Power | 18 - 22kW |
| Max. Left Spindle Speed | 4000 - 5000r/min |
| Max. Left Spindle Torque | 326 - 456N·m |
| Max. Right Spindle Power | 18kW |
| Max. Right Spindle Speed | 5000r/min |
| Max. Right Spindle Torque | 326N·m |
| No. of tool station | 60 |
Series Dimensions
| Length | 4615mm |
|---|---|
| Width | 2285mm |
| Height | 2630mm |
| Weight | 10850 - 11000kg |

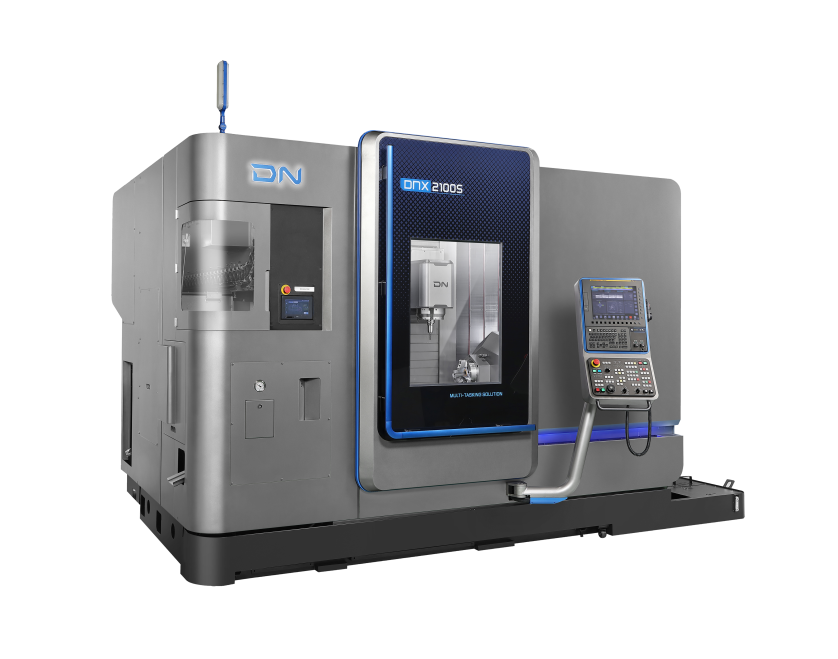

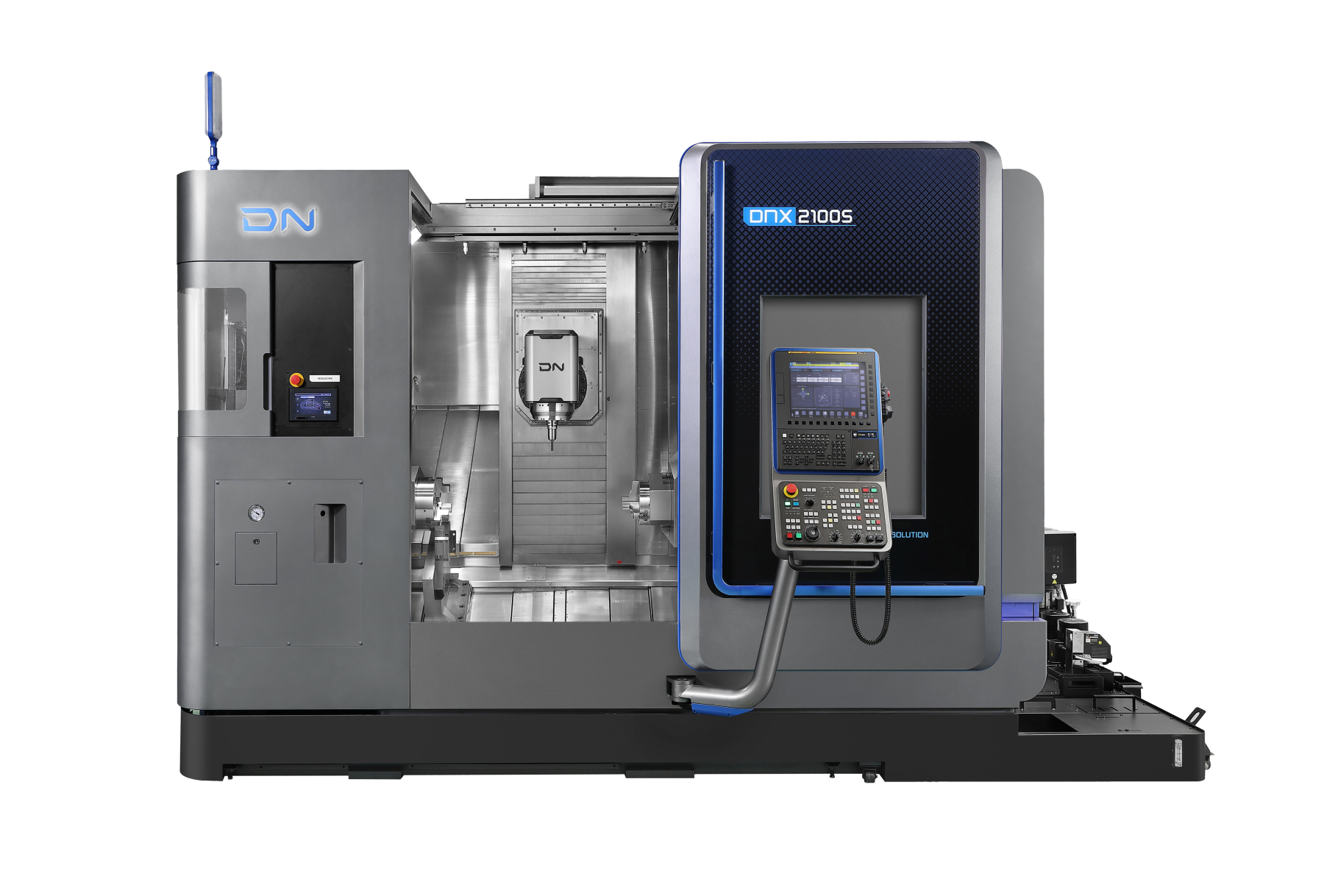

Image representative of Series and may not be the exact model
The DNX Series is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
