BM 2740M

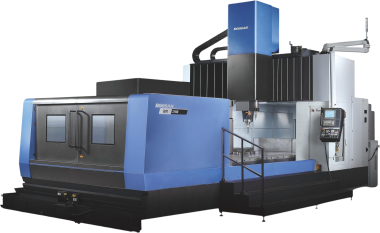

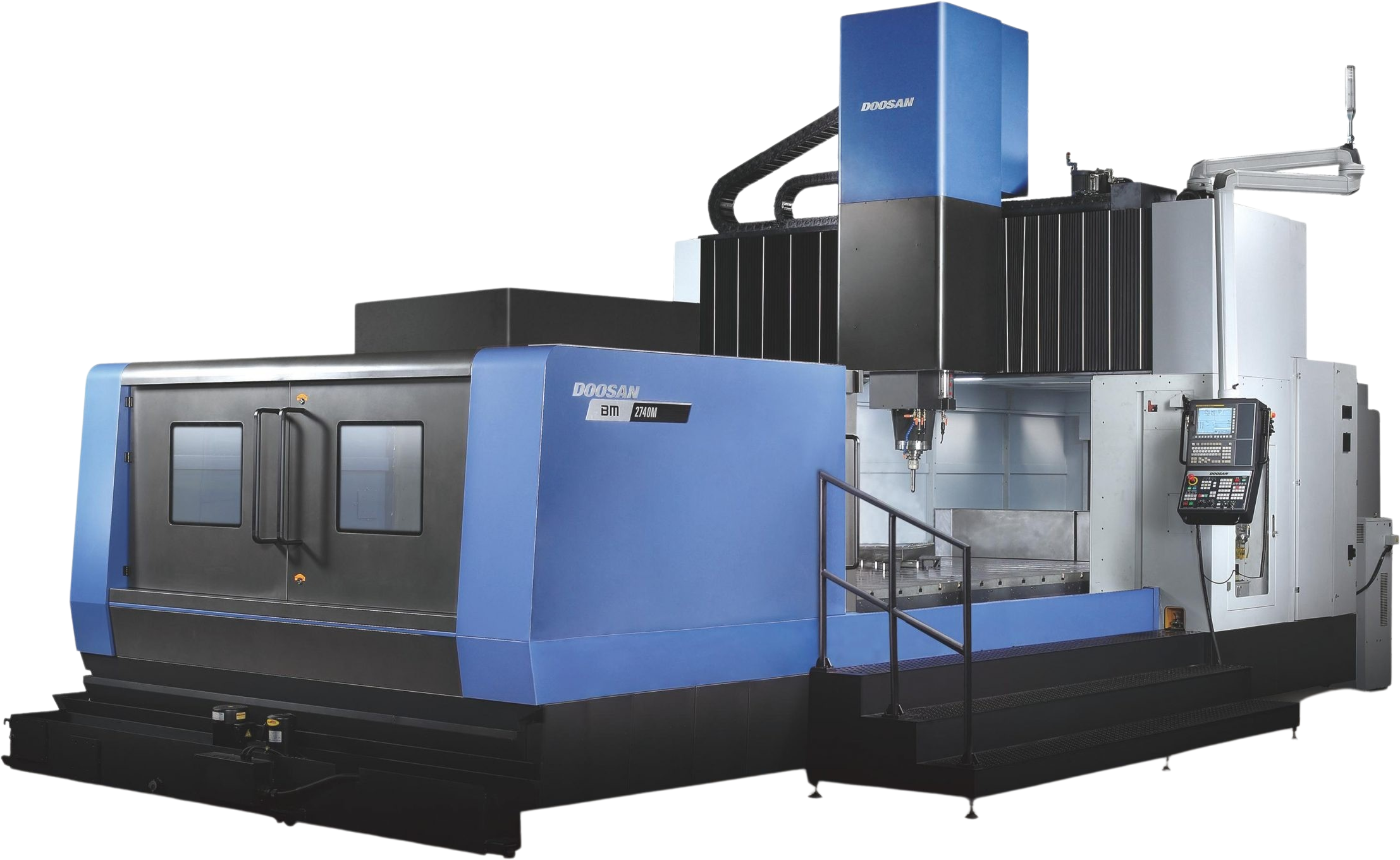

DN Solutions (formerly Doosan) BM 2740M Double Column Fixed Cross Rail Machining Centre

Enquire Now

BM 2740U | Universal head | 5 axis double column machining center | DOOSAN CNC

Watch this Video

Doosan BM 2740M Double Column Fixed Cross Rail CNC Machines

BM 2740M Description

DN Solutions (formerly Doosan) BM 2740M Double Column Fixed Cross Rail Machining Centre

Product specifications

BM 2740M

View

BM 3540P

View

BM 2740P

View

BM 2740

View

Doosan BM 2035 Double Column Fixed Cross Rail CNC Machines

BM 2035M

View

BM 2035

View

Doosan BM 1530 Double Column Fixed Cross Rail CNC Machines

BM 1530M

View

BM 1530

View

BM 2740M

BM 3540P

BM 2740P

BM 2740

BM 2035M

BM 2035

BM 1530M

BM 1530

Travels

X Axis Travel distance

4000 mm

3500 mm

3000 mm

Y Axis Travel distance

2700 mm

3500 mm

2700 mm

2050 mm

1550 mm

Z Axis Travel distance

800 mm

500 mm

800 mm

X Axis Rapid Traverse

12 m/min

16 m/min

Y Axis Rapid Traverse

16 m/min

24 m/min

16 m/min

Z Axis Rapid Traverse

16 m/min

36 m/min

24 m/min

16 m/min

Spindle

Max. Spindle Speed

12000 r/min

10000 r/min

12000 r/min

8000 r/min

12000 r/min

8000 r/min

Max. Spindle Power

30 kW

22 kW

30 kW

Max. Spindle Torque

420 N·m

204 N·m

420 N·m

600 N·m

450 N·m

600 N·m

Table

Table Length

4000 mm

3500 mm

3000 mm

Table Width

2500 mm

1850 mm

1350 mm

Max. Table Weight

15000 kg

3000 kg

10000 kg

8000 kg

Product Dimensions

Length

6637mm

6524mm

5721mm

6637mm

5944mm

5542mm

Width

13459mm

10825mm

13459mm

11963mm

10945mm

Height

4435mm

3840mm

3760mm

4435mm

4770mm

Weight

47990kg

41000kg

38000kg

47990kg

35516kg

29000kg

Additional

Distance between Columns

2700 mm

2200 mm

1700 mm

Max. Workpiece Height

938 mm

660 mm

580 mm

938 mm

1000 mm

Max. Workpiece Weight

15000 kg

3000 kg

10000 kg

8000 kg

30kW/12000rpm spindle
6637 x 13459 x 4435 mm (LxWxH)

View machine

22kW/12000rpm spindle
6524 x 10825 x 3840 mm (LxWxH)

View machine

22kW/12000rpm spindle
5721 x 10825 x 3760 mm (LxWxH)

View machine

30kW/10000rpm spindle
6637 x 13459 x 4435 mm (LxWxH)

View machine

30kW/12000rpm spindle
5944 x 11963 x 4770 mm (LxWxH)

View machine

30kW/8000rpm spindle
5944 x 11963 x 4770 mm (LxWxH)

View machine

30kW/12000rpm spindle
5542 x 10945 x 4770 mm (LxWxH)

View machine

30kW/8000rpm spindle
5542 x 10945 x 4770 mm (LxWxH)

View machine

Compatible Control Systems

The BM 2740M is compatible with Fanuc, Siemens and Heidenhain.
