DNM 350/5AX

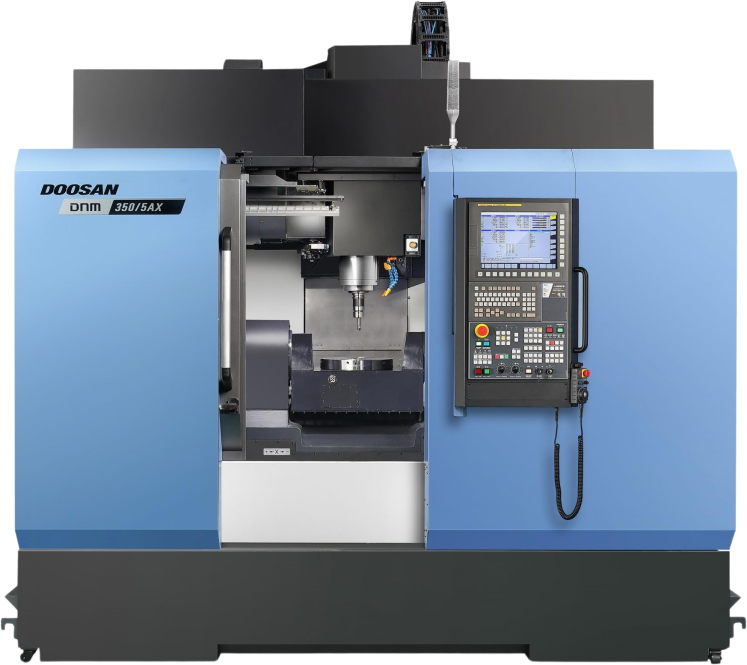

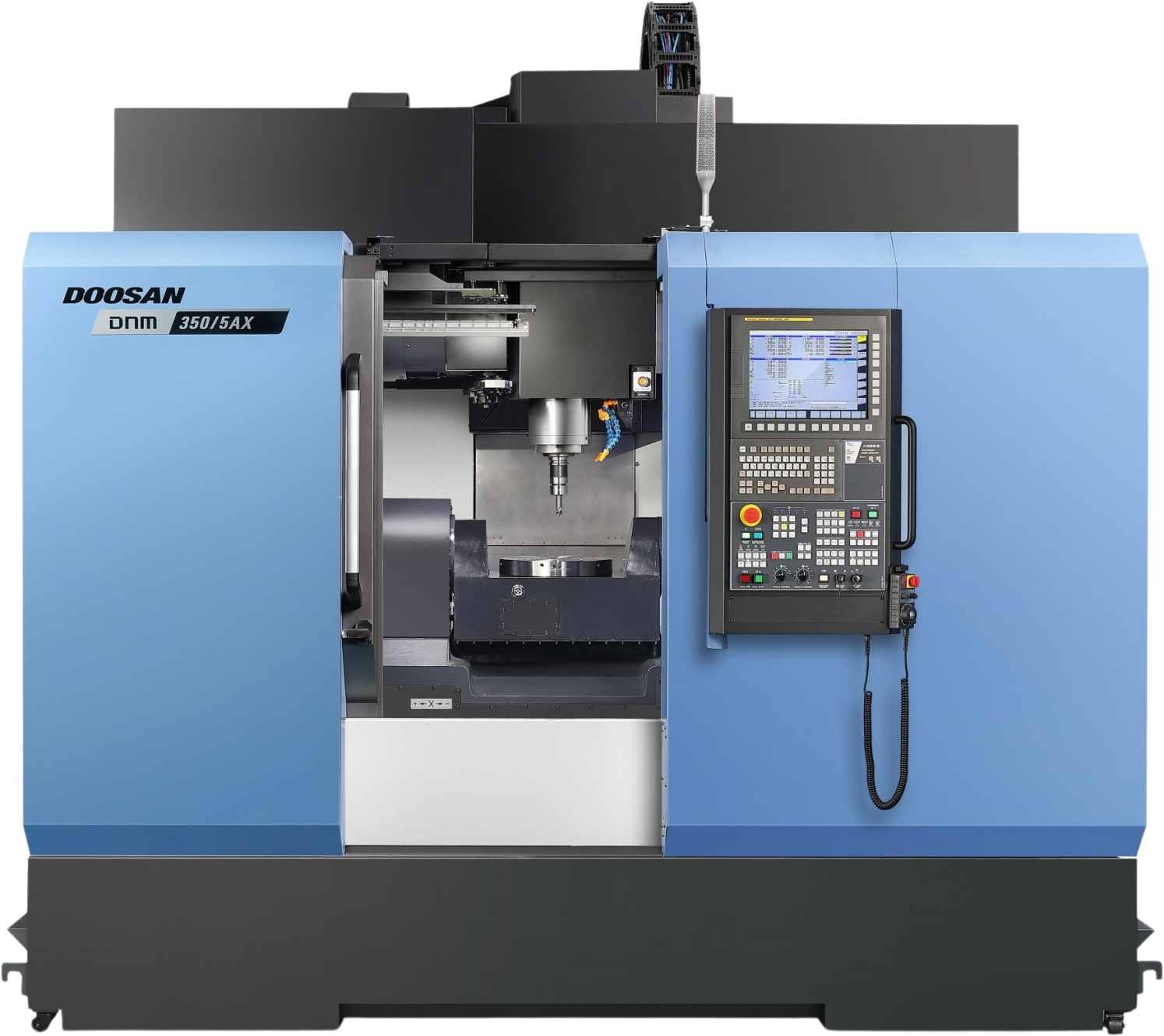

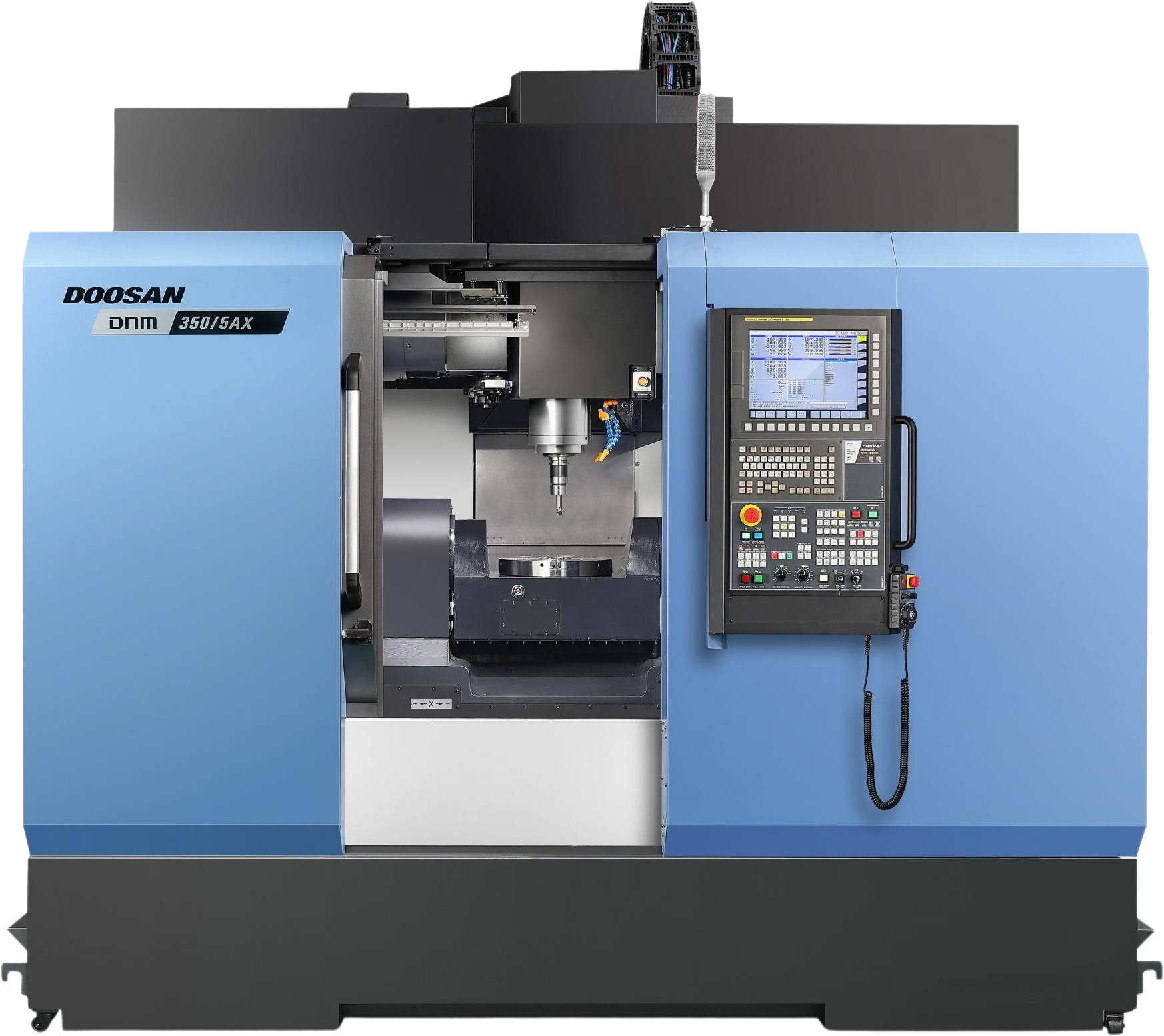

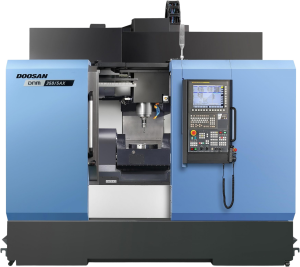

DN Solutions (formerly Doosan) DNM 350/5AX Vertical 5-Axis Machining Centre

DNM 350/5AX Description

DN Solutions (formerly Doosan) DNM 350/5AX Vertical 5-Axis Machining Centre

Product specifications

Doosan DNM 350/5AX Vertical 5-Axis CNC Machining Centres

DNM 350/5AX

View
Doosan DNM 200/5AX Vertical 5-Axis CNC Machining Centres

DNM 200/5AX

View
DNM 350/5AX
DNM 200/5AX
Travels
X Axis Travel distance
400 mm
400 mm
Y Axis Travel distance
655 mm
435 mm
Z Axis Travel distance
500 mm
500 mm
X Axis Rapid Traverse
36 m/min
36 m/min
Y Axis Rapid Traverse
36 m/min
36 m/min
Z Axis Rapid Traverse
30 m/min
30 m/min
Spindle
Max. Spindle Speed
12000 r/min
12000 r/min
Max. Spindle Power
18.6 kW
18.6 kW
Max. Spindle Torque
117 N·m
117 N·m
Table
Max. Table Weight
250 kg
40 kg
Tools
No. of tool station
60
40
Product Dimensions
Length
3209mm
2836mm
Width
3150mm
2465mm
Height
3109mm
3300mm
Weight
8500kg
5500kg
Additional
Max. Workpiece Diameter
400 mm
300 mm
Max. Workpiece Height
335 mm
200 mm
Max. Workpiece Weight
250 kg
40 kg
Rotary Table Diameter
350 mm
200 mm

DNM 350/5AX

Vertical 5-Axis CNC Machining Centres

Doosan DNM 350/5AX Vertical 5-Axis CNC Machining Centres
  • 18.6kW/12000rpm spindle
  • 60ea tool stations
  • 3209 x 3150 x 3109 mm (LxWxH)
View machine

DNM 200/5AX

Vertical 5-Axis CNC Machining Centres

Doosan DNM 200/5AX Vertical 5-Axis CNC Machining Centres
  • 18.6kW/12000rpm spindle
  • 40ea tool stations
  • 2836 x 2465 x 3300 mm (LxWxH)
View machine

Compatible Control Systems

The DNM 350/5AX is compatible with Fanuc, Siemens and Heidenhain.

Enquire Now

Why choose Mills CNC

Why choose Mills CNC

Mills CNC are much more than just a Doosan distributor, our services and support ensure that you can get exactly what you need from financing options to training for your team.

CNC Solutions

Not sure what you need? Mills CNC can help you incorporate your DNM 200 5AX into a turnkey or automated solution that works perfectly for your business.

CNC Automation Systems

From automated Cobots providing machine tending operations, to a bespoke system of sensors, controls and actuators to automate a manufacturing process, Mills CNC can provide an efficient, effective automation solution for you.

Turnkey Solutions

A turnkey solution is more than just a machine, it’s a full service solution that ensures that your CNC setup is perfectly tailored to your manufacturing needs. This can often include automation for a fully streamlined process.

Doosan DNM 350/5AX Vertical 5-Axis CNC Machining Centres

Talk to Mills about this series

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.

"*" indicates required fields
