Doosan Robotics

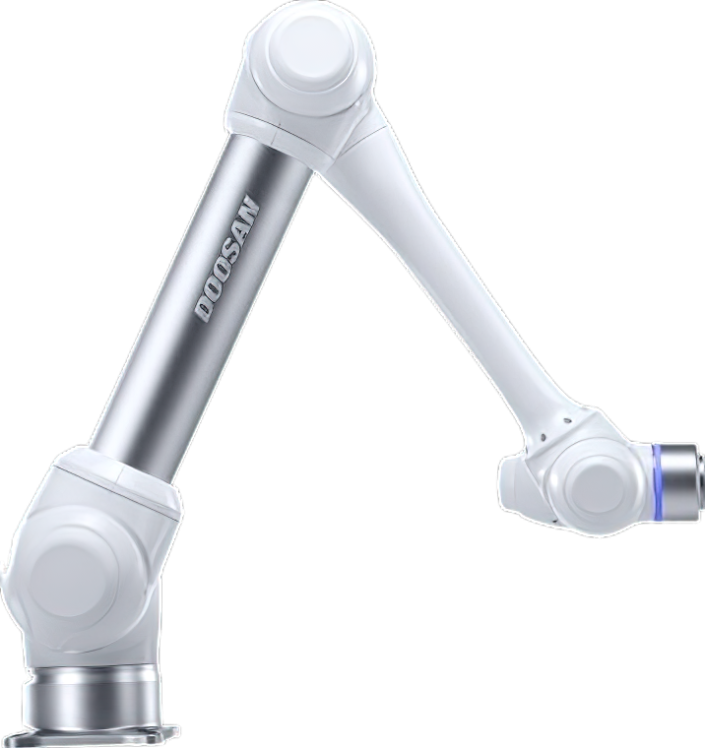

M1013 collaborative robot

Doosan Robotics’ collaborative robots are versatile, safe, easy-to-use and install, and competitively-priced. The cobot range won the prestigious REDDOT award for product design in 2017 and 2018.

The multi-purpose M1013 has a 10kg payload capacity and a 1.3metre reach radius, and is designed for a wide range of operations.

The cobot has a 6-axis articulated arm with highly-sensitive torque sensors that detect any change in force or pressure that cause it to stop.

The cobot is supplied with a state-of-the-art controller and teaching pendant, and can be installed on the floor, ceiling or wall.

Technical Specifications

Arm
Payload capacity 10kg
Reach radius 1.3m
Speed 1m/s
Repeatability +/-0.1mm
No of Axes 6
Noise rating <65dB
Protection rating IP54
Robot weight 33kg
Controller
Controller Size 490 x 390 x 287mm
Interface Ethernet (TCP/IP)/RS232/USB/GP10/Wi-Fi
Weight 9kg
Cable length (Arm/Pendant) 6.0m/4.5m
Pendant
Size 264 x 218 x 42mm
Weight/screen size 0.8kg/10.1 inch
