Product specifications

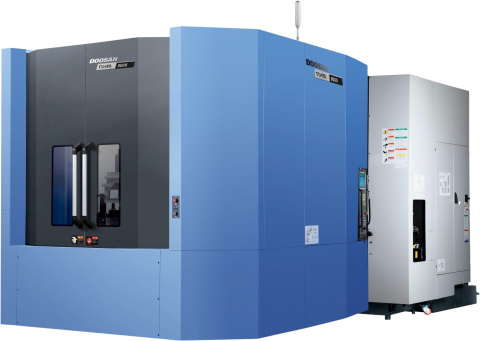

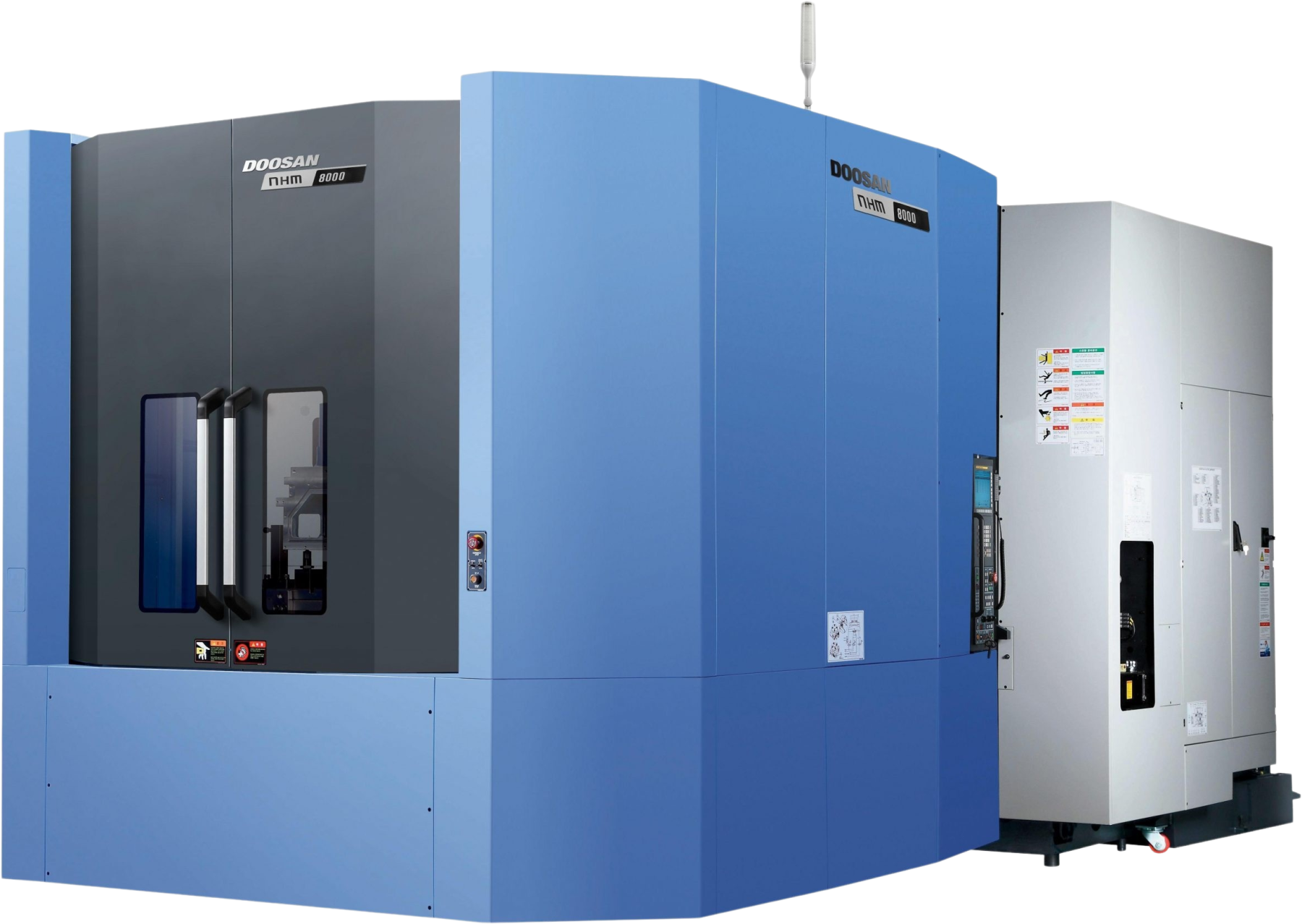

Doosan NHM 8000 Horizontal Machining Centres

NHM 8000

View
Doosan NHM 6300 Horizontal Machining Centres

NHM 6300

View
Doosan NHM 5000 Horizontal Machining Centres

NHM 5000

View
NHM 8000
NHM 6300
NHM 5000
Travels
X Axis Travel distance
1400 mm
1050 mm
800 mm
Y Axis Travel distance
1050 mm
850 mm
700 mm
Z Axis Travel distance
1200 mm
1000 mm
850 mm
X Axis Rapid Traverse
24 m/min
30 m/min
30 m/min
Y Axis Rapid Traverse
24 m/min
30 m/min
30 m/min
Z Axis Rapid Traverse
24 m/min
30 m/min
30 m/min
Spindle
Max. Spindle Speed
6000 r/min
6000 r/min
6000 r/min
Max. Spindle Power
35 kW
35 kW
25 kW
Max. Spindle Torque
1732 N·m
1732 N·m
1034 N·m
Table
Max. Table Weight
2000 kg
1200 kg
800 kg
Tools
No. of tool station
376
376
376
Product Dimensions
Length
7380mm
6410mm
6055mm
Width
4325mm
3930mm
3670mm
Height
3760mm
3495mm
3330mm
Weight
27000kg
20500kg
18500kg
Additional
Max. Workpiece Diameter
1450 mm
1050 mm
850 mm
Max. Workpiece Height
1550 mm
1350 mm
1100 mm
Max. Workpiece Weight
2000 kg
1200 kg
800 kg
Pallet Size
800 mm
630 mm
500 mm

NHM 8000

Horizontal Machining Centres

Doosan NHM 8000 Horizontal Machining Centres
  • 35kW/6000rpm spindle
  • 376ea tool stations
  • 7380 x 4325 x 3760 mm (LxWxH)
View machine

NHM 6300

Horizontal Machining Centres

Doosan NHM 6300 Horizontal Machining Centres
  • 35kW/6000rpm spindle
  • 376ea tool stations
  • 6410 x 3930 x 3495 mm (LxWxH)
View machine

NHM 5000

Horizontal Machining Centres

Doosan NHM 5000 Horizontal Machining Centres
  • 25kW/6000rpm spindle
  • 376ea tool stations
  • 6055 x 3670 x 3330 mm (LxWxH)
View machine

Compatible Control Systems

The NHM 8000 is compatible with Fanuc and Siemens.
