NHM 6300

NHM 6300(3D Video)_DN Solutions Watch this Video

Product specifications

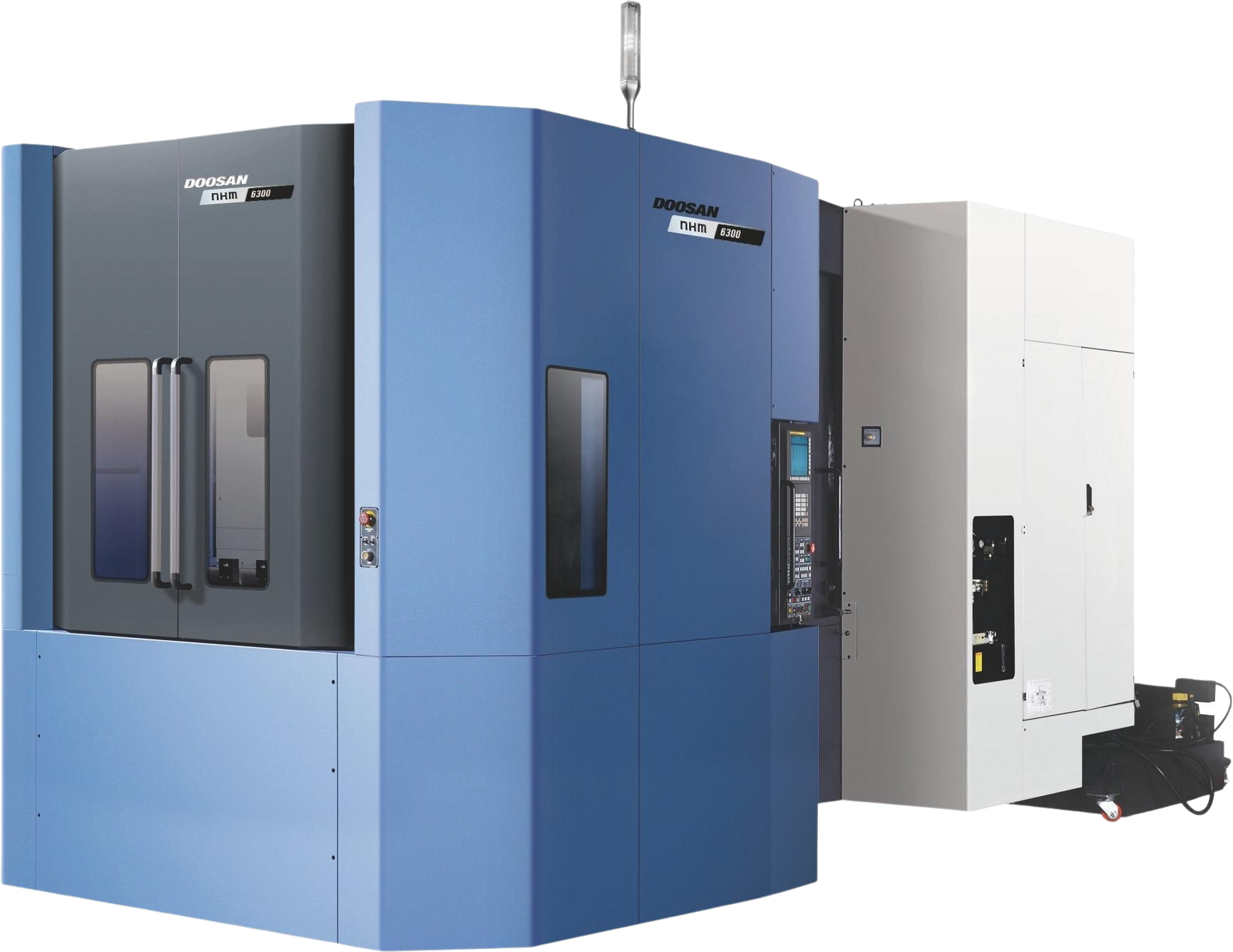

Doosan NHM 6300 Horizontal Machining Centres

NHM 6300

View
Doosan NHM 8000 Horizontal Machining Centres

NHM 8000

View
Doosan NHM 5000 Horizontal Machining Centres

NHM 5000

View
NHM 6300
NHM 8000
NHM 5000
Travels
X Axis Travel distance
1050 mm
1400 mm
800 mm
Y Axis Travel distance
850 mm
1050 mm
700 mm
Z Axis Travel distance
1000 mm
1200 mm
850 mm
X Axis Rapid Traverse
30 m/min
24 m/min
30 m/min
Y Axis Rapid Traverse
30 m/min
24 m/min
30 m/min
Z Axis Rapid Traverse
30 m/min
24 m/min
30 m/min
Spindle
Max. Spindle Speed
6000 r/min
6000 r/min
6000 r/min
Max. Spindle Power
35 kW
35 kW
25 kW
Max. Spindle Torque
1732 N·m
1732 N·m
1034 N·m
Table
Max. Table Weight
1200 kg
2000 kg
800 kg
Tools
No. of tool station
376
376
376
Product Dimensions
Length
6410mm
7380mm
6055mm
Width
3930mm
4325mm
3670mm
Height
3495mm
3760mm
3330mm
Weight
20500kg
27000kg
18500kg
Additional
Max. Workpiece Diameter
1050 mm
1450 mm
850 mm
Max. Workpiece Height
1350 mm
1550 mm
1100 mm
Max. Workpiece Weight
1200 kg
2000 kg
800 kg
Pallet Size
630 mm
800 mm
500 mm

NHM 6300

Horizontal Machining Centres

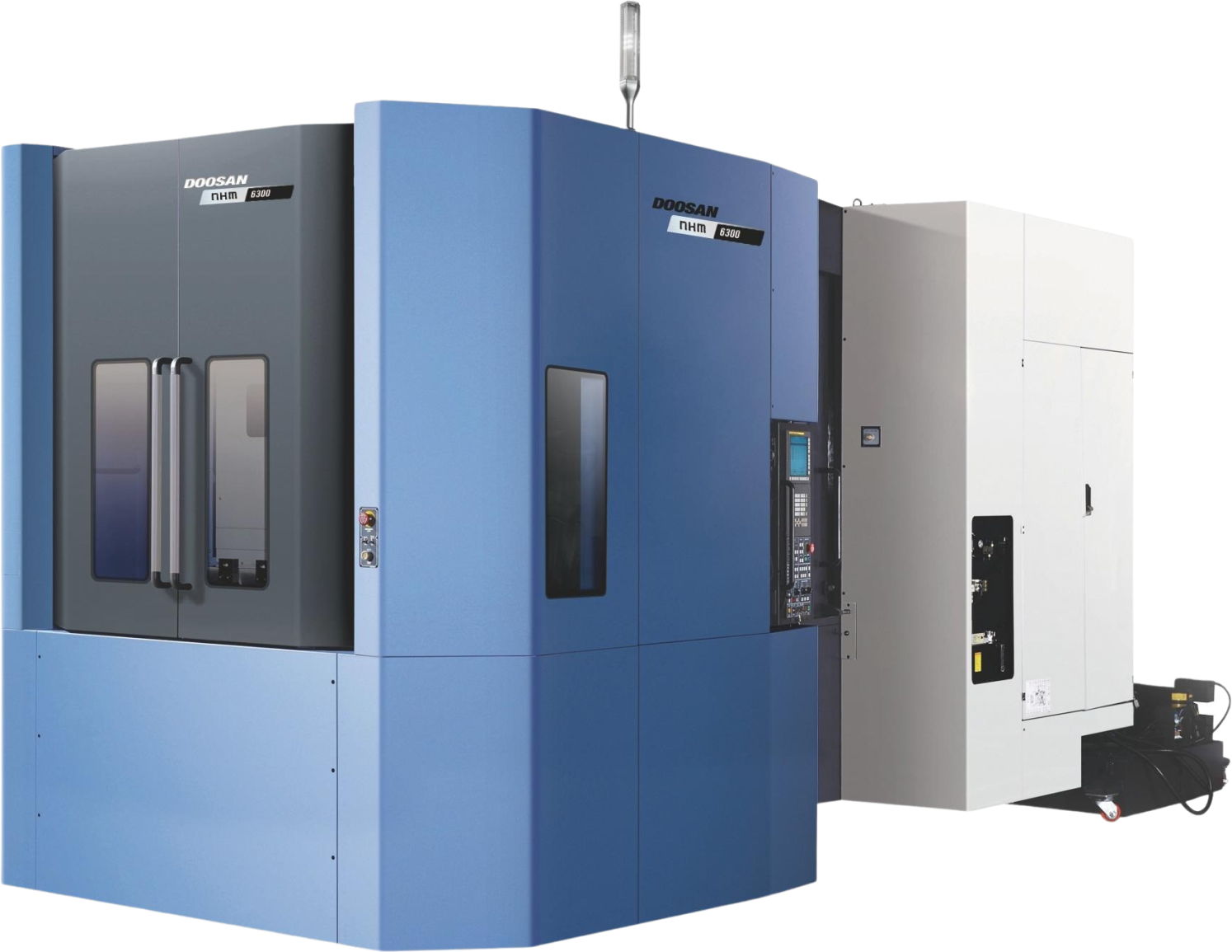

Doosan NHM 6300 Horizontal Machining Centres
  • 35kW/6000rpm spindle
  • 376ea tool stations
  • 6410 x 3930 x 3495 mm (LxWxH)
View machine

NHM 8000

Horizontal Machining Centres

Doosan NHM 8000 Horizontal Machining Centres
  • 35kW/6000rpm spindle
  • 376ea tool stations
  • 7380 x 4325 x 3760 mm (LxWxH)
View machine

NHM 5000

Horizontal Machining Centres

Doosan NHM 5000 Horizontal Machining Centres
  • 25kW/6000rpm spindle
  • 376ea tool stations
  • 6055 x 3670 x 3330 mm (LxWxH)
View machine

Compatible Control Systems

The NHM 6300 is compatible with Fanuc and Siemens.

Enquire Now

Related Case Studies

No better place to see…no better place to be!

Doosan NHM 6300 Horizontal Machining Centre

Doosan machining centres showcase Nikken’s latest and most advanced tooling technologies. The Nikken Innovation Centre located in Sheffield is impressive and at its heart is a Doosan NHM6300 Horizontal Machining Centre supplied by Mills CNC. The machine is equipped with a Nikken top mounted CNC 501TFA rotary table to demonstrate machining large titanium components.

Why choose Mills CNC

Why choose Mills CNC

Mills CNC are much more than just a Doosan distributor, our services and support ensure that you can get exactly what you need from financing options to training for your team.

CNC Solutions

Not sure what you need? Mills CNC can help you incorporate your DNM 200 5AX into a turnkey or automated solution that works perfectly for your business.

CNC Automation Systems

From automated Cobots providing machine tending operations, to a bespoke system of sensors, controls and actuators to automate a manufacturing process, Mills CNC can provide an efficient, effective automation solution for you.

Turnkey Solutions

A turnkey solution is more than just a machine, it’s a full service solution that ensures that your CNC setup is perfectly tailored to your manufacturing needs. This can often include automation for a fully streamlined process.

Doosan NHM 6300 Horizontal Machining Centres

Talk to Mills about this series

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
