Doosan Puma 2600Y II

Share this product

or copy link

DN Solutions PUMA 2600Y II - High Performance Y-axis Turning Centre
DN Solutions PUMA 2600Y II - High Performance Y-axis Turning Centre

Technical Specification

Chuck size 10 inch
Bar Capacity 81 mm
Max. Turning Diameter 376 mm
Max. Turning Length 760 mm
X Axis Rapid Traverse 30 m/min
Z Axis Rapid Traverse 30 m/min
X Axis Travel distance 260 mm
Y Axis Travel distance 105 mm
Z Axis Travel distance 830 mm
Max. Spindle Speed 4000 r/min
Max. Spindle Power 22 kW
Max. Spindle Torque 599 N·m
No. of tool station 12
Rotary Tool r/min 5000 r/min

Product Dimensions

Length 3560mm
Width 1945mm
Height 2163mm
Weight 6100kg

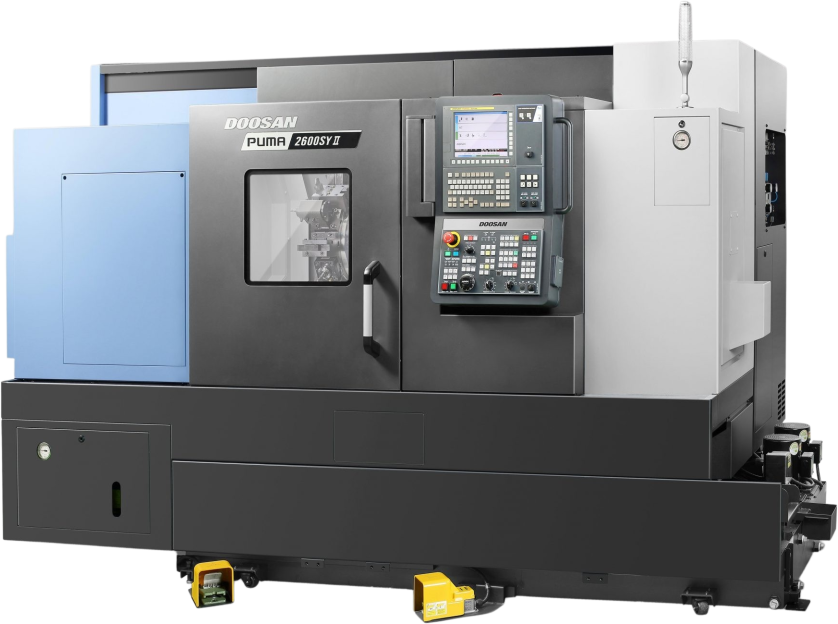

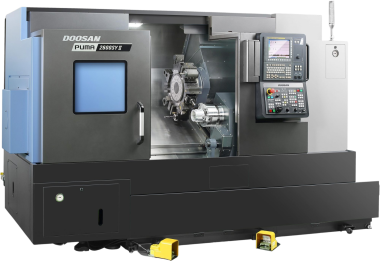

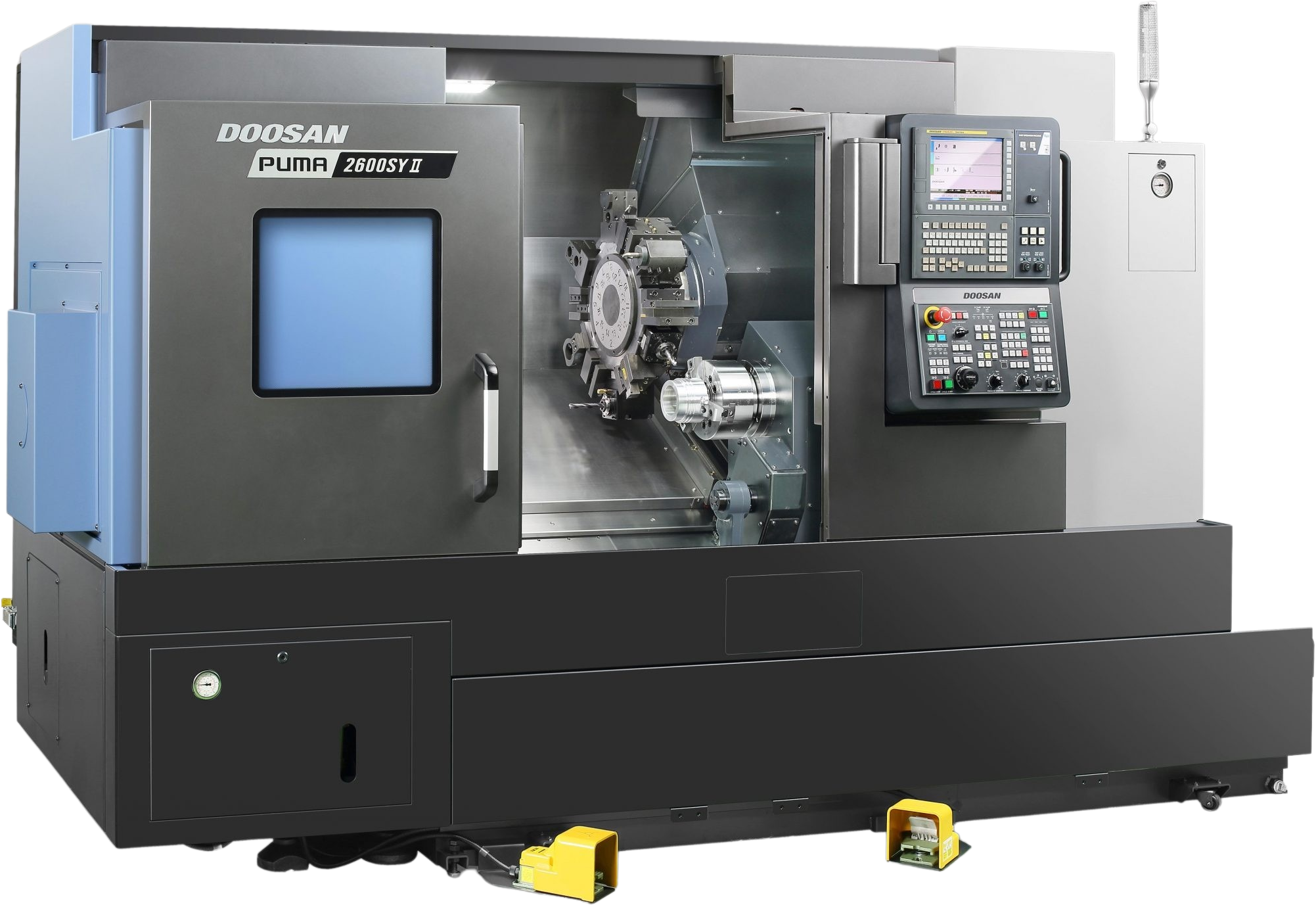

Image representative of Series and may not be the exact model

The Doosan Puma 2600Y II is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
