Puma GT2600XLA
DN Solutions (formerly Doosan) Puma GT2600XLA Horizontal Single Turret Lathe
or copy link
Technical Specification
| Chuck size | 10 inch |
|---|---|
| Bar Capacity | 81 mm |
| Max. Turning Diameter | 460 mm |
| Max. Turning Length | 1603 mm |
| X Axis Rapid Traverse | 24 m/min |
| Z Axis Rapid Traverse | 30 m/min |
| X Axis Travel distance | 265 mm |
| Z Axis Travel distance | 1625 mm |
| Max. Spindle Speed | 3500 r/min |
| Max. Spindle Power | 22 kW |
| Max. Spindle Torque | 735 N·m |
| No. of tool station | 10 |
Product Dimensions
| Length | 4855mm |
|---|---|
| Width | 2198mm |
| Height | 2030mm |
| Weight | 5900kg |

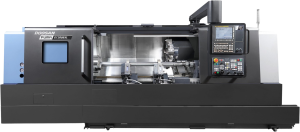

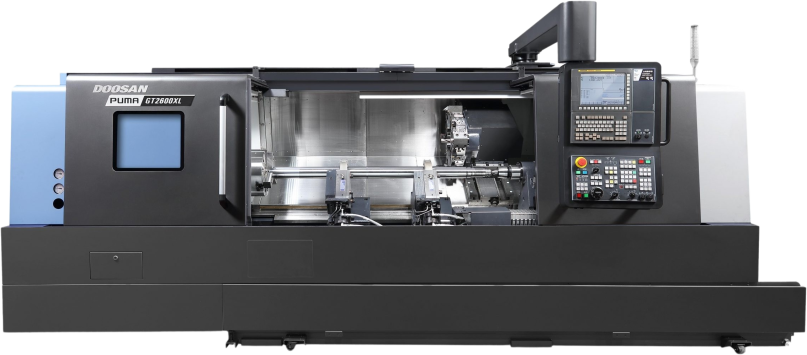

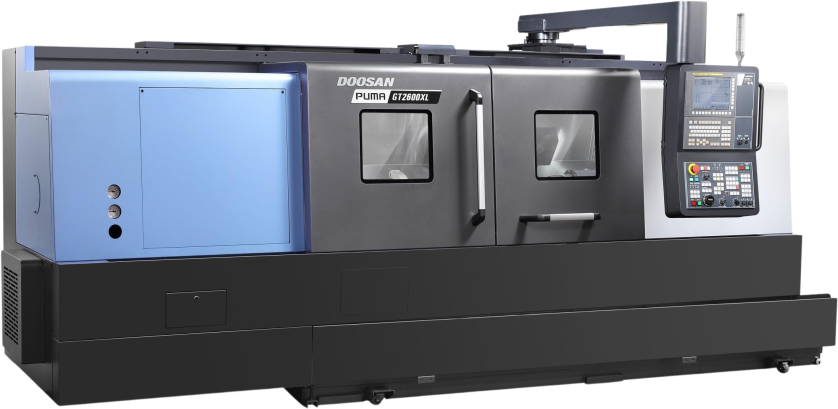

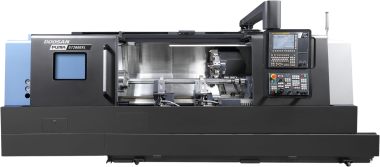

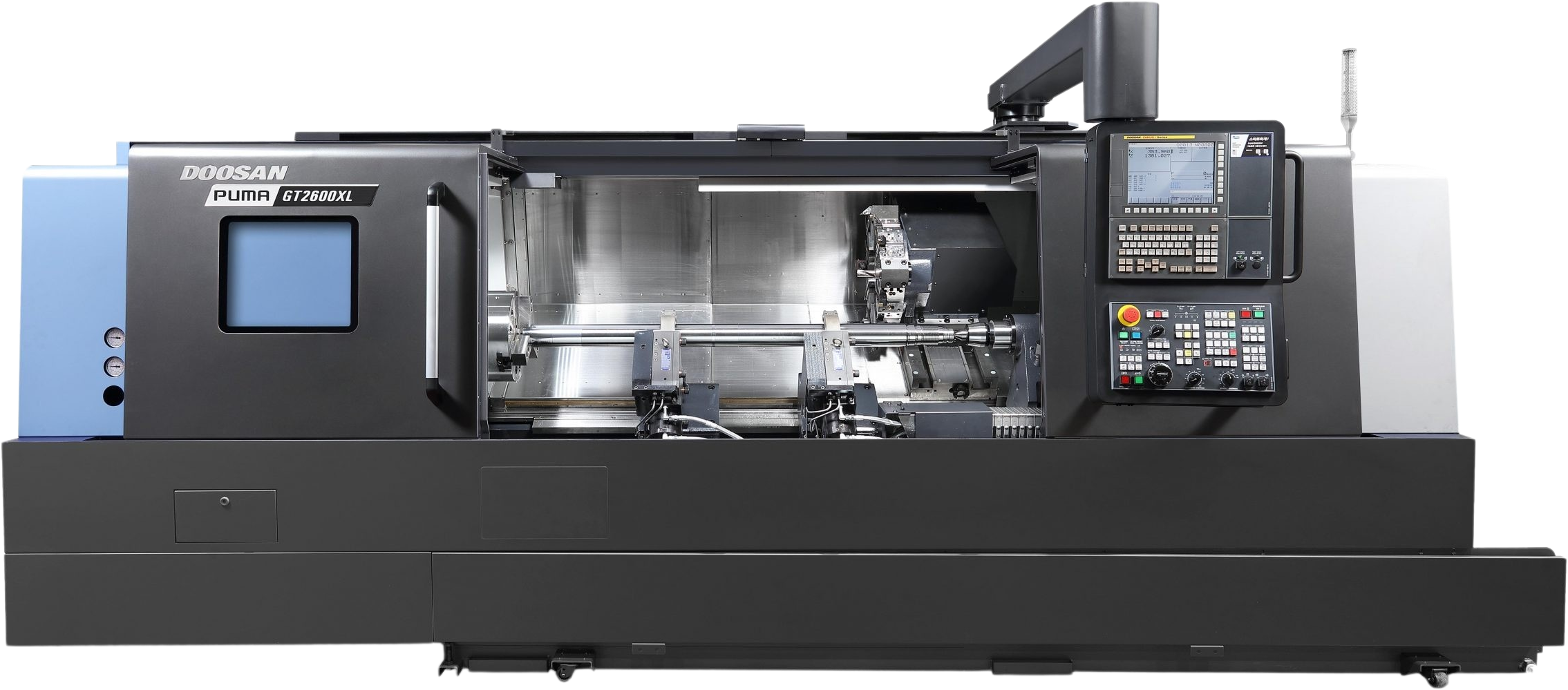

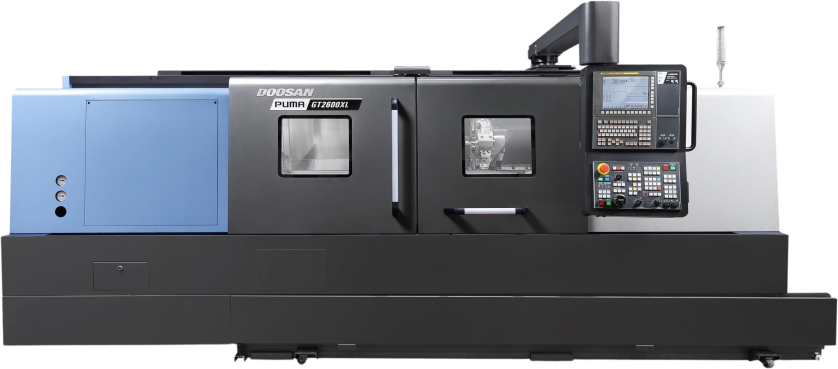

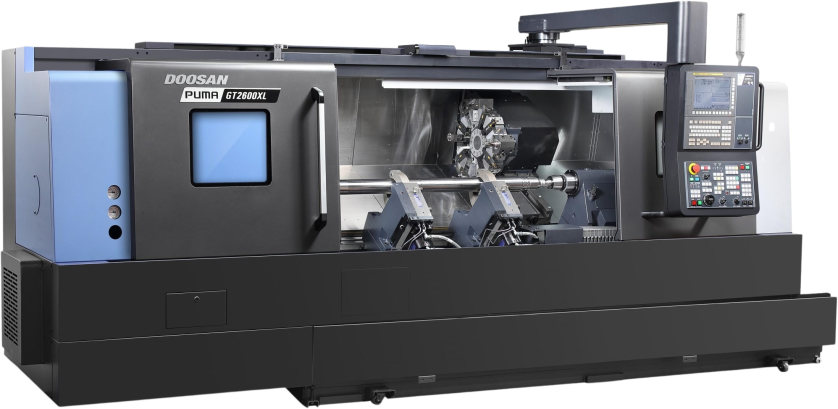

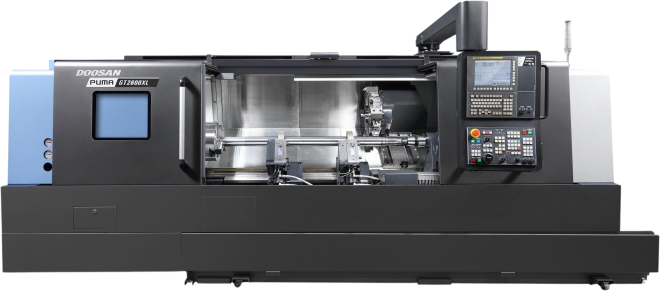

Image representative of Series and may not be the exact model
The Puma GT2600XLA is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Puma GT2600XLA
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
