Doosan DBC Series
The Doosan DBC series of boring mills, ideal for heavy cutting loads
Features
- Max Table Size: 1,980 X 2,210mm
- Max Table Load Capacity -19,960kg
- Max Spindle Diameter -160mm
or copy link
Designed for medium to heavy loads, the DBC series is designed to keep vibrations to a miniumum. The series are equipped with huge casting beds featuring M-shaped ribs, and the gear driven spindle is encased with a robust housing structure – all of which keeps vibrations minimised for excellent precision even with heavy loads.
Technical Specification
| X Axis Travel distance | 2000 - 4000mm |
|---|---|
| Y Axis Travel distance | 1500 - 2500mm |
| Z Axis Travel distance | 1200 - 2000mm |
| W Axis Travel distance | 500 - 800mm |
| Table Length | 1600 - 2200mm |
| Table Width | 1400 - 2000mm |
| Max. Table Weight | 7000 - 20000kg |
| Max. Spindle Speed | 2000 - 6000r/min |
| Max. Spindle Power | 26 - 37kW |
| Max. Spindle Torque | 600 - 3900N·m |
| No. of tool station | 90 |
Series Dimensions
| Length | 5520 - 9970mm |
|---|---|
| Width | 5900 - 8700mm |
| Height | 4020 - 6150mm |
| Weight | 29000 - 49000kg |

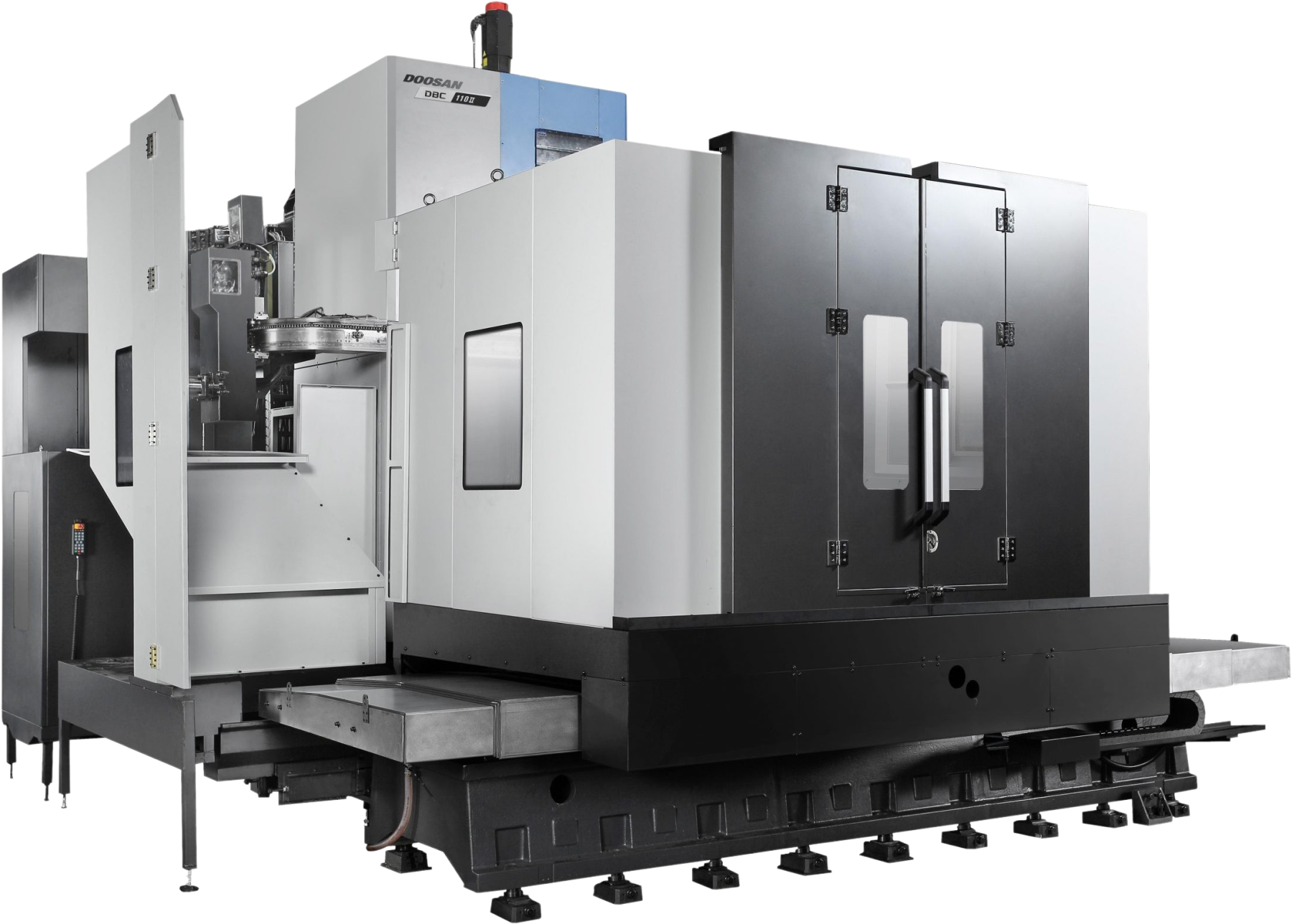

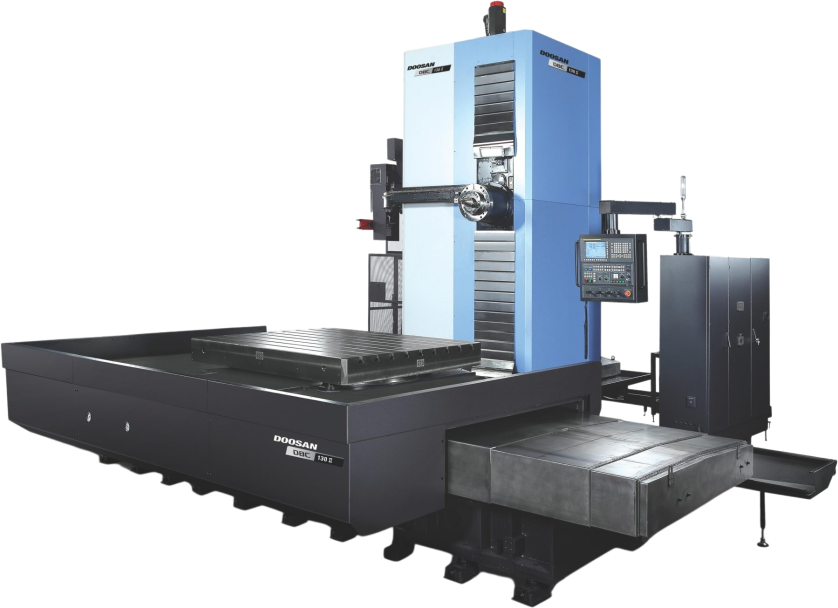

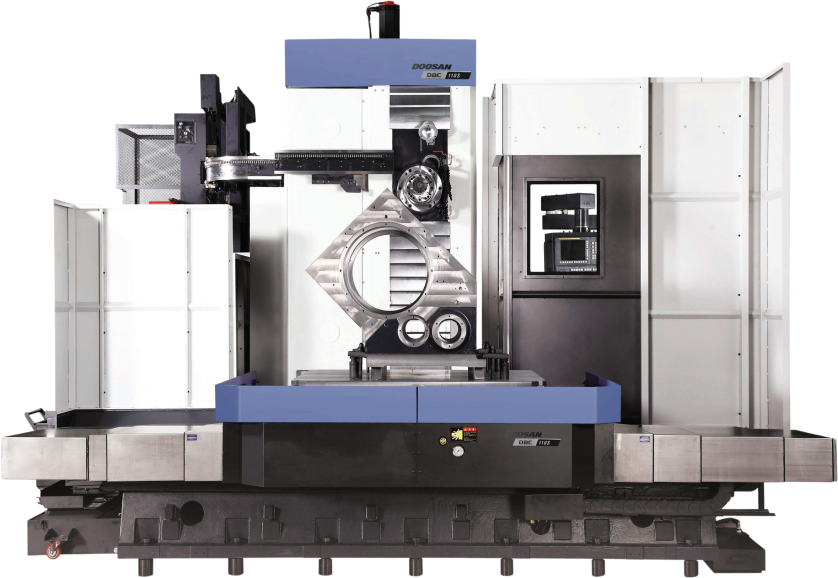

Image representative of Series and may not be the exact model
The Doosan DBC Series is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about this series
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Some things are just meant to be!
Doosan DBC 160 Horizontal Boring Machine
When materials processing equipment manufacturer Terex Coalville found out that Doosan manufactured a horizontal boring machine to its exact specification it was game over - Mills CNC supplied the with a Doosan DBC160 horizontal boring machine.
