DBC 250L II

DBC 130L | DN Solutions Machine Tools Watch this Video

Product specifications

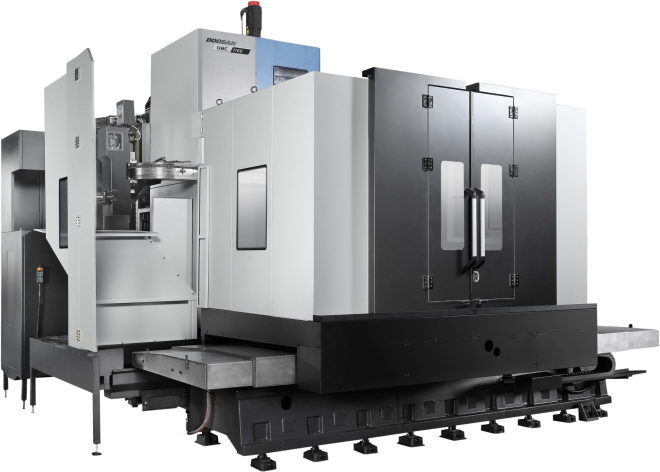

Doosan DBC 110 II NC Boring Machines

DBC 250L II

View
Doosan DBC 110 II NC Boring Machines

DBC 250 II

View
Doosan DBC 160 NC Boring Machines

DBC 160

View
Doosan DBC 130 II NC Boring Machines

DBC 130L II

View
Doosan DBC 130 II NC Boring Machines

DBC 130 II

View
Doosan DBC 130SL NC Boring Machines

DBC 130SL

View
Doosan DBC 130S NC Boring Machines

DBC 130S

View
Doosan DBC 110 II NC Boring Machines

DBC 110 II

View
Doosan DBC 110S NC Boring Machines

DBC 110S

View
DBC 250L II
DBC 250 II
DBC 160
DBC 130L II
DBC 130 II
DBC 130SL
DBC 130S
DBC 110 II
DBC 110S
Travels
X Axis Travel distance
4000 mm
3000 mm
4000 mm
4000 mm
3000 mm
2500 mm
2000 mm
2500 mm
2000 mm
Y Axis Travel distance
2500 mm
2000 mm
2500 mm
2500 mm
2000 mm
2000 mm
1500 mm
2000 mm
1500 mm
Z Axis Travel distance
2000 mm
1600 mm
1600 mm
2000 mm
1600 mm
1500 mm
1200 mm
1500 mm
1200 mm
Table
Table Length
1800 mm
1800 mm
2200 mm
1800 mm
1800 mm
1800 mm
1600 mm
1800 mm
1600 mm
Table Width
1600 mm
1600 mm
2000 mm
1600 mm
1600 mm
1400 mm
1400 mm
1400 mm
1400 mm
Max. Table Weight
15000 kg
15000 kg
20000 kg
15000 kg
15000 kg
10000 kg
8000 kg
10000 kg
7000 kg
Spindle
Max. Spindle Speed
6000 r/min
6000 r/min
2000 r/min
3000 r/min
3000 r/min
2500 r/min
2500 r/min
4000 r/min
3000 r/min
Max. Spindle Power
26 kW
26 kW
26 kW
26 kW
26 kW
37 kW
37 kW
26 kW
26 kW
Max. Spindle Torque
600 N·m
600 N·m
3900 N·m
3383 N·m
3383 N·m
3028 N·m
3028 N·m
2827 N·m
1104 N·m
Tools
No. of tool station
90
90
90
90
90
90
90
90
90
Product Dimensions
Length
9970mm
8970mm
9000mm
9970mm
8970mm
7450mm
5520mm
6980mm
5520mm
Width
8090mm
7640mm
8700mm
8090mm
7660mm
6800mm
5900mm
7470mm
5900mm
Height
5410mm
4910mm
6150mm
5410mm
4910mm
4860mm
4020mm
4870mm
4020mm
Weight
48000kg
43000kg
49000kg
48000kg
43000kg
36000kg
30000kg
36000kg
29000kg
Additional
W Axis Travel distance
500 mm
500 mm
800 mm
600 mm
600 mm
600 mm
600 mm
550 mm
500 mm

DBC 250L II

NC Boring Machines

Doosan DBC 110 II NC Boring Machines
  • 26kW/6000rpm spindle
  • 90ea tool stations
  • 9970 x 8090 x 5410 mm (LxWxH)
View machine

DBC 250 II

NC Boring Machines

Doosan DBC 110 II NC Boring Machines
  • 26kW/6000rpm spindle
  • 90ea tool stations
  • 8970 x 7640 x 4910 mm (LxWxH)
View machine

DBC 160

NC Boring Machines

Doosan DBC 160 NC Boring Machines
  • 26kW/2000rpm spindle
  • 90ea tool stations
  • 9000 x 8700 x 6150 mm (LxWxH)
View machine

DBC 130L II

NC Boring Machines

Doosan DBC 130 II NC Boring Machines
  • 26kW/3000rpm spindle
  • 90ea tool stations
  • 9970 x 8090 x 5410 mm (LxWxH)
View machine

DBC 130 II

NC Boring Machines

Doosan DBC 130 II NC Boring Machines
  • 26kW/3000rpm spindle
  • 90ea tool stations
  • 8970 x 7660 x 4910 mm (LxWxH)
View machine

DBC 130SL

NC Boring Machines

Doosan DBC 130SL NC Boring Machines
  • 37kW/2500rpm spindle
  • 90ea tool stations
  • 7450 x 6800 x 4860 mm (LxWxH)
View machine

DBC 130S

NC Boring Machines

Doosan DBC 130S NC Boring Machines
  • 37kW/2500rpm spindle
  • 90ea tool stations
  • 5520 x 5900 x 4020 mm (LxWxH)
View machine

DBC 110 II

NC Boring Machines

Doosan DBC 110 II NC Boring Machines
  • 26kW/4000rpm spindle
  • 90ea tool stations
  • 6980 x 7470 x 4870 mm (LxWxH)
View machine

DBC 110S

NC Boring Machines

Doosan DBC 110S NC Boring Machines
  • 26kW/3000rpm spindle
  • 90ea tool stations
  • 5520 x 5900 x 4020 mm (LxWxH)
View machine

Compatible Control Systems

The DBC 250L II is compatible with Fanuc, Siemens and Heidenhain.
