Doosan Lynx 2100G Series

Compact Turning Centre

  • High Rigidity machine structure
  • Powerful cutting performance
  • Compact, efficient design and configuration
  • Integrated thermal compensation and cooling systems
Share this series

or copy link

DOOSAN l Application Focus l Lynx 2100G l Bearing Automation Solution
DOOSAN l Application Focus l Lynx 2100G l Bearing Automation Solution

High Productivity Gang Type Compact Turning Centre for high-speed precision machining of metal parts up to 170mm diameter and up to 330 mm length. The series offers enhanced long term machining stability and reliability, delivering high productivity and accuracy during long and extended machining runs. The series can be easily automated to improve performance even further.

Technical Specification

Chuck size 6inch
Bar Capacity 51mm
Max. Turning Diameter 170mm
Max. Turning Length 330mm
X Axis Rapid Traverse 30m/min
Z Axis Rapid Traverse 36m/min
X Axis Travel distance 450mm
Z Axis Travel distance 340mm
Max. Spindle Speed 6000r/min
Max. Spindle Power 18kW
Max. Spindle Torque 118N·m

Series Dimensions

Length 2090mm
Width 1400mm
Height 1935mm
Weight 2900kg

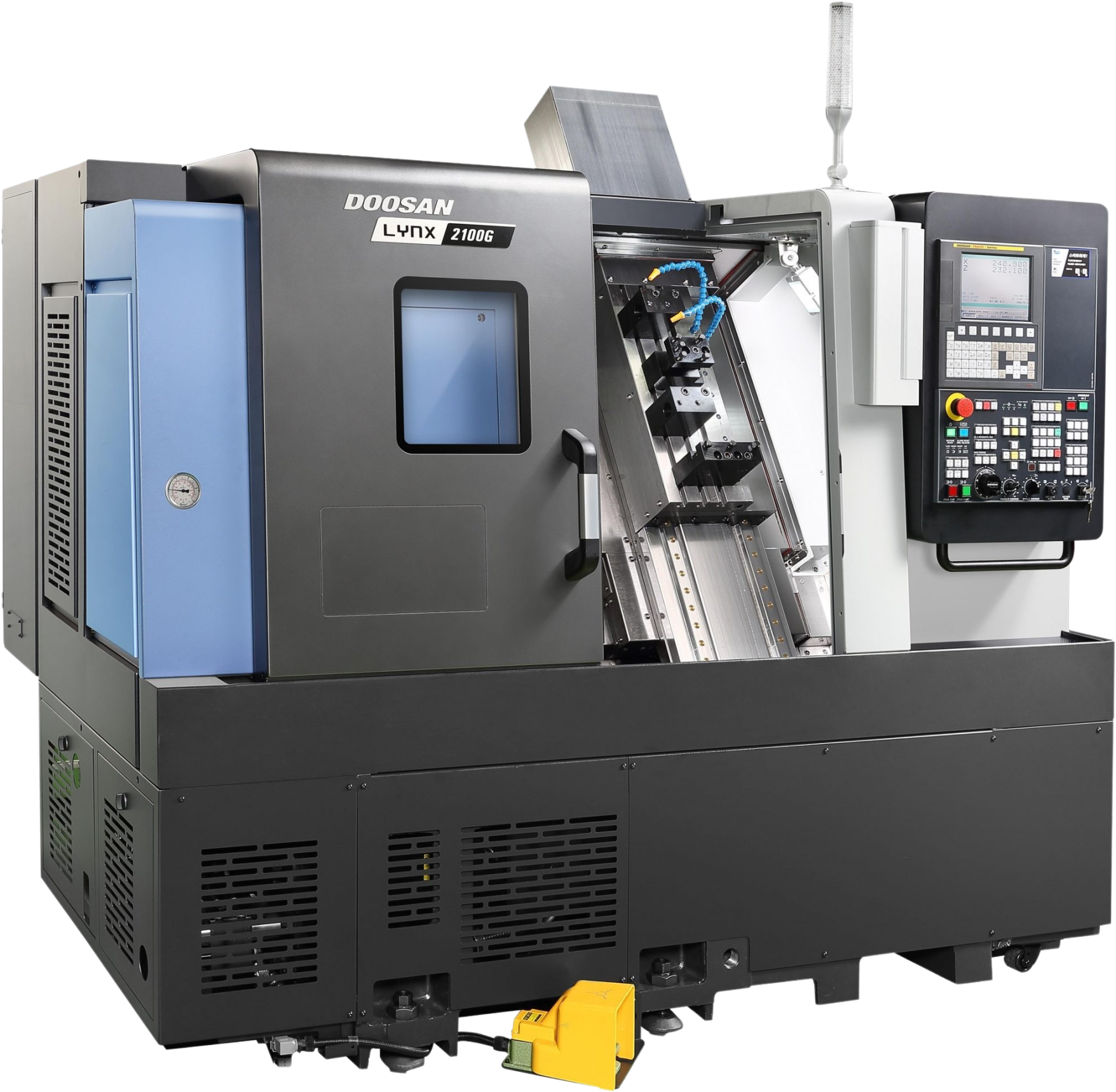

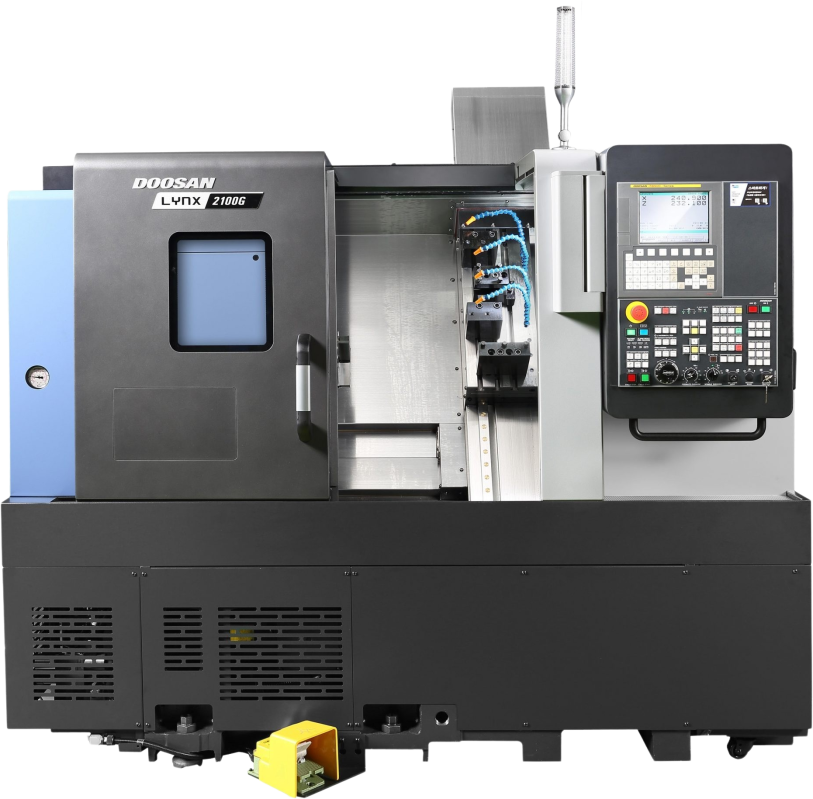

Image representative of Series and may not be the exact model

The Doosan Lynx 2100G Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
