Doosan Puma V8300 Series

Doosan Puma V8300 vertical turret lathes

Features
  • 37kW/2000rpm main spindle
  • 15” chuck
  • Maximum turning length: 750mm
Share this series

or copy link

PUMA V8300M
PUMA V8300M

Doosan’s Puma vertical turning lathes are designed for their long-term accuracy and heavy-duty cutting capabilities. They have a rigid box guide-way design and build, and are equipped with gearbox driven technology for fast and responsive machining.

V8300 vertical turning lathes have a maximum turning diameter of 830mm and a 750mm maximum turning length.

The V8300M models have driven tools (23kW/4000rpm). Twin spindle models (SP) also available.

Technical Specification

Chuck size 15inch
Max. Turning Diameter 830mm
Max. Turning Length 780mm
X Axis Rapid Traverse 20m/min
Z Axis Rapid Traverse 20m/min
Max. Spindle Speed 2000r/min
Max. Spindle Power 37kW
Max. Spindle Torque 2592N·m
No. of tool station 12
Rotary Tool r/min 4000r/min
X Axis Travel distance 495mm
Z Axis Travel distance 780mm

Series Dimensions

Length 2005mm
Width 2715mm
Height 3636mm
Weight 9400 - 9500kg

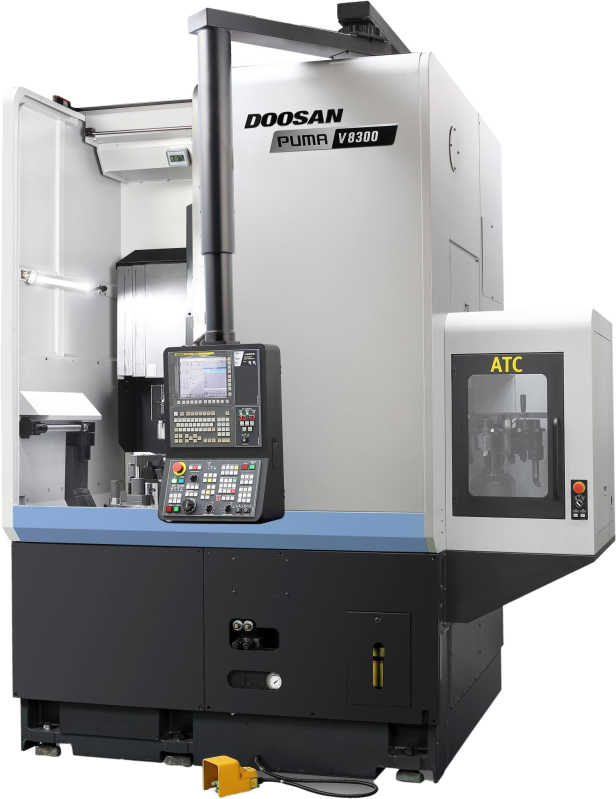

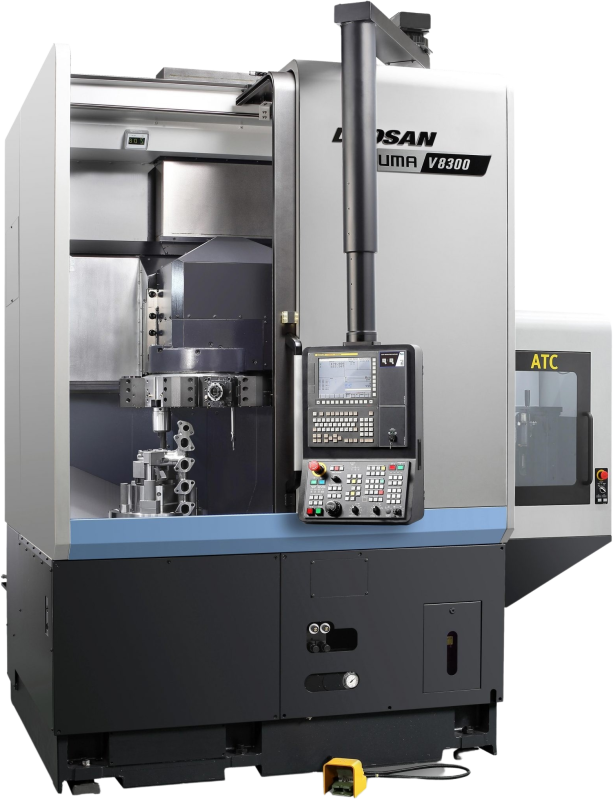

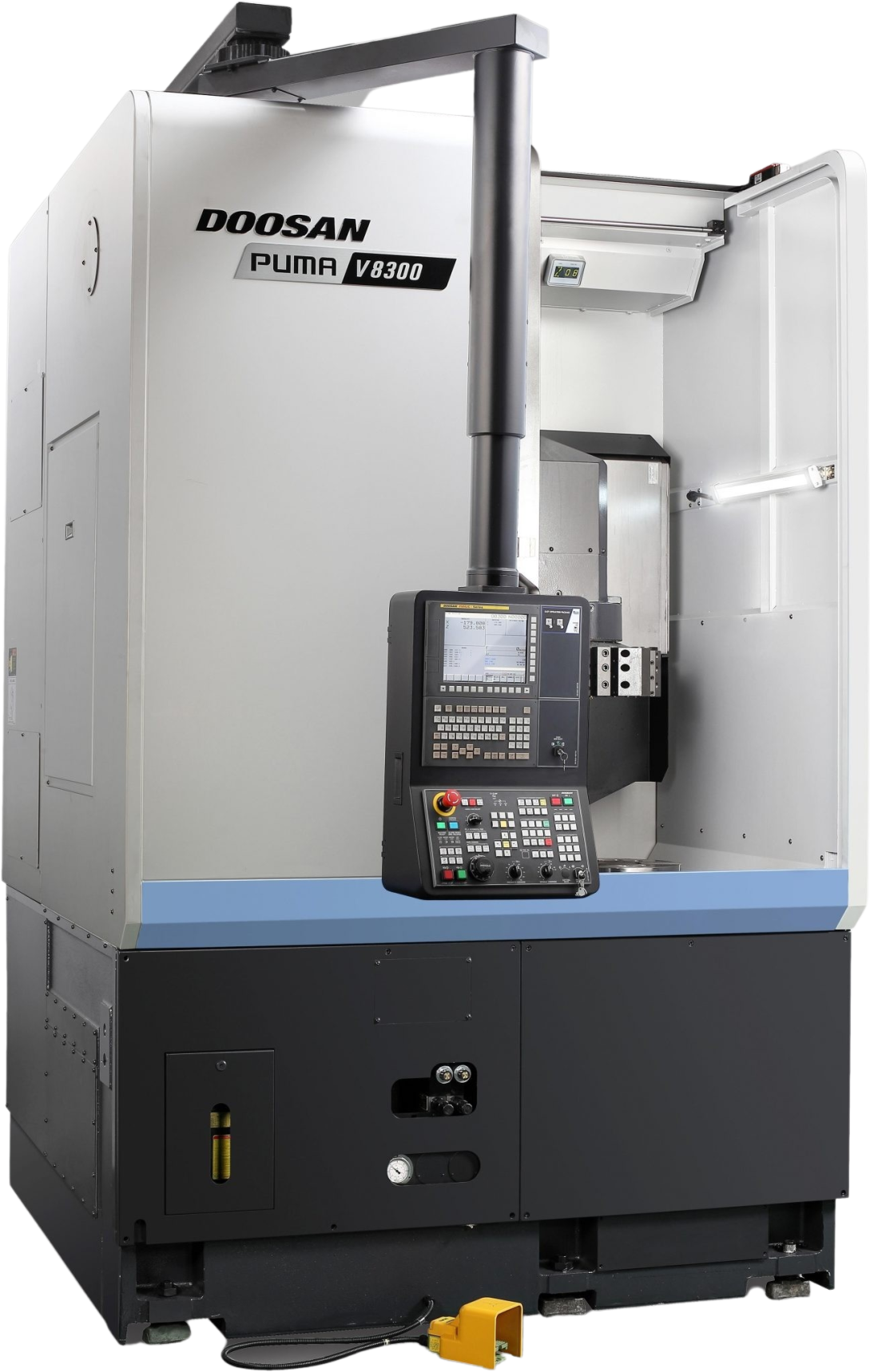

Image representative of Series and may not be the exact model

The Doosan Puma V8300 Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
