Doosan Puma VT Series

The Doosan Puma VT series of vertical turning centers are built for power

Features
  • Chuck Size - 1,010mm
  • Max Turning Diameter - 1,100mm
  • Max Part Height - 1,000mm
Share this series

or copy link

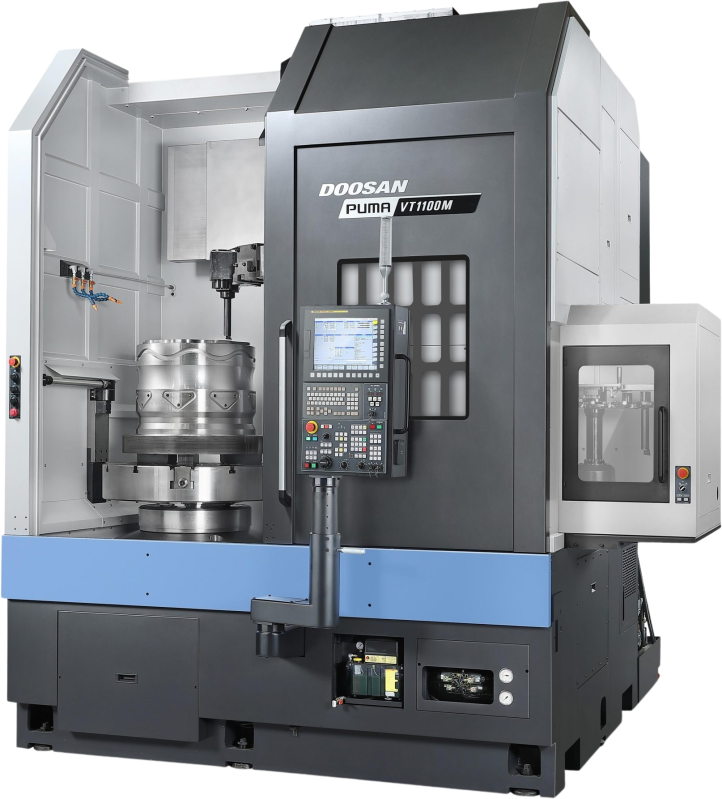

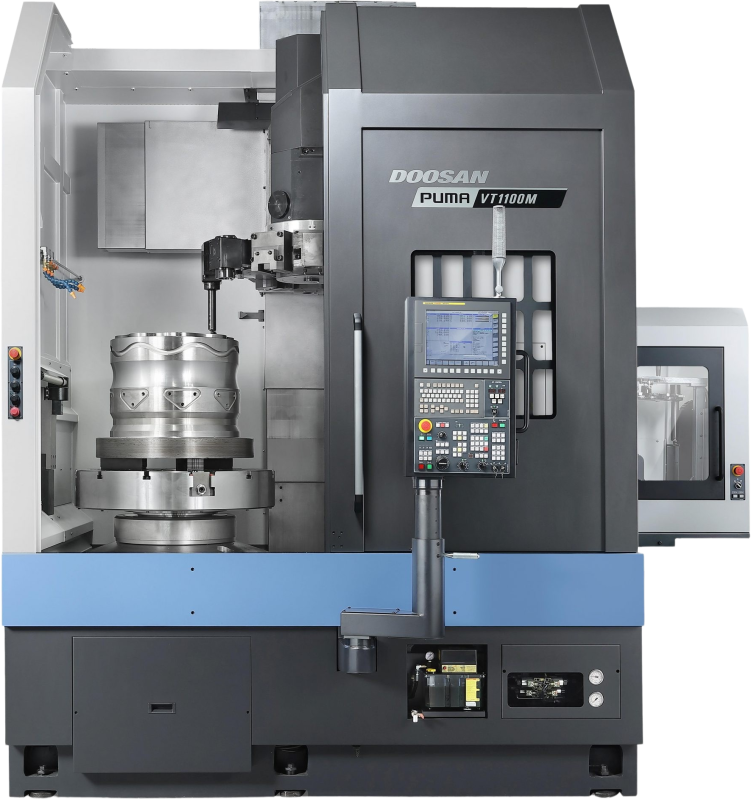

PUMA VT1100M with Automatic tool changer
PUMA VT1100M with Automatic tool changer

With a 55 kW geared head spindle that has 850 RPM and outputs 6,385 Nm of torque, the Doosan PUMA VT series produce a phenomenal amount of power. To mitigate the impact of so much power, the VT series includes a hugely robust one-piece base and widened way column for incredible vibration absorption, providing you both power and precision.

Technical Specification

Chuck size 24 - 32inch
Max. Turning Diameter 900 - 1100mm
Max. Turning Length 850 - 1000mm
X Axis Rapid Traverse 20m/min
Z Axis Rapid Traverse 20m/min
Max. Spindle Speed 850 - 1800r/min
Max. Spindle Power 45 - 60kW
Max. Spindle Torque 4443 - 6385N·m
No. of tool station 12
Rotary Tool r/min 3000r/min
X Axis Travel distance 470 - 580mm
Z Axis Travel distance 850 - 1000mm

Series Dimensions

Length 2130 - 2830mm
Width 3050 - 3305mm
Height 3621 - 4012mm
Weight 12500 - 22050kg

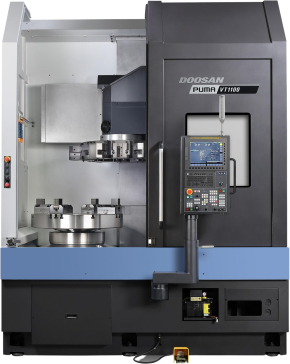

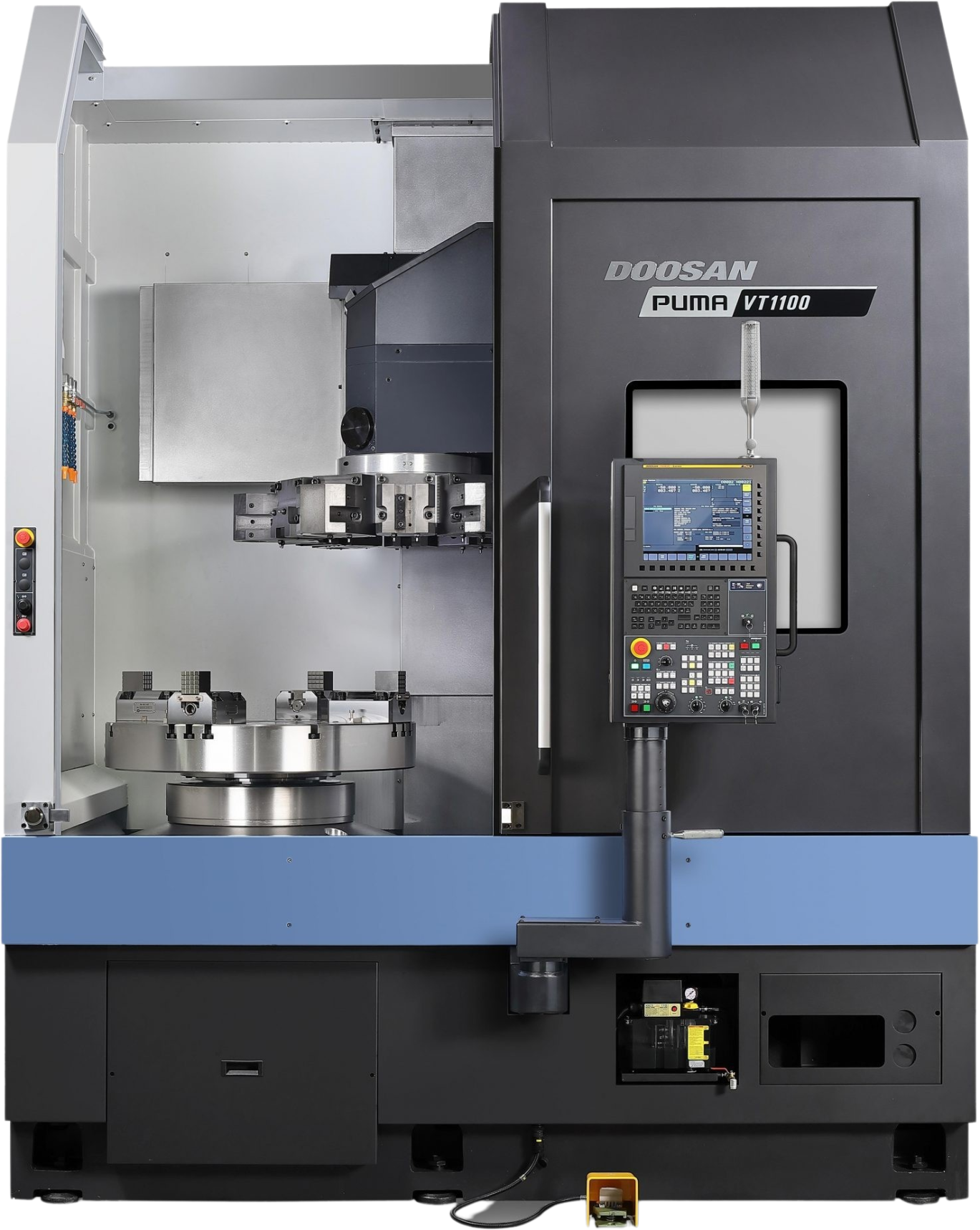

Image representative of Series and may not be the exact model

The Doosan Puma VT Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
