Doosan Puma TW Series

Doosan twin-spindle chucking lathes and gantry loader machines

Features
  • 18.5kW/3,500rpm spindles
  • Up to 170mm max turning length
  • Up to 360mm maximum turning diameter
  • Gantry loader models available
Share this series

or copy link

PUMA TW2100-GL_Front Flange
PUMA TW2100-GL_Front Flange

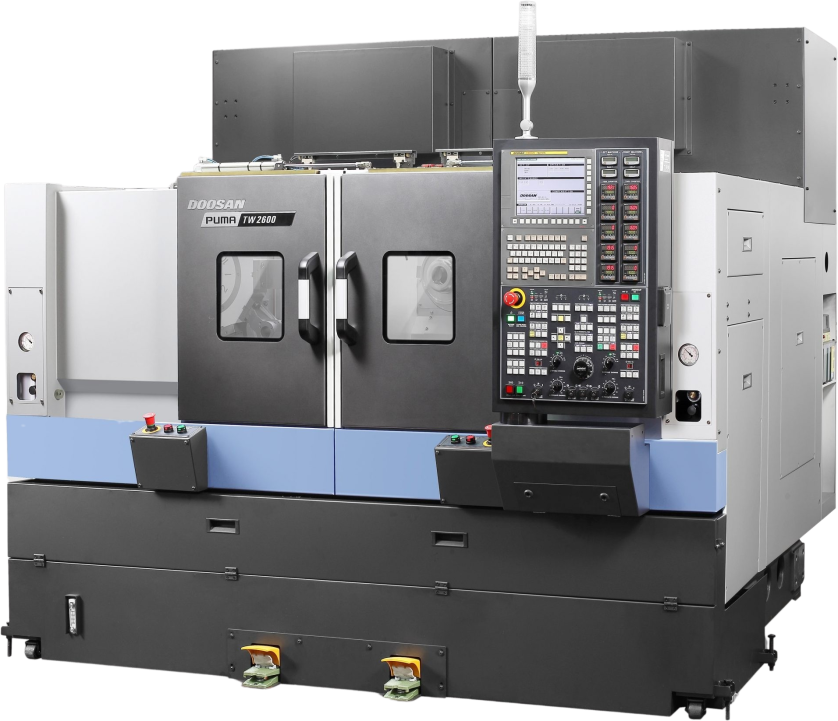

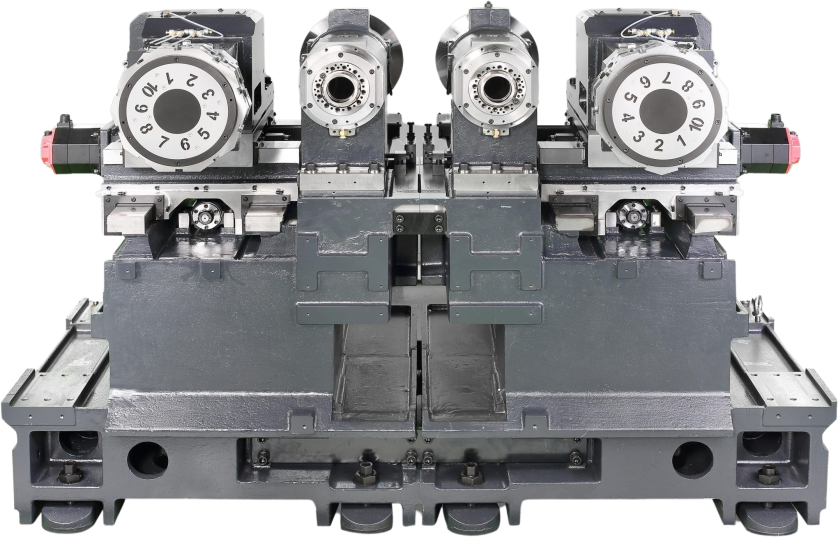

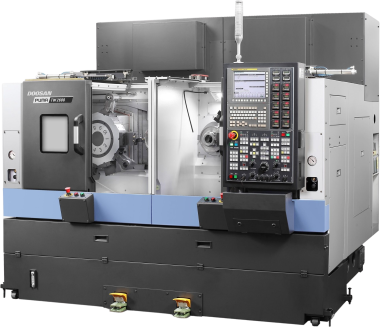

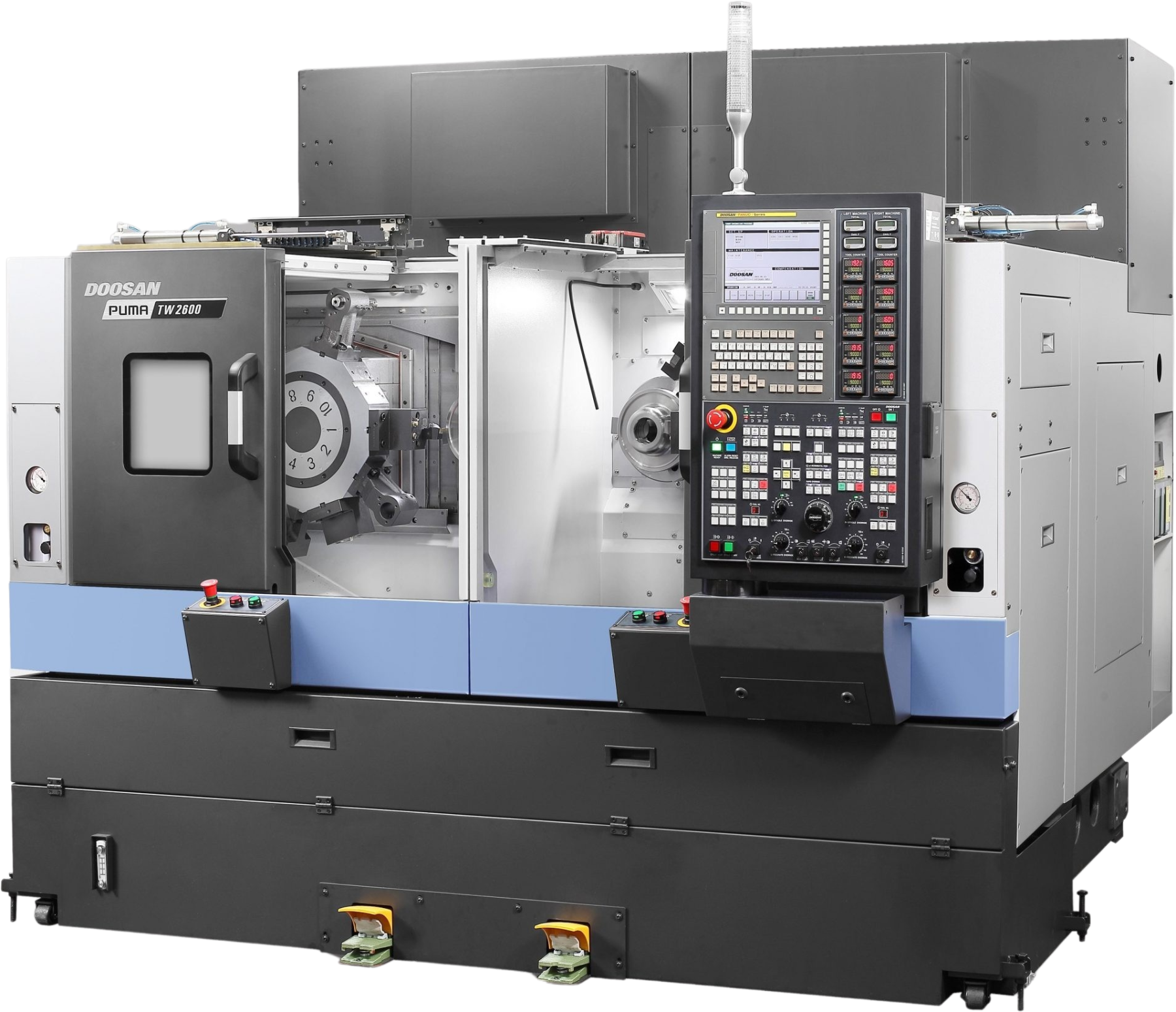

Doosan’s high-productivity twin-spindle chucking lathe range is available in two different sizes – the 8” chuck TW 2100 and 10” chuck TW 2600 series (6″ and 12″ options available). The machines are equipped with high torque spindles and servo-driven turrets.

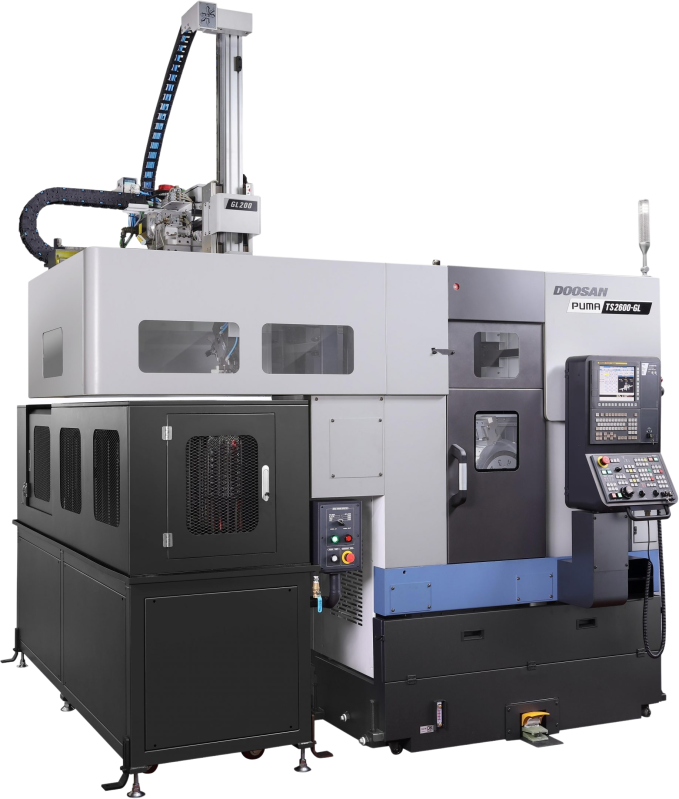

Both series include models with 3-axis servo-driven high-speed gantry loaders for fast workpiece loading and unloading operations.

Technical Specification

Chuck size 8 - 10inch
Max. Turning Diameter 240 - 360mm
Max. Turning Length 128 - 170mm
X Axis Rapid Traverse 24m/min
Z Axis Rapid Traverse 24m/min
Max. Spindle Speed 3500 - 4500r/min
Max. Spindle Power 15 - 18kW
Max. Spindle Torque 127 - 202N·m
No. of tool station 8 - 10
Rotary Tool r/min 5000 - 6000r/min
X Axis Travel distance 135 - 190mm
Z Axis Travel distance 160 - 180mm

Series Dimensions

Length 1555 - 2520mm
Width 2061 - 2098mm
Height 2150 - 2278mm
Weight 4650 - 7200kg

Image representative of Series and may not be the exact model

The Doosan Puma TW Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
