Doosan Puma TL Series

Doosan twin turret – single spindle turning centers

Features
  • Upper and lower turret: 12/8 position
  • Long bed and driven tool models available
Share this series

or copy link

PUMA TL2500L _shaft
PUMA TL2500L _shaft

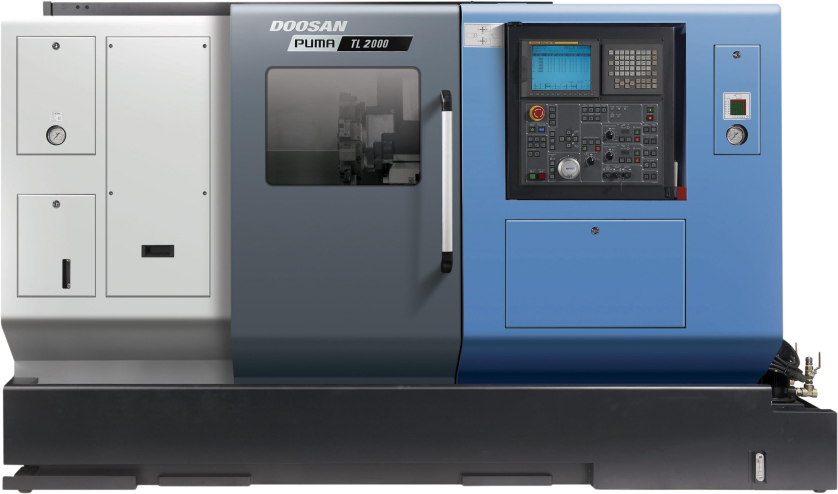

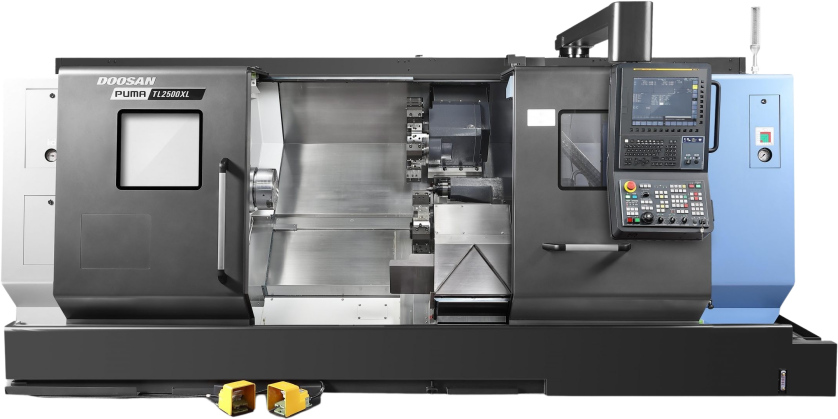

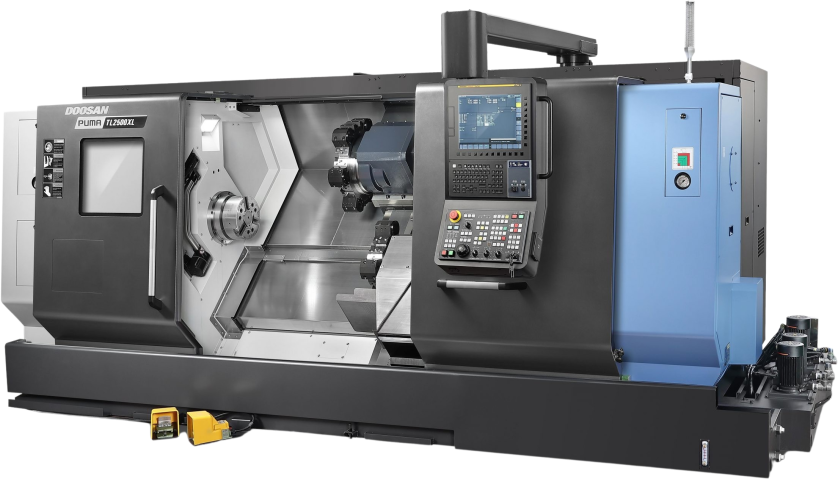

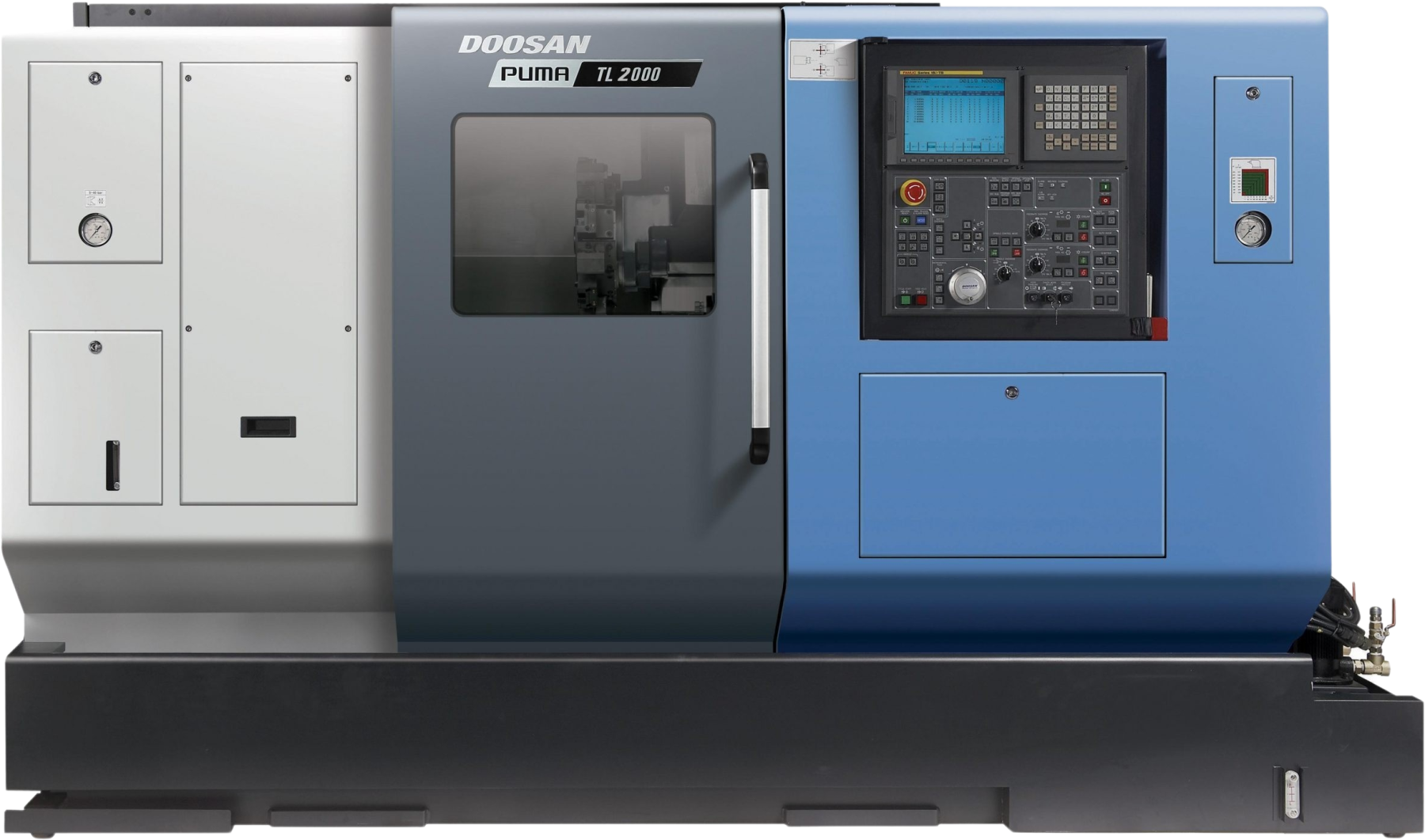

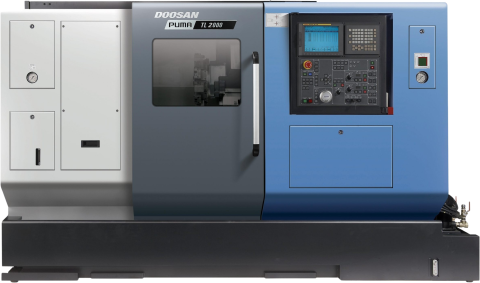

Doosan’s range of Twin-Turret, Single-Spindle turning centers give precision manufacturers increased productivity and unbeatable accuracy and reliability. There are two models in the range – the TL 2000 and the larger TL 2500.

Each model has a number of variations enabling customers to select machines with long beds and driven tools.

The TL 2000 range has a 8” chuck/65mm bar capacity and the TL 2500 range a 10”chuck/76mm bar capacity.

The TL 2000 has a 22kW/5,000 rpm spindle and the TL 2500 a 26kW 4,000rpm spindle. Both have a 12 position upper and an 8 position lower turret.

Technical Specification

Chuck size 8 - 10inch
Max. Turning Diameter 350 - 370mm
Max. Turning Length 600 - 1250mm
X Axis Rapid Traverse 20m/min
Z Axis Rapid Traverse 24m/min
Max. Spindle Speed 4000 - 5000r/min
Max. Spindle Torque 433 - 476N·m
No. of tool station 12
Rotary Tool r/min 5000r/min
X Axis Travel distance 250mm
Z Axis Travel distance 650 - 1300mm

Series Dimensions

Length 3250 - 4510mm
Width 2118 - 2630mm
Height 1930 - 2115mm
Weight 7200 - 9600kg

Image representative of Series and may not be the exact model

The Doosan Puma TL Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
