Doosan NHP Series

Doosan NHP Horizontal Machining centers

  • Pallet Size - 400 - 800mm
  • Spindle taper - 40, 50
  • Spindle RPM - 6,000 - 20,000
Share this series

or copy link

NHP 4000 / 5000 I High-speed compact HMC I Doosan Machine Tools
NHP 4000 / 5000 I High-speed compact HMC I Doosan Machine Tools

Doosan NHP Horizontal Machining centers are fast, powerful and accurate and provide customers with excellent cutting performance and high productivity.

The machines have fast rapid axis movement (60m/min), and are equipped with advanced spindle technology (BT 50 45kW/10,000rpm), large tool changers (up to 376 tools), and a twin pallet changer.

There are five machines in the range – the NHP 4000, NHP5000, NHP 5500, NHP 6300 and NHP 8000.

Technical Specification

X Axis Travel distance 560 - 1400mm
Y Axis Travel distance 640 - 1200mm
Z Axis Travel distance 660 - 1370mm
Max. Workpiece Diameter 630 - 1450mm
Max. Workpiece Height 900 - 1550mm
Max. Workpiece Weight 400 - 2000kg
X Axis Rapid Traverse 50 - 60m/min
Y Axis Rapid Traverse 50 - 60m/min
Z Axis Rapid Traverse 50 - 60m/min
Max. Spindle Speed 10000 - 15000r/min
Max. Spindle Power 30 - 45kW
Max. Spindle Torque 229 - 600N·m
Tool Taper
Pallet Size 400 - 800mm
Max. Table Weight 400 - 2000kg
No. of tool station 275 - 376

Series Dimensions

Length 4950 - 7878mm
Width 2300 - 4375mm
Height 2690 - 3803mm
Weight 9700 - 27000kg

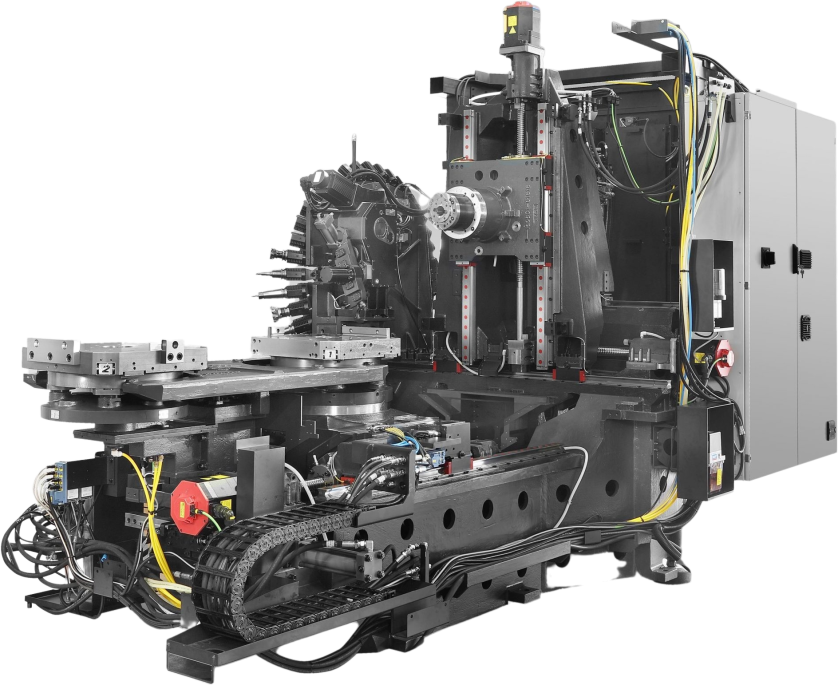

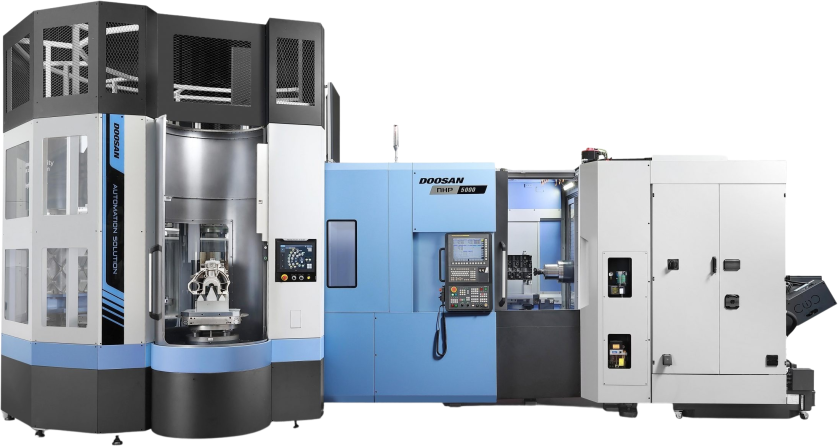

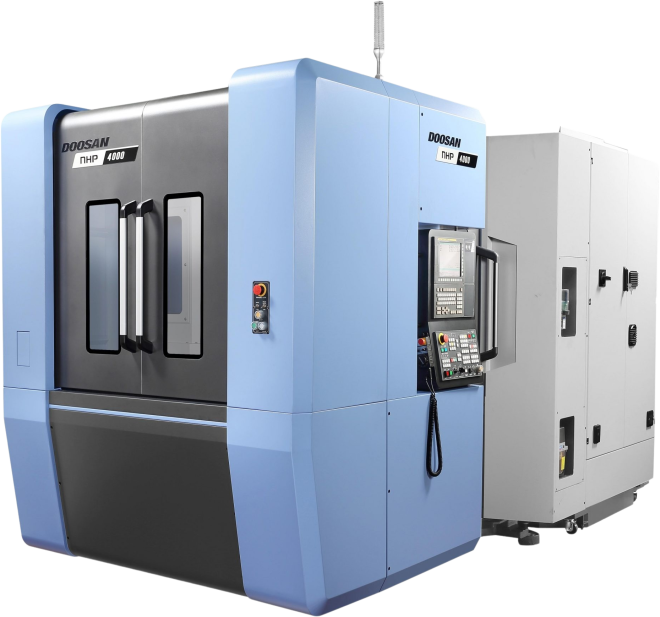

Image representative of Series and may not be the exact model

The Doosan NHP Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
