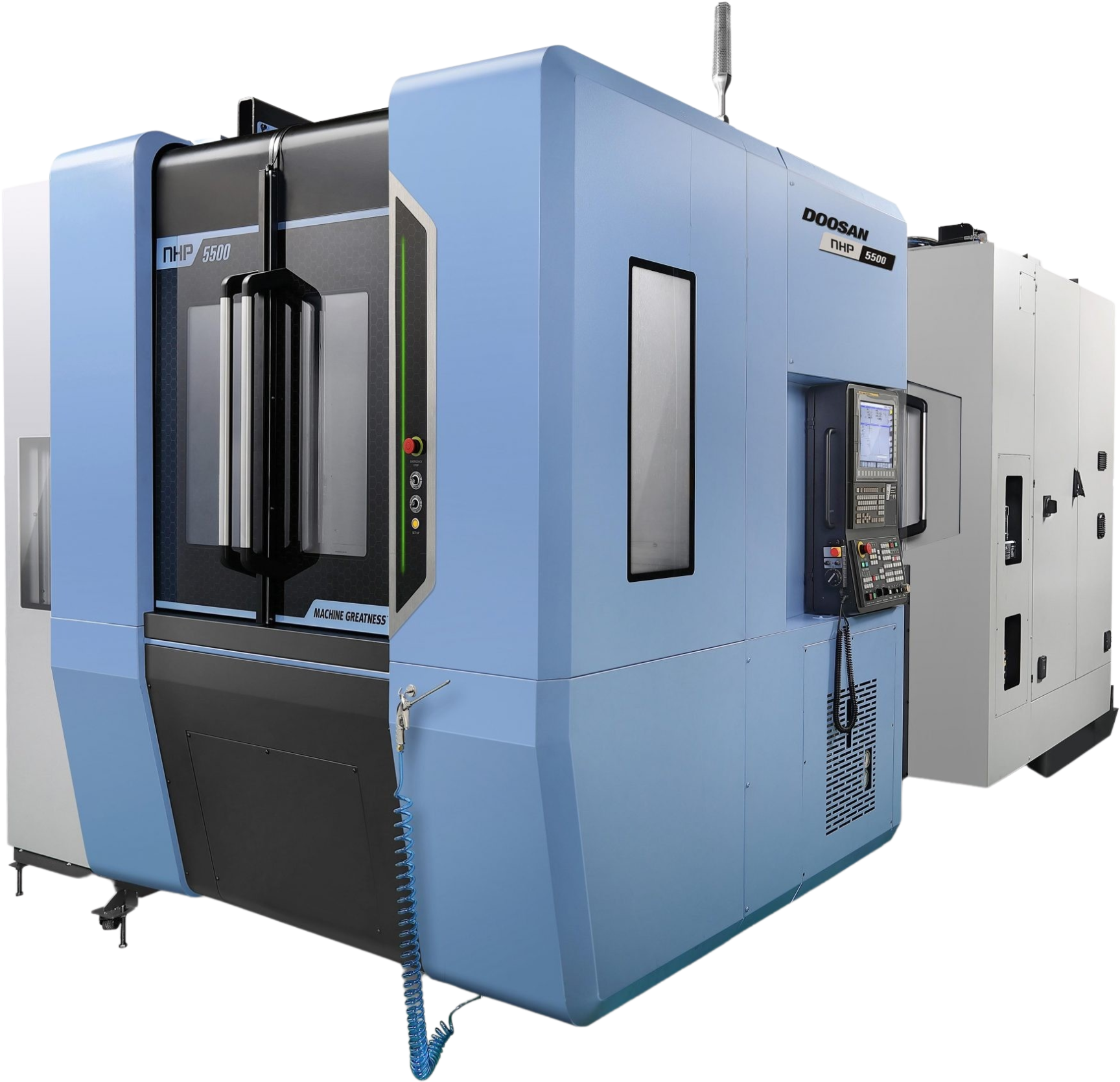

NHP 5500 2nd Generation

NHP 4000 / 5000 I High-speed compact HMC I DN Solutions Machine Tools Watch this Video

Product specifications

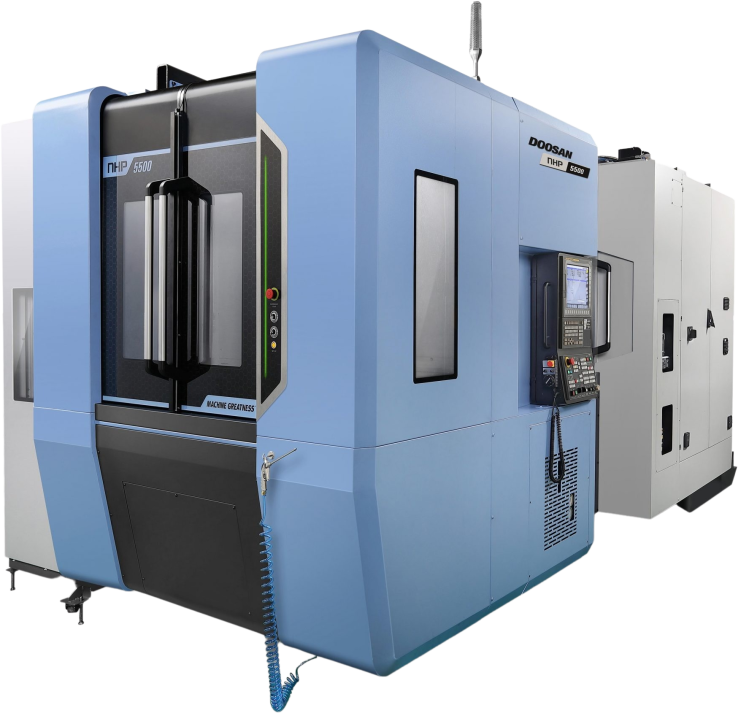

Doosan NHP 5500 2nd Generation Horizontal Machining Centres

NHP 5500 2nd Generation

View
Doosan NHP 8000 Horizontal Machining Centres

NHP 8000

View
Doosan NHP 6300 Horizontal Machining Centres

NHP 6300

View
Doosan NHP 5500 Horizontal Machining Centres

NHP 5500

View
Doosan NHP 5000 Horizontal Machining Centres

NHP 5000

View
Doosan NHP 4000 Horizontal Machining Centres

NHP 4000

View
NHP 5500 2nd Generation
NHP 8000
NHP 6300
NHP 5500
NHP 5000
NHP 4000
Travels
X Axis Travel distance
800 mm
1400 mm
1050 mm
800 mm
730 mm
560 mm
Y Axis Travel distance
750 mm
1200 mm
900 mm
750 mm
730 mm
640 mm
Z Axis Travel distance
900 mm
1370 mm
1000 mm
850 mm
880 mm
660 mm
X Axis Rapid Traverse
60 m/min
50 m/min
60 m/min
60 m/min
60 m/min
60 m/min
Y Axis Rapid Traverse
60 m/min
50 m/min
60 m/min
60 m/min
60 m/min
60 m/min
Z Axis Rapid Traverse
60 m/min
50 m/min
60 m/min
60 m/min
60 m/min
60 m/min
Spindle
Max. Spindle Speed
10000 r/min
10000 r/min
10000 r/min
10000 r/min
15000 r/min
15000 r/min
Max. Spindle Power
37 kW
45 kW
45 kW
45 kW
30 kW
30 kW
Max. Spindle Torque
516 N·m
600 N·m
600 N·m
600 N·m
229.9 N·m
229.9 N·m
Table
Max. Table Weight
800 kg
2000 kg
1500 kg
800 kg
500 kg
400 kg
Tools
No. of tool station
376
376
376
376
275
275
Product Dimensions
Length
6389mm
7878mm
6520mm
5940mm
5450mm
4950mm
Width
3364mm
4375mm
3930mm
3670mm
2680mm
2300mm
Height
3199mm
3803mm
3495mm
3330mm
2880mm
2690mm
Weight
14000kg
27000kg
18000kg
17000kg
11500kg
9700kg
Additional
Max. Workpiece Diameter
900 mm
1450 mm
1050 mm
850 mm
800 mm
630 mm
Max. Workpiece Height
1100 mm
1550 mm
1350 mm
1100 mm
1000 mm
900 mm
Max. Workpiece Weight
800 kg
2000 kg
1500 kg
800 kg
500 kg
400 kg
Pallet Size
500 mm
800 mm
630 mm
500 mm
500 mm
400 mm

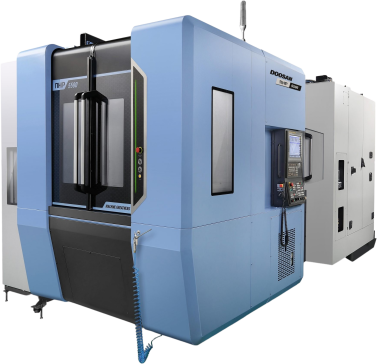

NHP 5500 2nd Generation

Horizontal Machining Centres

Doosan NHP 5500 2nd Generation Horizontal Machining Centres
  • 37kW/10000rpm spindle
  • 376ea tool stations
  • 6389 x 3364 x 3199 mm (LxWxH)
View machine

NHP 8000

Horizontal Machining Centres

Doosan NHP 8000 Horizontal Machining Centres
  • 45kW/10000rpm spindle
  • 376ea tool stations
  • 7878 x 4375 x 3803 mm (LxWxH)
View machine

NHP 6300

Horizontal Machining Centres

Doosan NHP 6300 Horizontal Machining Centres
  • 45kW/10000rpm spindle
  • 376ea tool stations
  • 6520 x 3930 x 3495 mm (LxWxH)
View machine

NHP 5500

Horizontal Machining Centres

Doosan NHP 5500 Horizontal Machining Centres
  • 45kW/10000rpm spindle
  • 376ea tool stations
  • 5940 x 3670 x 3330 mm (LxWxH)
View machine

NHP 5000

Horizontal Machining Centres

Doosan NHP 5000 Horizontal Machining Centres
  • 30kW/15000rpm spindle
  • 275ea tool stations
  • 5450 x 2680 x 2880 mm (LxWxH)
View machine

NHP 4000

Horizontal Machining Centres

Doosan NHP 4000 Horizontal Machining Centres
  • 30kW/15000rpm spindle
  • 275ea tool stations
  • 4950 x 2300 x 2690 mm (LxWxH)
View machine

Compatible Control Systems

The NHP 5500 2nd Generation is compatible with Fanuc and Siemens.
