Doosan BVM Series

Doosan BVM vertical machining centers

Features
  • Rapid rates: 42m/min
  • Spindle: Built-in 37kW/15,000rpm (214N-m)
  • Thermal compensation systems
Share this series

or copy link

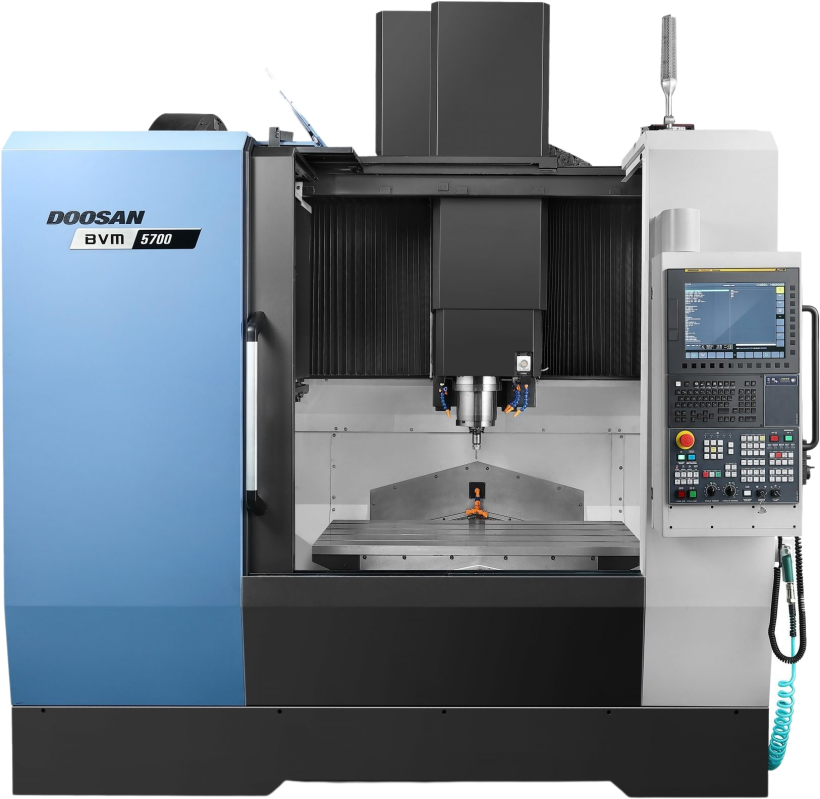

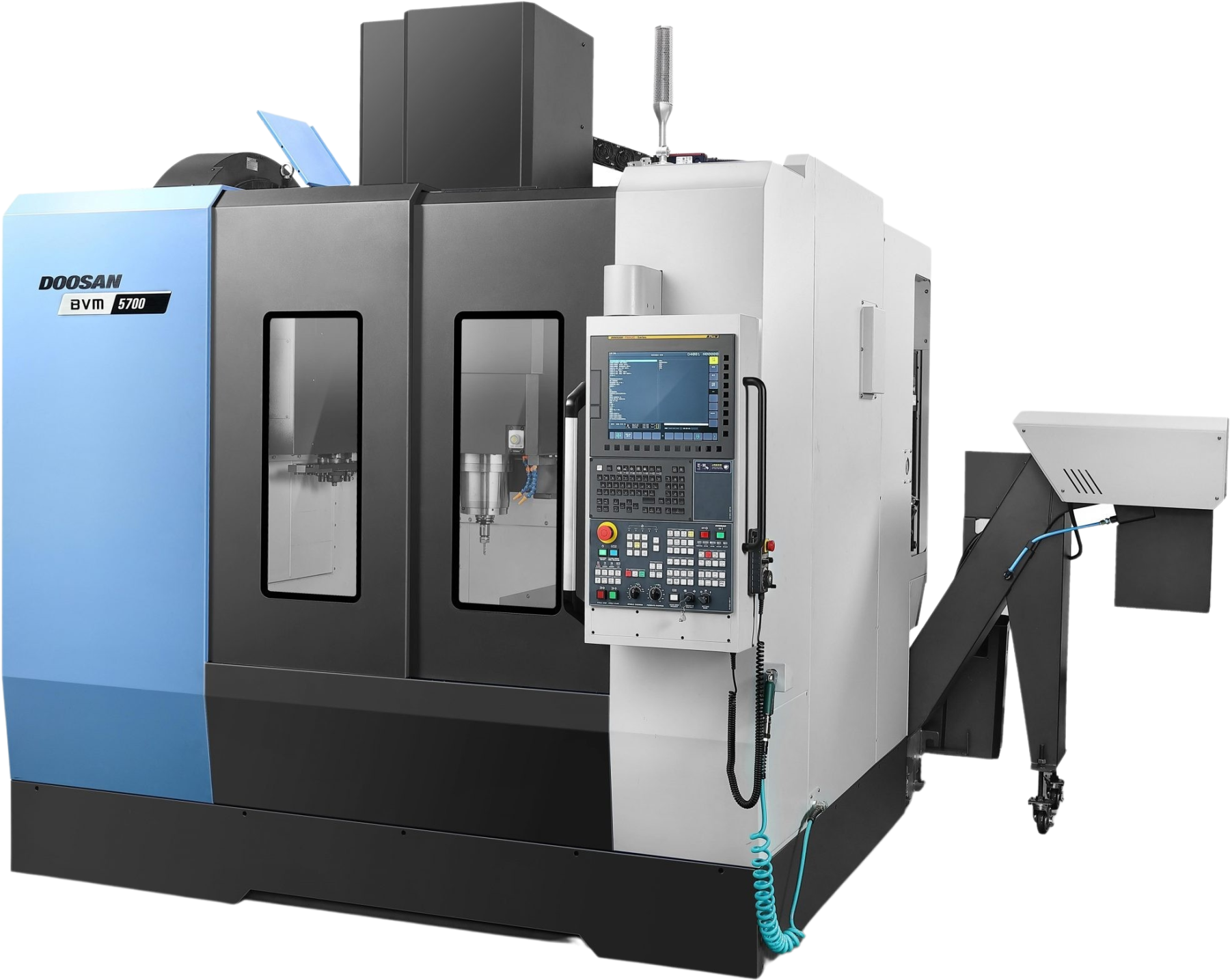

DOOSAN | NEW | BVM 5700 High precision premium vertical machining center
DOOSAN | NEW | BVM 5700 High precision premium vertical machining center

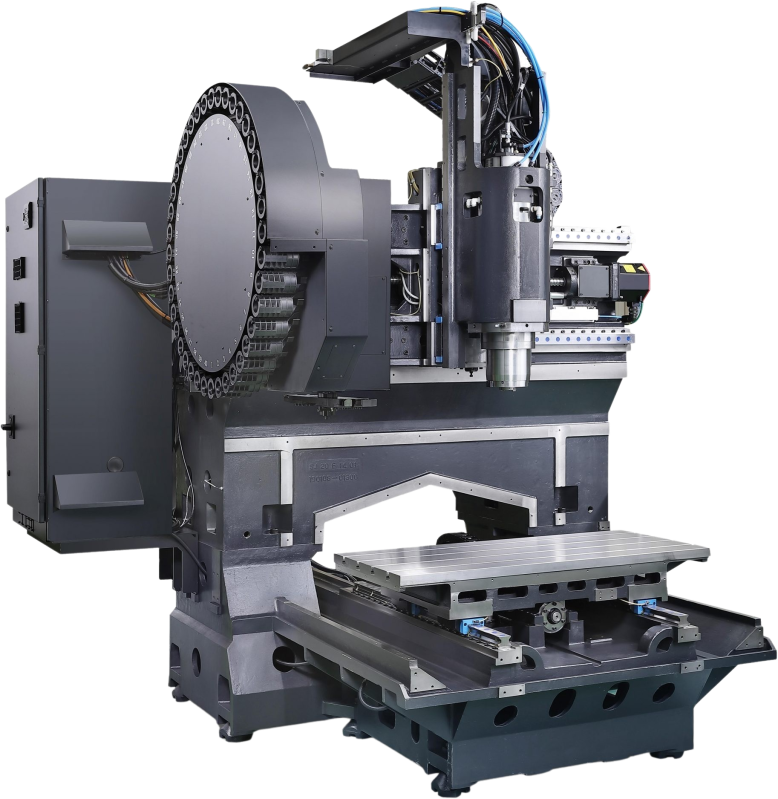

The BVM series includes the Doosan BVM 5700, a rigidly designed and built bridge-style vertical machining center that, with its integrated thermal compensation systems and powerful built-in spindle, delivers high accuracies, superior surface finishes and best-in-class process reliability.

Technical Specification

X Axis Travel distance 1050mm
Y Axis Travel distance 570mm
Z Axis Travel distance 460mm
X Axis Rapid Traverse 42m/min
Y Axis Rapid Traverse 42m/min
Z Axis Rapid Traverse 36m/min
Max. Spindle Speed 15000r/min
Max. Spindle Power 15kW
Max. Spindle Torque 214N·m
Tool Taper
Table Length 1300mm
Table Width 570mm
Max. Table Weight 1000kg
No. of tool station 40

Series Dimensions

Length 3080mm
Width 2560mm
Height 2890mm
Weight 7500kg

Image representative of Series and may not be the exact model

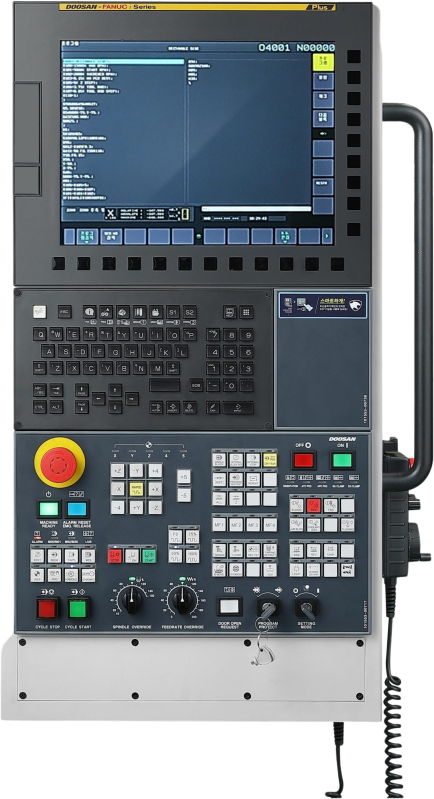

The Doosan BVM Series is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine

Talk to Mills about this series

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
