Doosan Mynx II Series

Doosan’s range of large-capacity Mynx vertical machining centers

Features
  • Box guide-way, heavy-duty design and build
  • BT 40 or BT 50 spindle/tooling configuration
  • Gear-box driven & built-in spindle options
  • Fanuc or Siemens control
Share this series

or copy link

Doosan’s Mynx-series of vertical machining centers is designed for heavy duty machining applications, and for machining tough and hard-to-machine materials.

The machines have a box-guide-way design, and feature powerful spindles, large working envelopes and generous-size tool changers.

There are four different sized models in the range – Mynx 5400, Mynx 6500, Mynx 7500 and the new Mynx 9500.

The machines are available with either a BT 40 or BT 50 spindle/tooling configuration.

Technical Specification

X Axis Travel distance 1020 - 2500mm
Y Axis Travel distance 550 - 950mm
Z Axis Travel distance 530 - 850mm
X Axis Rapid Traverse 16 - 30m/min
Y Axis Rapid Traverse 16 - 30m/min
Z Axis Rapid Traverse 16 - 24m/min
Max. Spindle Speed 8000 - 12000r/min
Max. Spindle Power 15 - 30kW
Max. Spindle Torque 286 - 617N·m
Table Length 1200 - 2500mm
Table Width 540 - 950mm
Max. Table Weight 1000 - 9000kg
No. of tool station 24 - 40
Tool Taper

Series Dimensions

Length 2467 - 4315mm
Width 3350 - 6480mm
Height 2800 - 3595mm
Weight 7000 - 23000kg

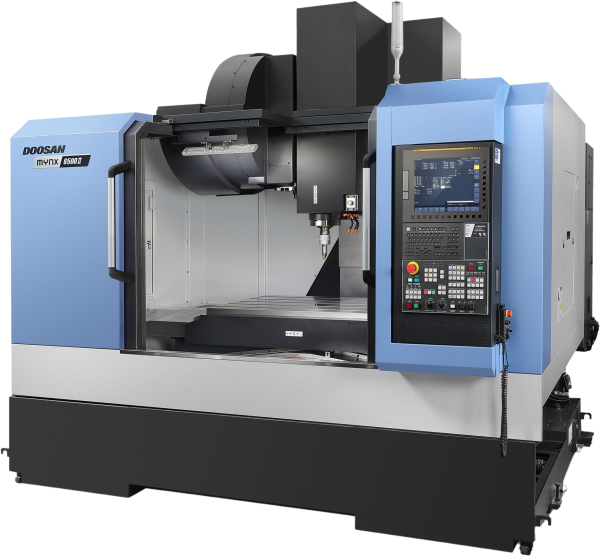

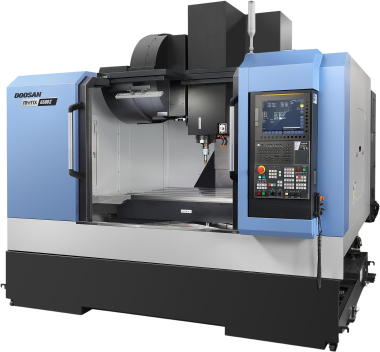

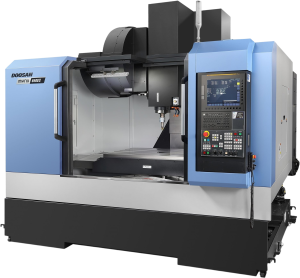

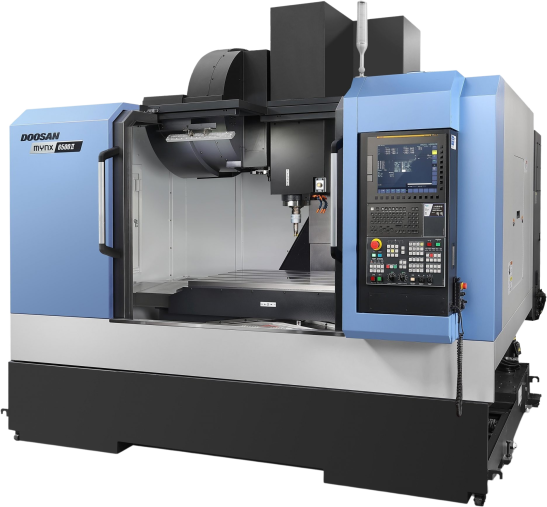

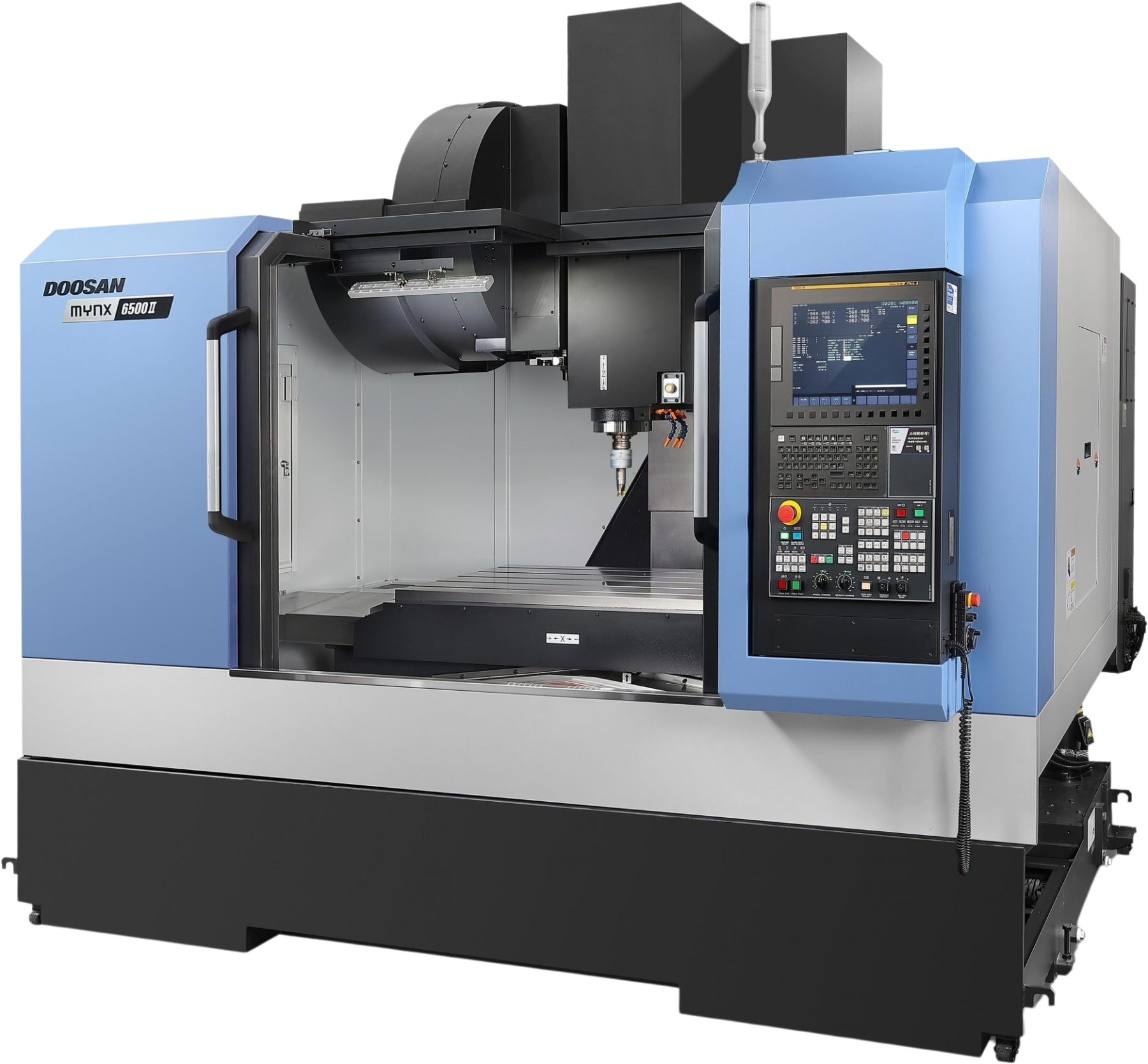

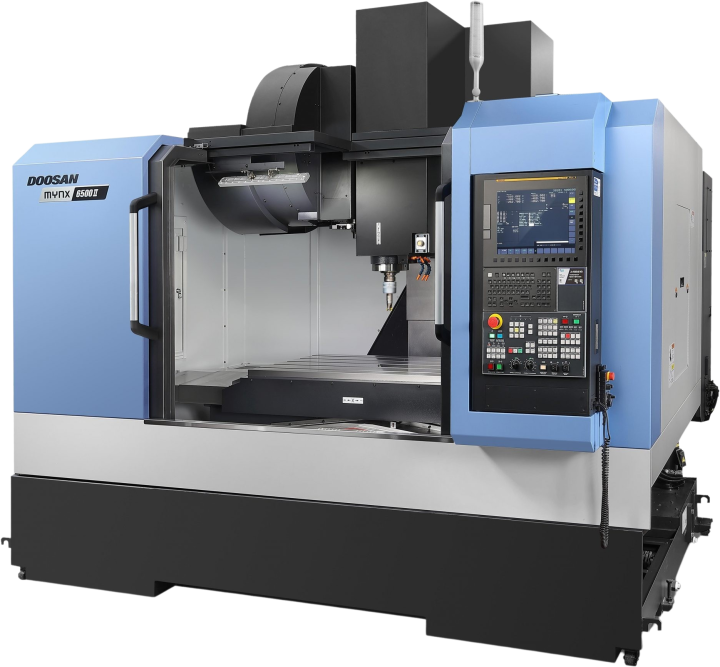

Image representative of Series and may not be the exact model

The Doosan Mynx II Series is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine

Talk to Mills about this series

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.

"*" indicates required fields

Related Case Studies

Large machine. Big investment. Huge impact.

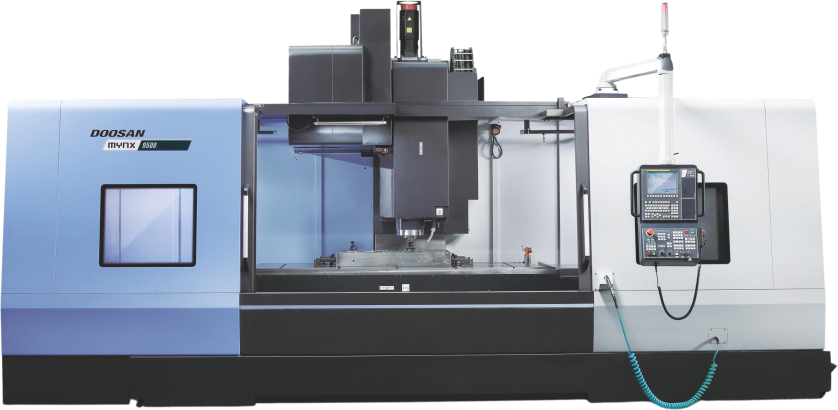

Doosan Mynx 9500/50 3-axis Vertical Machining Centre

Mills CNC supplied Stourbridge based HCM Engineering, a precision toolmaker & die-casting specialist with a new Doosan Mynx 9500/50 large-capacity 3-axis vertical machining centre. The Mynx is ideal for heavy-duty machining operations and has increased capacity and productivity by running unattended operations predominantly, but not exclusively for automotive sector clients.

Well prepared – for all eventualities.

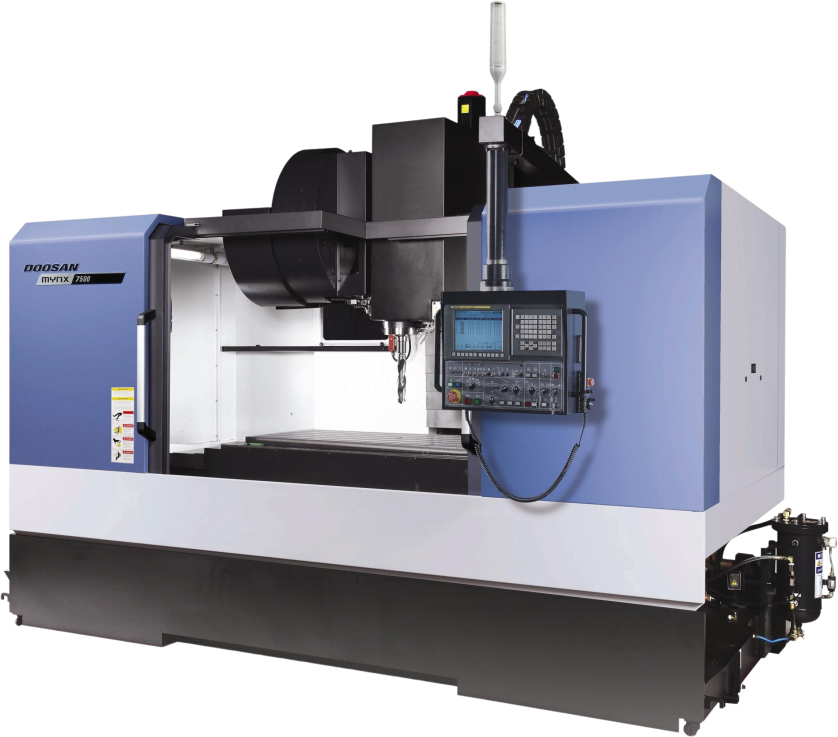

Doosan Mynx 7500/50 II Vertical Machining Centre
