Vertical Machining Centres
Doosan 3-axis CNC machines are tried, tested and trusted.
Find Your Perfect Product
Vertical Machining Centres
Wide Range of Vertical CNC Machining Centres
CNC machining centres are available in a range of different sizes and comprise the DNM series (linear guide-way) which is available with Fanuc, Heidenhain and Siemens control machines, as well as the heavy-duty BT 50 Mynx series (box guide-way).
All machines’ productivity can be enhanced by the integration of 4th/5th axis units which can be managed by Mills at the time of purchase, or can be retro-fitted.
Linear guide-way machines: DNM 400; DNM 500; DNM 650: DNM 750; DNM 750L

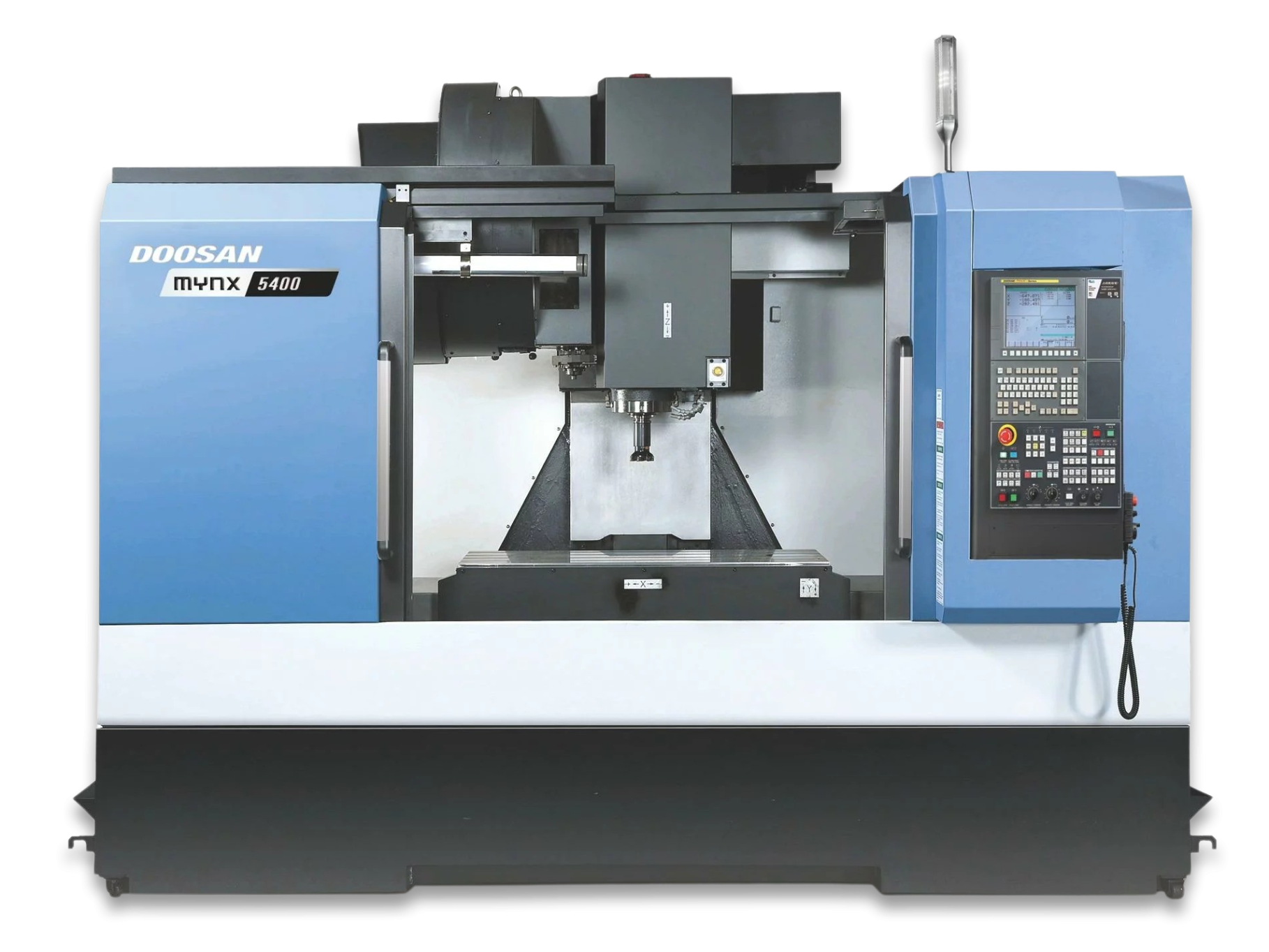

Box guide-way machines: Mynx 5400; Mynx 6500; Mynx 7500; VM 960: VM1260
Our Products
Select the machine type or series you’d like to explore, or scroll down for a full list of products in this category, and filter by the factors that matter to you.
- X-Axis Travel - 520 - 2,160mm
- Spindle taper - 40, 50
- Spindle RPM - 8,000 - 15,000
- Rapid rates: 42m/min
- Spindle: Built-in 37kW/15,000rpm (214N-m)
- Thermal compensation systems
- Box guide-way, heavy-duty design and build
- BT 40 or BT 50 spindle/tooling configuration
- Gear-box driven & built-in spindle options
- Fanuc or Siemens control
- X-Axis Travel - 770mm
- Spindle Taper - 40
- Spindle RPM - 12,000
- X-Axis Travel - 520 - 762mm
- Spindle taper - 40
- Spindle RPM - 10,000 - 12,000
- X-Axis Travel - 3,000mm
- Spindle taper - 40
- Spindle RPM - 12,000 - 18,000
- Compact 3-axis vertical machining center
- 7.5kW/8,000rpm spindle
- 24m/min rapid rates
- Doosan Fanuc i control
All Vertical Machining Centres
Showing 1-20 of 35 products
DNM 6700
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 40ea tool stations
- 2597 x 3350 x 3120 mm (LxWxH)
VCF 5500L
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 4590 x 2950 x 3030 mm (LxWxH)
VCF 5500UL
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 35ea tool stations
- 8410 x 3571 x 3420 mm (LxWxH)
VCF 850L II
Vertical Machining Centres
- 22kW/12000rpm spindle
- 60ea tool stations
- 3795 x 5440 x 3205 mm (LxWxH)
VCF 850 II
Vertical Machining Centres
- 22kW/12000rpm spindle
- 60ea tool stations
- 3795 x 4440 x 3205 mm (LxWxH)
VC 510
Vertical Machining Centres
- 18.5kW/10000rpm spindle
- 40ea tool stations
- 3260 x 2580 x 3130 mm (LxWxH)
VC 430
Vertical Machining Centres
- 18.5kW/10000rpm spindle
- 40ea tool stations
- 2860 x 2200 x 3030 mm (LxWxH)
VC 3600
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 20ea tool stations
- 3330 x 1900 x 2657 mm (LxWxH)
SVM 4100
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 30ea tool stations
- 2171 x 2250 x 2661 mm (LxWxH)
Mynx 9500
Vertical Machining Centres
- 30kW/10000rpm spindle
- 40ea tool stations
- 4315 x 6480 x 3595 mm (LxWxH)
Mynx 7500/50 II
Vertical Machining Centres
- 30kW/8000rpm spindle
- 30ea tool stations
- 3900 x 4050 x 3235 mm (LxWxH)
Mynx 7500 II
Vertical Machining Centres
- 15.6kW/12000rpm spindle
- 40ea tool stations
- 3900 x 4050 x 3185 mm (LxWxH)
Mynx 6500/50 II
Vertical Machining Centres
- 30kW/8000rpm spindle
- 30ea tool stations
- 2629 x 3350 x 2825 mm (LxWxH)
Mynx 6500 II
Vertical Machining Centres
- 15.6kW/12000rpm spindle
- 40ea tool stations
- 2692 x 3350 x 2825 mm (LxWxH)
Mynx 5400/50 II
Vertical Machining Centres
- 30kW/8000rpm spindle
- 24ea tool stations
- 2467 x 3350 x 3015 mm (LxWxH)
Mynx 5400 II
Vertical Machining Centres
- 15.6kW/12000rpm spindle
- 40ea tool stations
- 2467 x 3350 x 2800 mm (LxWxH)
BVM 5700
Vertical Machining Centres
- 15kW/15000rpm spindle
- 40ea tool stations
- 3080 x 2560 x 2890 mm (LxWxH)
DNM 750L/50 II
Vertical Machining Centres
- 22kW/12000rpm spindle
- 60ea tool stations
- 3435 x 4900 x 3385 mm (LxWxH)
DNM 750/50 II
Vertical Machining Centres
- 22kW/12000rpm spindle
- 60ea tool stations
- 3480 x 3850 x 3370 mm (LxWxH)
DNM 750 L II
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 3480 x 4900 x 3170 mm (LxWxH)
- 1
- 2
Showing 1-20 of 36 products
Filter
Related Case Studies
Going for sustainable growth!

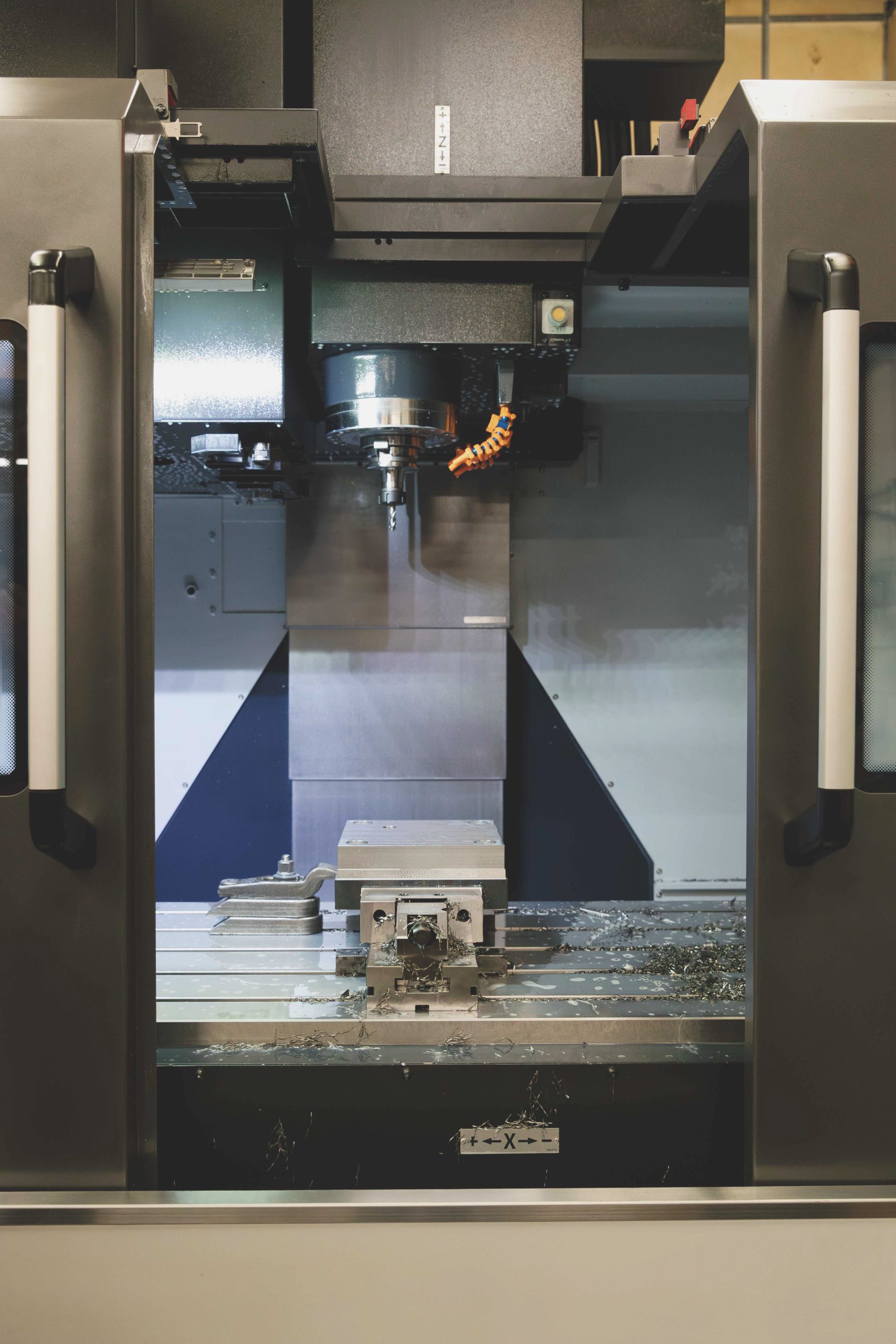

DNM 6700 Vertical Machining Centre
Barrs Court Engineering invests in a new DN Solutions’ DNM 6700 vertical machining centre to increase its in-house milling capacity and capabilities, and strengthen its High-Mix, Low-Volume (HMLV) parts processing operation.
Great machines. Great service. Great decision.
DNM 750 II Vertical Machining Centre
Wordsley General Engineering’s decision to invest in a DNM 750 II vertical machining centre and Puma 4100LB horizontal lathe from Mills CNC is paying dividends resulting in the company having a full order book.
A choice made pure and simple
Doosan DNM 5700 Vertical Machining Centre
Mills CNC supplied Pure Innovate Manufacturing, a leading project management and engineering solutions provider, with a new, high-performance DN Solutions’ DNM 5700 machining centre at the company’s brand new, modern and spacious Innovation facility in Wallingford, Oxfordshire.
