Puma 800 II Series

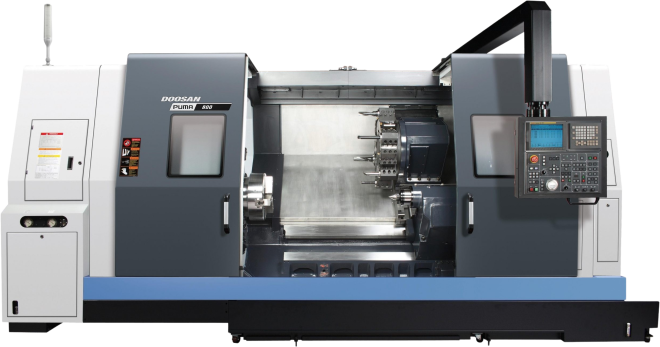

DN Solutions (formerly Doosan) Puma 800 lathe series

Puma 800 II Series Description

Puma 800 lathes are the largest in the DN Solutions range and provide a powerful and reliable turning solution for large component manufacturers.

These lathes have a large chucking capability (32” chuck) and a large through spindle bore capacity (320mm), and have been designed to machine large and heavy work-pieces.

Puma 800 machines are used extensively in the power generation, oil and gas and large automotive sectors, and deliver outstanding part accuracies, surface finishes and process reliability.

Puma 800 lathes with long beds (up to 5 metres), driven tools (11kW/3000rpm) and Y-axes (+/-100mm) are all available.

Product specifications

Doosan Puma 800L II CNC Horizontal Single Turret Lathes

Puma 800XLY II

View
Doosan Puma 800L II CNC Horizontal Single Turret Lathes

Puma 800XLM II

View
Doosan Puma 800L II CNC Horizontal Single Turret Lathes

Puma 800XL II

View
Doosan Puma 800L II CNC Horizontal Single Turret Lathes

Puma 800M II

View
Doosan Puma 800L II CNC Horizontal Single Turret Lathes

Puma 800LY II

View
Doosan Puma 800LM II CNC Horizontal Single Turret Lathes

Puma 800LM II

View
Doosan Puma 800LB II CNC Horizontal Single Turret Lathes

Puma 800LB II

View
Doosan Puma 800L II CNC Horizontal Single Turret Lathes

Puma 800L II

View
Doosan Puma 800B II CNC Horizontal Single Turret Lathes

Puma 800B II

View
Doosan Puma 800 II CNC Horizontal Single Turret Lathes

Puma 800 II

View
Puma 800XLY II
Puma 800XLM II
Puma 800XL II
Puma 800M II
Puma 800LY II
Puma 800LM II
Puma 800LB II
Puma 800L II
Puma 800B II
Puma 800 II
Travels
X Axis Rapid Traverse
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
12 m/min
Z Axis Rapid Traverse
10 m/min
10 m/min
10 m/min
16 m/min
10 m/min
10 m/min
10 m/min
10 m/min
16 m/min
16 m/min
X Axis Travel distance
400 mm
470 mm
470 mm
470 mm
400 mm
470 mm
470 mm
470 mm
470 mm
470 mm
Y Axis Travel distance
200 mm
N/A
N/A
N/A
200 mm
N/A
N/A
N/A
N/A
N/A
Z Axis Travel distance
5100 mm
5100 mm
5100 mm
1650 mm
3300 mm
3235 mm
3235 mm
3235 mm
1650 mm
1650 mm
Spindle
Max. Spindle Speed
750 r/min
750 r/min
750 r/min
750 r/min
750 r/min
750 r/min
500 r/min
750 r/min
500 r/min
750 r/min
Max. Spindle Power
55 kW
55 kW
55 kW
55 kW
55 kW
55 kW
55 kW
55 kW
55 kW
55 kW
Max. Spindle Torque
8076 N·m
8076 N·m
8076 N·m
8076 N·m
8076 N·m
8076 N·m
8076 N·m
8076 N·m
8076 N·m
8076 N·m
Tools
No. of tool station
12
12
12
12
12
12
12
12
12
12
Product Dimensions
Length
9898mm
9860mm
9860mm
5760mm
7430mm
7360mm
7360mm
7360mm
5760mm
5760mm
Width
3090mm
3090mm
3090mm
3145mm
3090mm
2770mm
2770mm
2770mm
3145mm
3145mm
Height
2770mm
2770mm
2770mm
2780mm
2770mm
2590mm
2590mm
2590mm
2780mm
2780mm
Weight
26000kg
26000kg
25800kg
16500kg
23000kg
22000kg
21800kg
21800kg
16300kg
16300kg
Additional
Chuck size
32 inch
32 inch
32 inch
32 inch
32 inch
32 inch
32 inch
32 inch
32 inch
32 inch
Max. Turning Diameter
750 mm
900 mm
900 mm
900 mm
750 mm
900 mm
900 mm
900 mm
900 mm
900 mm
Max. Turning Length
5050 mm
5050 mm
5050 mm
1600 mm
3250 mm
3200 mm
3200 mm
3200 mm
1600 mm
1600 mm
Rotary Tool r/min
3000 r/min
3000 r/min
N/A
3000 r/min
3000 r/min
3000 r/min
N/A
N/A
N/A
N/A

Puma 800XLY II

CNC Horizontal Single Turret Lathes

Doosan Puma 800L II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 750 mm max turning diameter
View machine

Puma 800XLM II

CNC Horizontal Single Turret Lathes

Doosan Puma 800L II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 900 mm max turning diameter
View machine

Puma 800XL II

CNC Horizontal Single Turret Lathes

Doosan Puma 800L II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 900 mm max turning diameter
View machine

Puma 800M II

CNC Horizontal Single Turret Lathes

Doosan Puma 800L II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 900 mm max turning diameter
View machine

Puma 800LY II

CNC Horizontal Single Turret Lathes

Doosan Puma 800L II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 750 mm max turning diameter
View machine

Puma 800LM II

CNC Horizontal Single Turret Lathes

Doosan Puma 800LM II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 900 mm max turning diameter
View machine

Puma 800LB II

CNC Horizontal Single Turret Lathes

Doosan Puma 800LB II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/500rpm spindle
  • 900 mm max turning diameter
View machine

Puma 800L II

CNC Horizontal Single Turret Lathes

Doosan Puma 800L II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 900 mm max turning diameter
View machine

Puma 800B II

CNC Horizontal Single Turret Lathes

Doosan Puma 800B II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/500rpm spindle
  • 900 mm max turning diameter
View machine

Puma 800 II

CNC Horizontal Single Turret Lathes

Doosan Puma 800 II CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 55kW/750rpm spindle
  • 900 mm max turning diameter
View machine

Compatible Control Systems

The Puma 800 II Series is compatible with Fanuc and Siemens.
