Product specifications

Doosan HM 1000 Horizontal Machining Centres

HM 1250

View
Doosan HM 1250W Horizontal Machining Centres

HM 1250W

View
Doosan HM 1000 Horizontal Machining Centres

HM 1000

View
HM 1250
HM 1250W
HM 1000
Travels
X Axis Travel distance
2100 mm
2100 mm
2100 mm
Y Axis Travel distance
1500 mm
1400 mm
1250 mm
Z Axis Travel distance
1500 mm
1400 mm
1250 mm
X Axis Rapid Traverse
24 m/min
24 m/min
24 m/min
Y Axis Rapid Traverse
24 m/min
24 m/min
24 m/min
Z Axis Rapid Traverse
24 m/min
24 m/min
24 m/min
Spindle
Max. Spindle Speed
6000 r/min
3000 r/min
6000 r/min
Max. Spindle Power
26 kW
45 kW
26 kW
Max. Spindle Torque
1989.4 N·m
1910 N·m
1989.4 N·m
Table
Max. Table Weight
3000 kg
5000 kg
3000 kg
Tools
No. of tool station
316
316
316
Product Dimensions
Length
10530mm
11526mm
9657mm
Width
5822mm
5822mm
5822mm
Height
4130mm
4581mm
3885mm
Weight
31000kg
33000kg
29000kg
Additional
Max. Workpiece Diameter
2000 mm
2000 mm
2000 mm
Max. Workpiece Height
1725 mm
1725 mm
1475 mm
Max. Workpiece Weight
3000 kg
5000 kg
3000 kg
Pallet Size
1250 mm
1250 mm
1000 mm

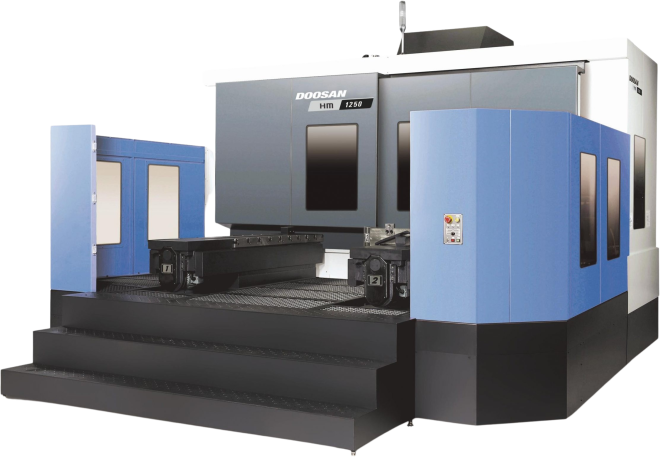

HM 1250

Horizontal Machining Centres

Doosan HM 1000 Horizontal Machining Centres
  • 26kW/6000rpm spindle
  • 316ea tool stations
  • 10530 x 5822 x 4130 mm (LxWxH)
View machine

HM 1250W

Horizontal Machining Centres

Doosan HM 1250W Horizontal Machining Centres
  • 45kW/3000rpm spindle
  • 316ea tool stations
  • 11526 x 5822 x 4581 mm (LxWxH)
View machine

HM 1000

Horizontal Machining Centres

Doosan HM 1000 Horizontal Machining Centres
  • 26kW/6000rpm spindle
  • 316ea tool stations
  • 9657 x 5822 x 3885 mm (LxWxH)
View machine

Compatible Control Systems

The HM 1250 is compatible with fanuc.
