Puma 1000MA

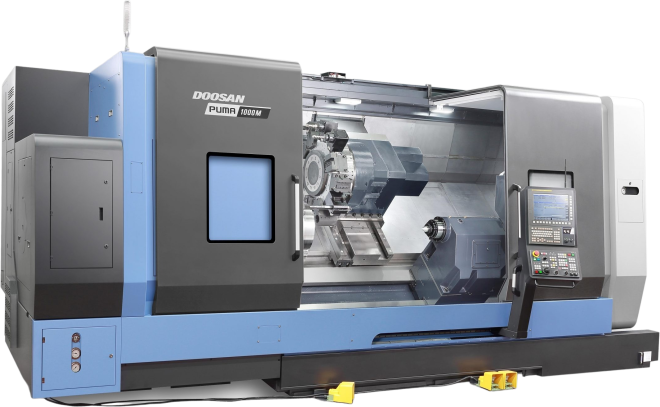

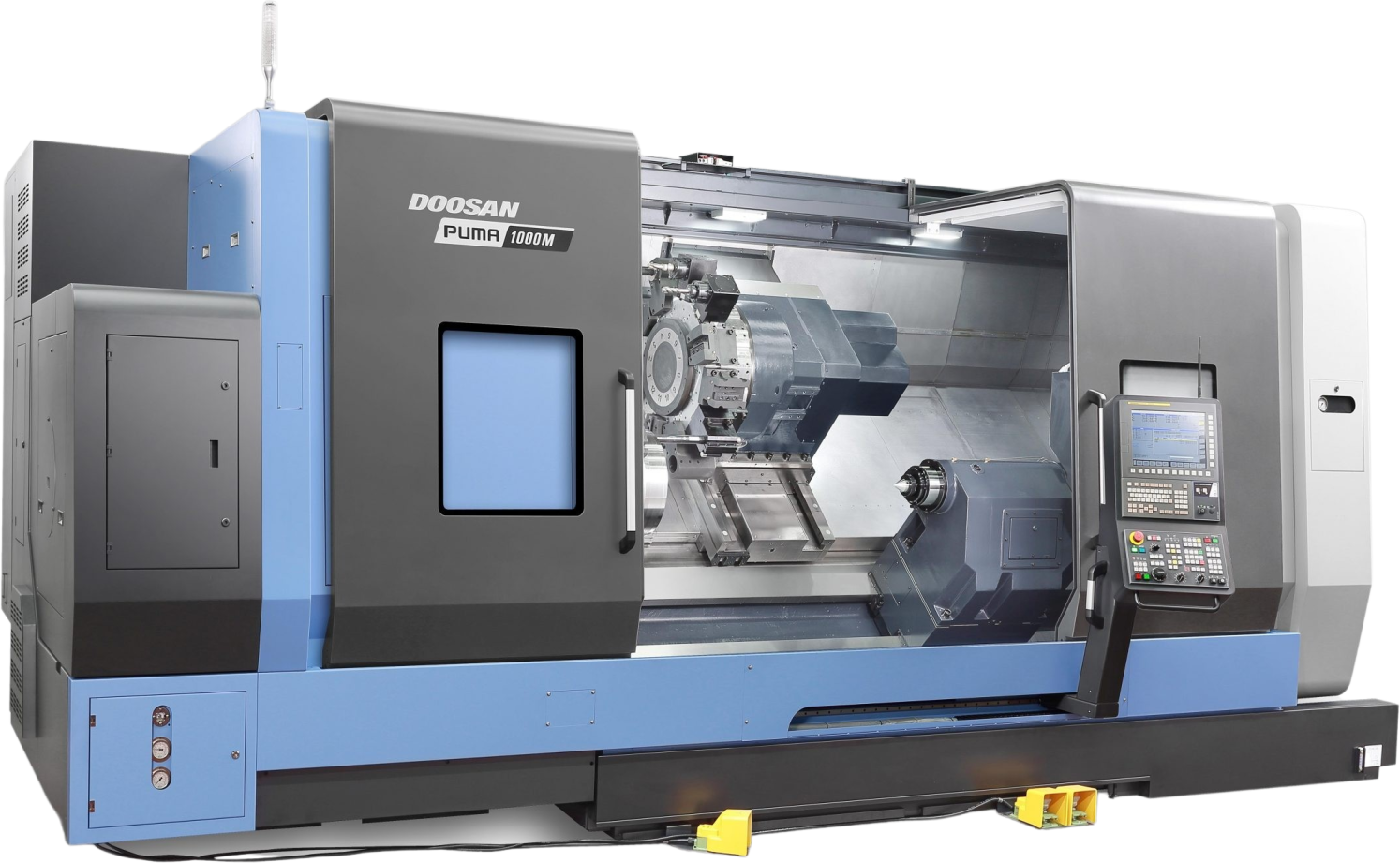

DN Solutions (formerly Doosan) Puma 1000MA Horizontal Single Turret Lathe

Puma 1000MA Description

DN Solutions (formerly Doosan) Puma 1000MA Horizontal Single Turret Lathe

Product specifications

Doosan Puma 1000MA CNC Horizontal Single Turret Lathes

Puma 1000MA

View
Doosan Puma 1000MA CNC Horizontal Single Turret Lathes

Puma 1000MB

View
Doosan Puma 1000A CNC Horizontal Single Turret Lathes

Puma 1000B

View
Doosan Puma 1000A CNC Horizontal Single Turret Lathes

Puma 1000A

View
Puma 1000MA
Puma 1000MB
Puma 1000B
Puma 1000A
Travels
X Axis Rapid Traverse
12 m/min
12 m/min
12 m/min
12 m/min
Z Axis Rapid Traverse
16 m/min
16 m/min
16 m/min
16 m/min
X Axis Travel distance
540 mm
540 mm
540 mm
540 mm
Z Axis Travel distance
2130 mm
2130 mm
2130 mm
2130 mm
Spindle
Max. Spindle Speed
500 r/min
300 r/min
300 r/min
500 r/min
Max. Spindle Power
75 kW
75 kW
75 kW
75 kW
Max. Spindle Torque
11011 N·m
12040 N·m
12040 N·m
11011 N·m
Tools
No. of tool station
12
12
10
10
Product Dimensions
Length
6595mm
6595mm
6595mm
6595mm
Width
3210mm
3210mm
3210mm
3210mm
Height
2835mm
2835mm
2835mm
2835mm
Weight
21000kg
23000kg
23000kg
21000kg
Additional
Max. Turning Diameter
1000 mm
1000 mm
1000 mm
1000 mm
Max. Turning Length
2040 mm
2000 mm
2000 mm
2040 mm
Rotary Tool r/min
3000 r/min
3000 r/min
N/A
N/A
Chuck size
32 inch
32 inch
32 inch
32 inch

Puma 1000MA

CNC Horizontal Single Turret Lathes

Doosan Puma 1000MA CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 75kW/500rpm spindle
  • 1000 mm max turning diameter
View machine

Puma 1000MB

CNC Horizontal Single Turret Lathes

Doosan Puma 1000MA CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 75kW/300rpm spindle
  • 1000 mm max turning diameter
View machine

Puma 1000B

CNC Horizontal Single Turret Lathes

Doosan Puma 1000A CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 75kW/300rpm spindle
  • 1000 mm max turning diameter
View machine

Puma 1000A

CNC Horizontal Single Turret Lathes

Doosan Puma 1000A CNC Horizontal Single Turret Lathes
  • 32” chuck
  • 75kW/500rpm spindle
  • 1000 mm max turning diameter
View machine

Compatible Control Systems

The Puma 1000MA is compatible with Fanuc and Siemens.
