Doosan Puma 1000 Series

Features
  • Max turning diameter: 1000mm
  • Max turning length: 2040mm
  • Spindle: 75kW/up to 500rpm (two-step gearbox)
  • Spindle bore: up to 560mm
  • Arbitrary speed threading capability
Share this series

or copy link

The Puma 1000 is a big bore heavy duty lathe specifically designed for machining large and heavy components, and is the largest fixed head horizontal lathe in the Doosan range.

The machine, with its powerful high-torque spindle and robust servo-driven turret ensure heavy-duty cutting performance for machining long shafts, large diameter flanges etc.

Technical Specification

Max. Turning Diameter 1000mm
Max. Turning Length 2000 - 2040mm
X Axis Rapid Traverse 12m/min
Z Axis Rapid Traverse 16m/min
Max. Spindle Speed 300 - 500r/min
Max. Spindle Power 75kW
Max. Spindle Torque 11011 - 12040N·m
No. of tool station 10 - 12
Rotary Tool r/min 3000r/min
Chuck size 32inch
X Axis Travel distance 540mm
Z Axis Travel distance 2130mm

Series Dimensions

Length 6595mm
Width 3210mm
Height 2835mm
Weight 21000 - 23000kg

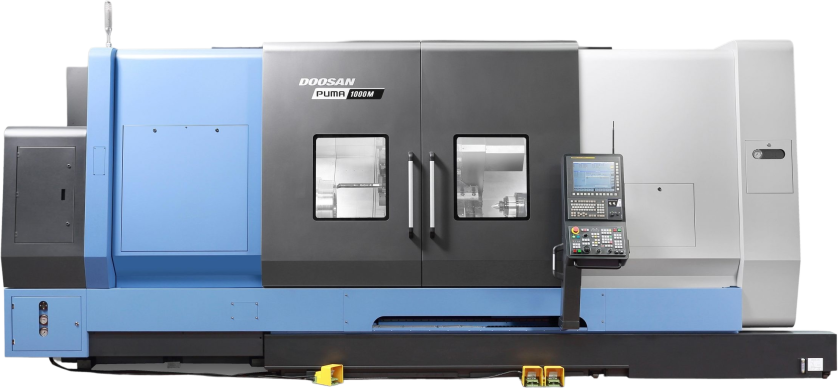

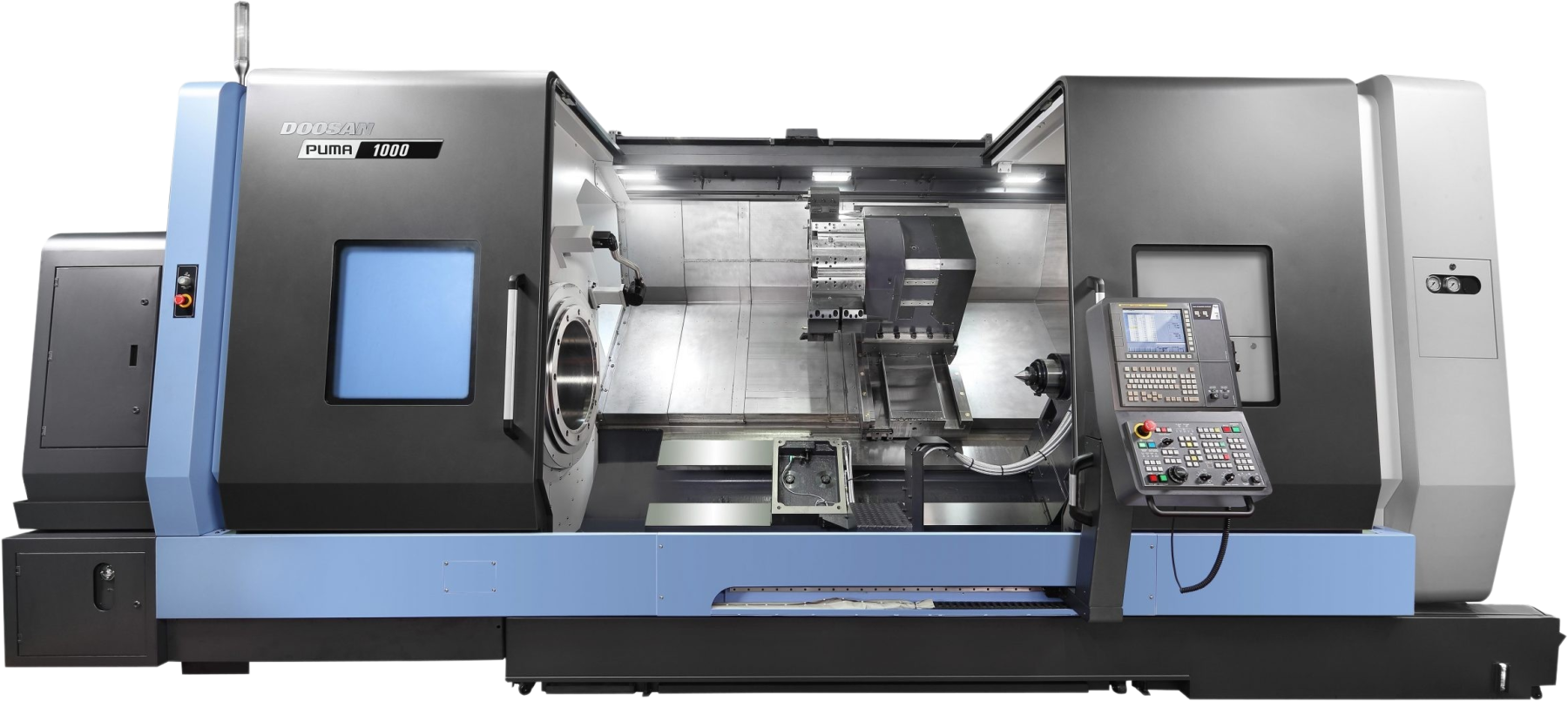

Image representative of Series and may not be the exact model

The Doosan Puma 1000 Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
