Puma V400M

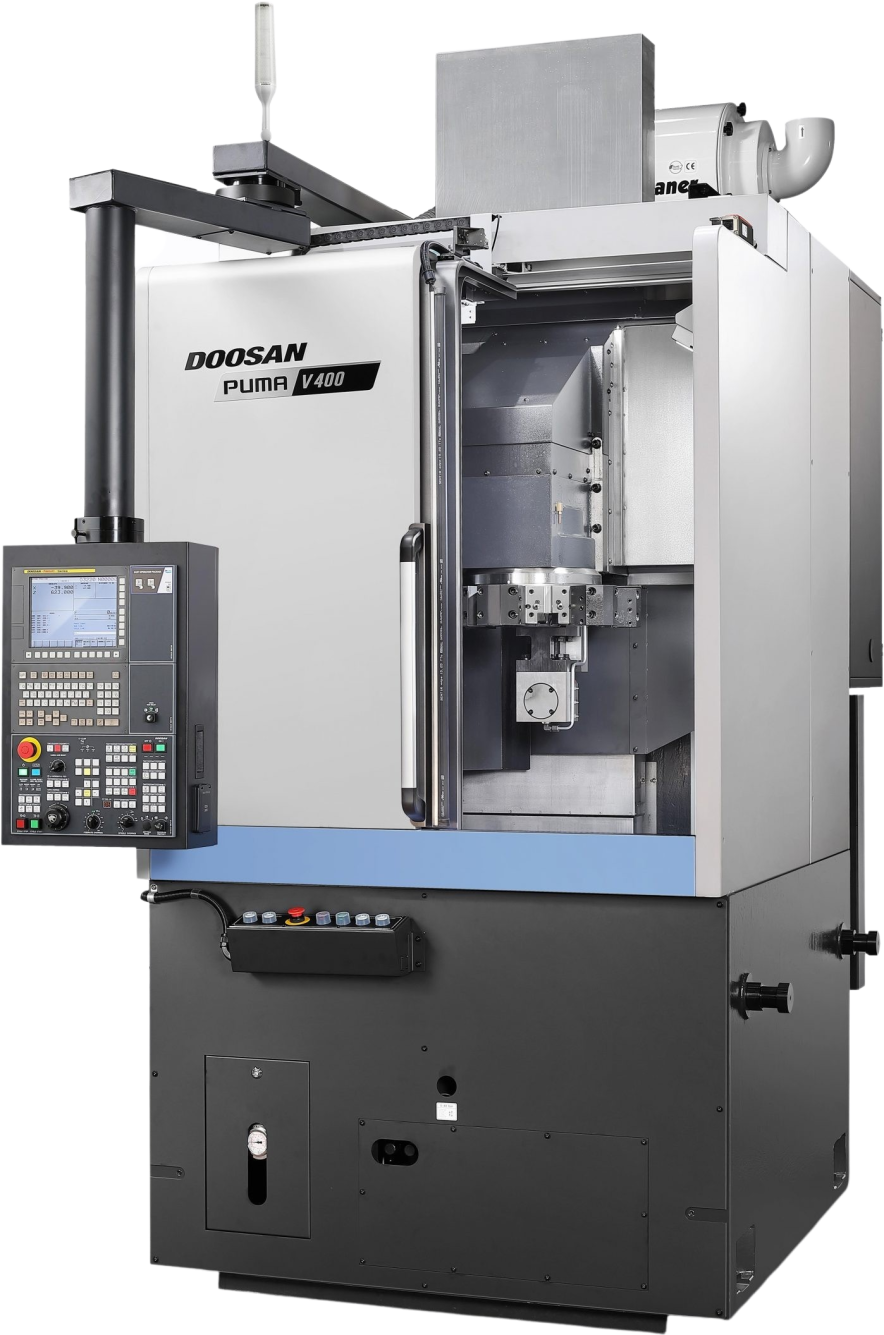

DN Solutions (formerly Doosan) Puma V400M Single Turret Vertical Lathe

Puma V400M Description

DN Solutions (formerly Doosan) Puma V400M Single Turret Vertical Lathe

Product specifications

Doosan Puma V400 Single Turret Vertical Turret Lathe

Puma V400M

View
Doosan Puma V400 Single Turret Vertical Turret Lathe

Puma V400P

View
Doosan Puma V400 Single Turret Vertical Turret Lathe

Puma V400

View
Puma V400M
Puma V400P
Puma V400
Travels
X Axis Rapid Traverse
20 m/min
20 m/min
20 m/min
Z Axis Rapid Traverse
20 m/min
20 m/min
20 m/min
X Axis Travel distance
268 mm
N/A
268 mm
Z Axis Travel distance
488 mm
N/A
488 mm
Spindle
Max. Spindle Speed
3000 r/min
3000 r/min
3000 r/min
Max. Spindle Power
22 kW
22 kW
22 kW
Max. Spindle Torque
731 N·m
731 N·m
731 N·m
Tools
No. of tool station
12
12
12
Product Dimensions
Length
1475mm
1475mm
1475mm
Width
2075mm
2075mm
2075mm
Height
3210mm
3210mm
3210mm
Weight
6000kg
6000kg
6000kg
Additional
Chuck size
12 inch
12 inch
12 inch
Max. Turning Diameter
496 mm
496 mm
496 mm
Max. Turning Length
461 mm
461 mm
461 mm
Rotary Tool r/min
4000 r/min
N/A
N/A

Puma V400M

Single Turret Vertical Turret Lathe

Doosan Puma V400 Single Turret Vertical Turret Lathe
  • 12” chuck
  • 22kW/3000rpm spindle
  • 496 mm max turning diameter
View machine

Puma V400P

Single Turret Vertical Turret Lathe

Doosan Puma V400 Single Turret Vertical Turret Lathe
  • 12” chuck
  • 22kW/3000rpm spindle
  • 496 mm max turning diameter
View machine

Puma V400

Single Turret Vertical Turret Lathe

Doosan Puma V400 Single Turret Vertical Turret Lathe
  • 12” chuck
  • 22kW/3000rpm spindle
  • 496 mm max turning diameter
View machine

Compatible Control Systems

The Puma V400M is compatible with Fanuc and Siemens.
