VCF 850 II

DN Solutions (formerly Doosan) VCF 850 II Vertical Machining Centre

DOOSAN | VCF 5500 series | Multi-purpose Watch this Video

VCF 850 II Description

DN Solutions (formerly Doosan) VCF 850 II Vertical Machining Centre

Product specifications

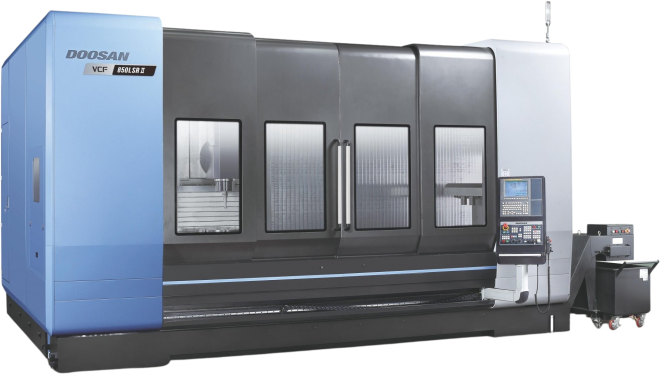

Doosan VCF 850SR II Vertical 5-Axis CNC Machining Centres

VCF 850 II

View
Doosan VCF 5500L Vertical Machining Centres

VCF 5500L

View
Doosan VCF 5500UL Vertical Machining Centres

VCF 5500UL

View
Doosan VCF 850SR II Vertical 5-Axis CNC Machining Centres

VCF 850L II

View
VCF 850 II
VCF 5500L
VCF 5500UL
VCF 850L II
Travels
X Axis Travel distance
2000 mm
2200 mm
5000 mm
3000 mm
Y Axis Travel distance
850 mm
550 mm
550 mm
850 mm
Z Axis Travel distance
800 mm
510 mm
570 mm
800 mm
X Axis Rapid Traverse
40 m/min
42 m/min
30 m/min
40 m/min
Y Axis Rapid Traverse
40 m/min
42 m/min
36 m/min
40 m/min
Z Axis Rapid Traverse
40 m/min
42 m/min
46 m/min
40 m/min
Spindle
Max. Spindle Speed
12000 r/min
12000 r/min
12000 r/min
12000 r/min
Max. Spindle Power
22 kW
18.5 kW
18.5 kW
22 kW
Max. Spindle Torque
204 N·m
117.8 N·m
117.8 N·m
204 N·m
Table
Table Length
2500 mm
2500 mm
5600 mm
3500 mm
Table Width
870 mm
3580 mm
550 mm
870 mm
Max. Table Weight
3500 kg
2000 kg
6000 kg
3500 kg
Tools
No. of tool station
60
60
35
60
Product Dimensions
Length
3795mm
4590mm
8410mm
3795mm
Width
4440mm
2950mm
3571mm
5440mm
Height
3205mm
3030mm
3420mm
3205mm
Weight
22000kg
12000kg
23000kg
24000kg

VCF 850 II

Vertical Machining Centres

Doosan VCF 850SR II Vertical 5-Axis CNC Machining Centres
  • 22kW/12000rpm spindle
  • 60ea tool stations
  • 3795 x 4440 x 3205 mm (LxWxH)
View machine

VCF 5500L

Vertical Machining Centres

Doosan VCF 5500L Vertical Machining Centres
  • 18.5kW/12000rpm spindle
  • 60ea tool stations
  • 4590 x 2950 x 3030 mm (LxWxH)
View machine

VCF 5500UL

Vertical Machining Centres

Doosan VCF 5500UL Vertical Machining Centres
  • 18.5kW/12000rpm spindle
  • 35ea tool stations
  • 8410 x 3571 x 3420 mm (LxWxH)
View machine

VCF 850L II

Vertical Machining Centres

Doosan VCF 850SR II Vertical 5-Axis CNC Machining Centres
  • 22kW/12000rpm spindle
  • 60ea tool stations
  • 3795 x 5440 x 3205 mm (LxWxH)
View machine

Compatible Control Systems

The VCF 850 II is compatible with Fanuc, Siemens and Heidenhain.
