Doosan Lynx 300 Series
Doosan Lynx 300 horizontal single turret lathes
Features
- High-speed, high-power spindles
- 5.5kW/5000rpm milling spindle
- 10″ chuck size
- 76mm bar capacity
- Fanuc or Siemens control
or copy link
Lynx 300 lathes deliver all the performance benefits of the Lynx 220 machines – but have a bigger (10” chuck/76mm bar) capacity, and larger maximum swings, turning lengths and turning diameters too.
Lynx 300 machines’ performance is enhanced by fast servo-driven turret indexing; impressive rapid rates and high-rigidity LM roller guides that help increase productivity and accuracy.
In addition to their impressive technical specifications, Lynx 300 lathes are supplied by Mills with: Automatic Tool Setters, Parts Catchers, tailstocks, and the Manual Guide/Conversational Programming System, as standard.
There are two different models in the Lynx 300 range – one with and one without driven tooling capability.
Technical Specification
| Chuck size | 10inch |
|---|---|
| Bar Capacity | 76mm |
| Max. Turning Diameter | 370 - 450mm |
| Max. Turning Length | 712 - 765mm |
| X Axis Rapid Traverse | 24m/min |
| Z Axis Rapid Traverse | 30m/min |
| X Axis Travel distance | 255mm |
| Z Axis Travel distance | 790mm |
| Max. Spindle Speed | 3500r/min |
| Max. Spindle Power | 15kW |
| Max. Spindle Torque | 191N·m |
| No. of tool station | 12 |
| Rotary Tool r/min | 5000r/min |
Series Dimensions
| Length | 3035mm |
|---|---|
| Width | 1785mm |
| Height | 1715mm |
| Weight | 4000 - 4050kg |

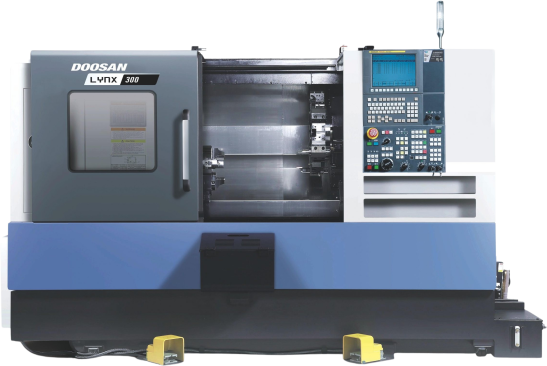

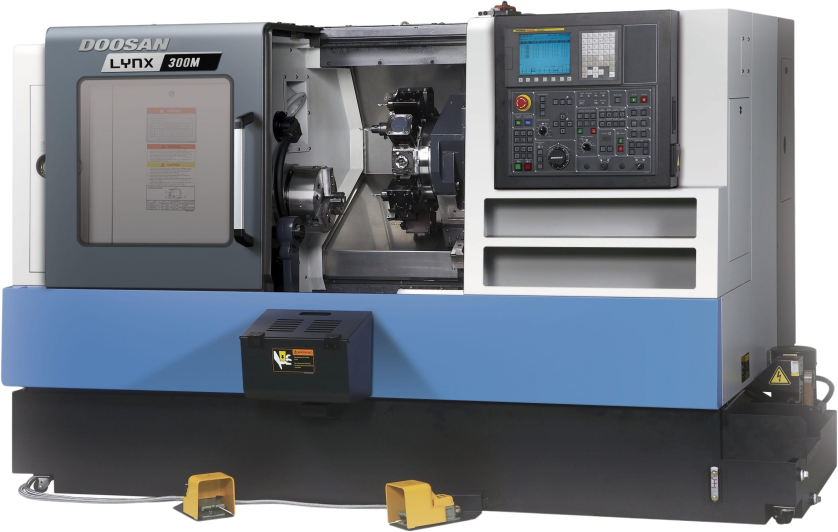

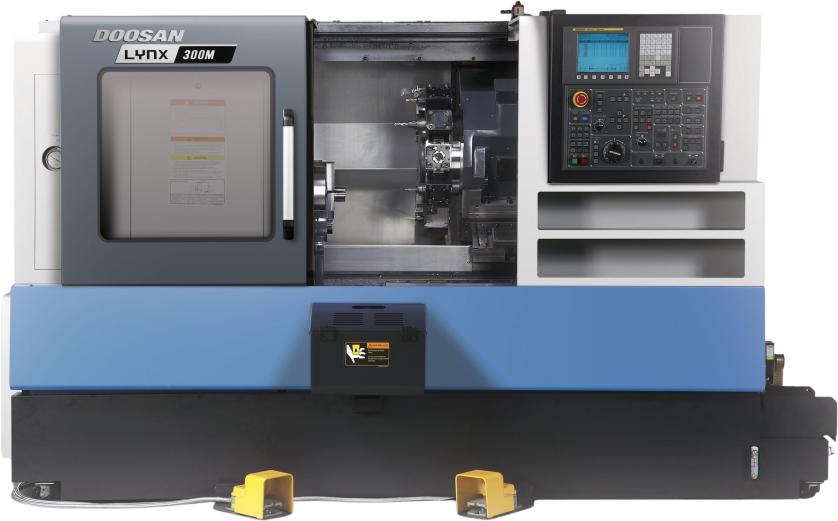

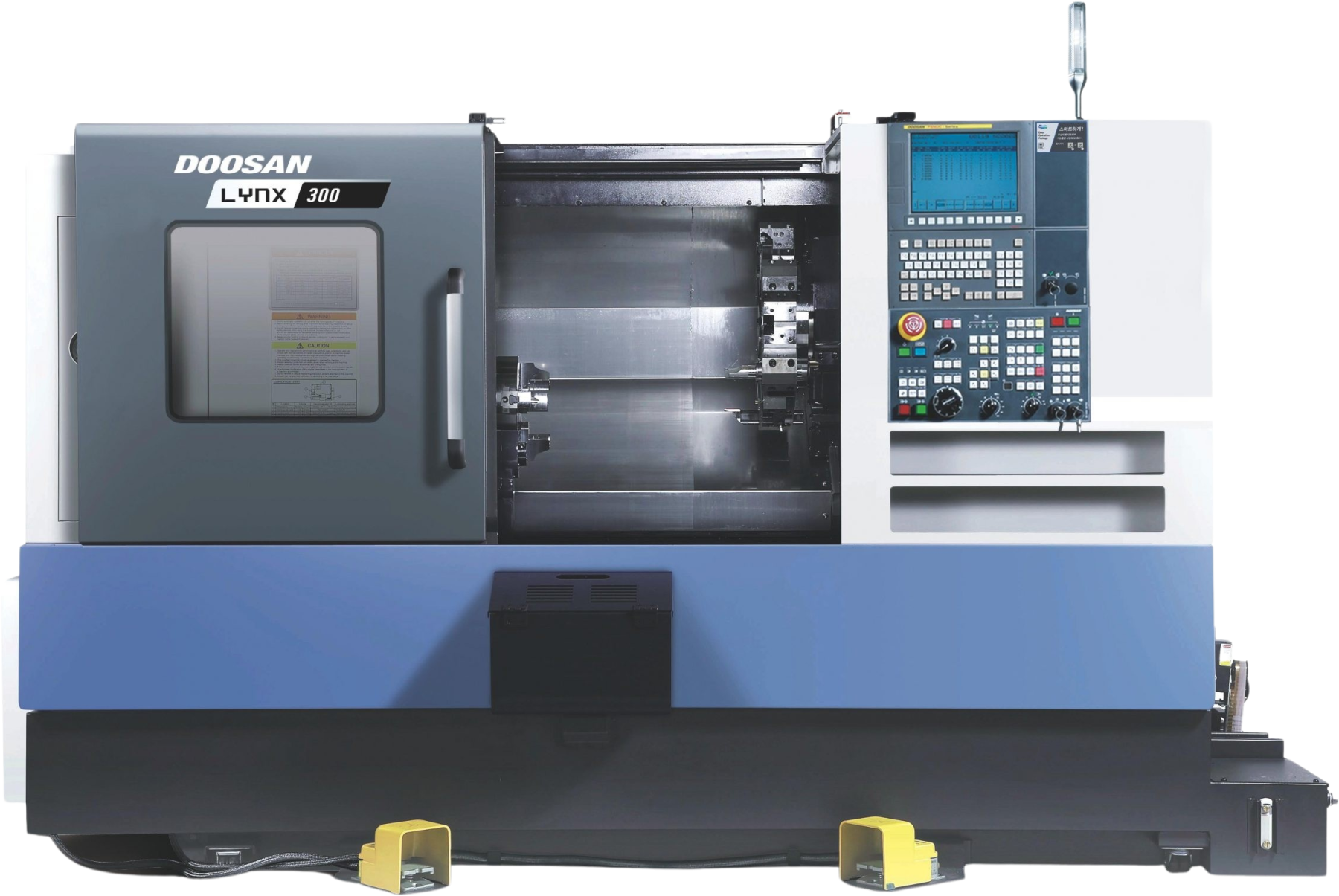

Image representative of Series and may not be the exact model
The Doosan Lynx 300 Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
