Doosan Puma 5100 Series

Doosan Puma 5100 series horizontal turning centers with integrated Y-axis

Features
  • Chuck Size - 380 - 610mm
  • Max Turning Diameter - 550mm
  • Max Turning Length - 2,050mm
Share this series

or copy link

PUMA 5100LM_Control Unit collar
PUMA 5100LM_Control Unit collar

The perfect horizontal tunring centre series for us in the oil & gas industries, the PUMA 5100 can take on larger workpieces with ease. This series features CNC control systems such as spindle speed override, arbitrary speed threading and threading repair functions, mitigating many of the common issues that crop up when working in the oil & gas sector.

Technical Specification

Chuck size 15 - 21inch
Bar Capacity 116 - 165mm
Max. Turning Diameter 550 - 650mm
Max. Turning Length 952 - 3082mm
X Axis Rapid Traverse 16 - 20m/min
Z Axis Rapid Traverse 18 - 20m/min
Max. Spindle Speed 1000 - 2000r/min
Max. Spindle Power 37 - 45kW
Max. Spindle Torque 2431 - 4463N·m
No. of tool station 10 - 12
Rotary Tool r/min 4000r/min
X Axis Travel distance 355 - 362mm
Z Axis Travel distance 1105 - 3150mm
Y Axis Travel distance 150mm

Series Dimensions

Length 4759 - 7302mm
Width 2056 - 2632mm
Height 2194 - 2937mm
Weight 10100 - 16000kg

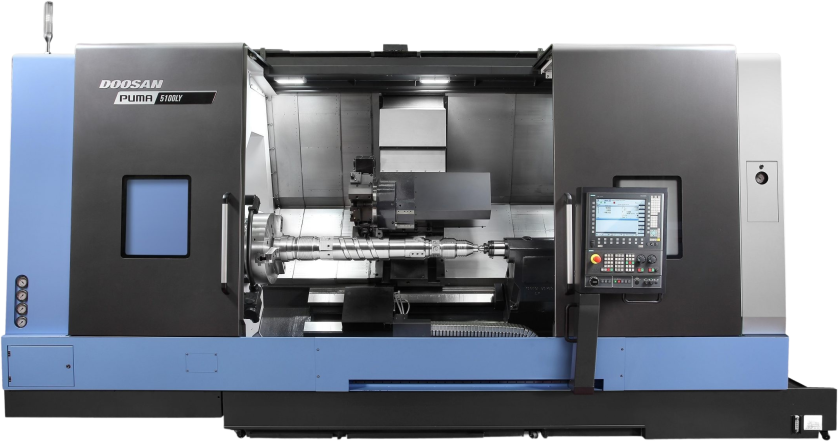

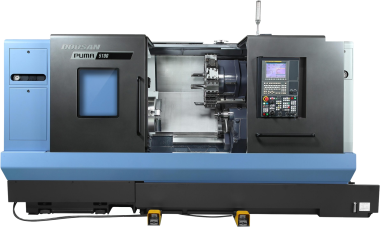

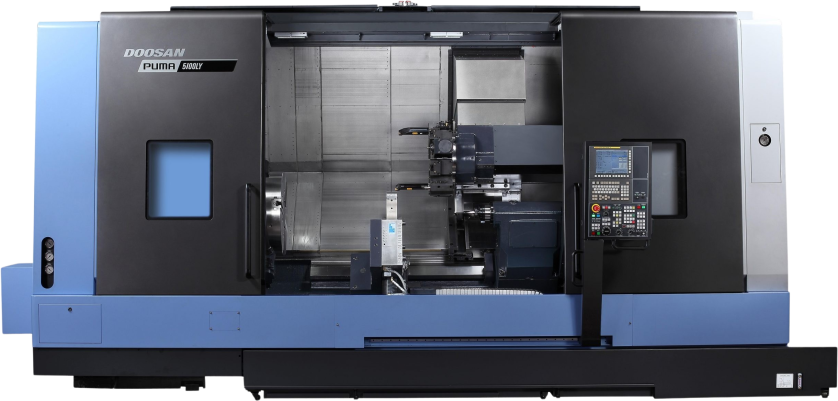

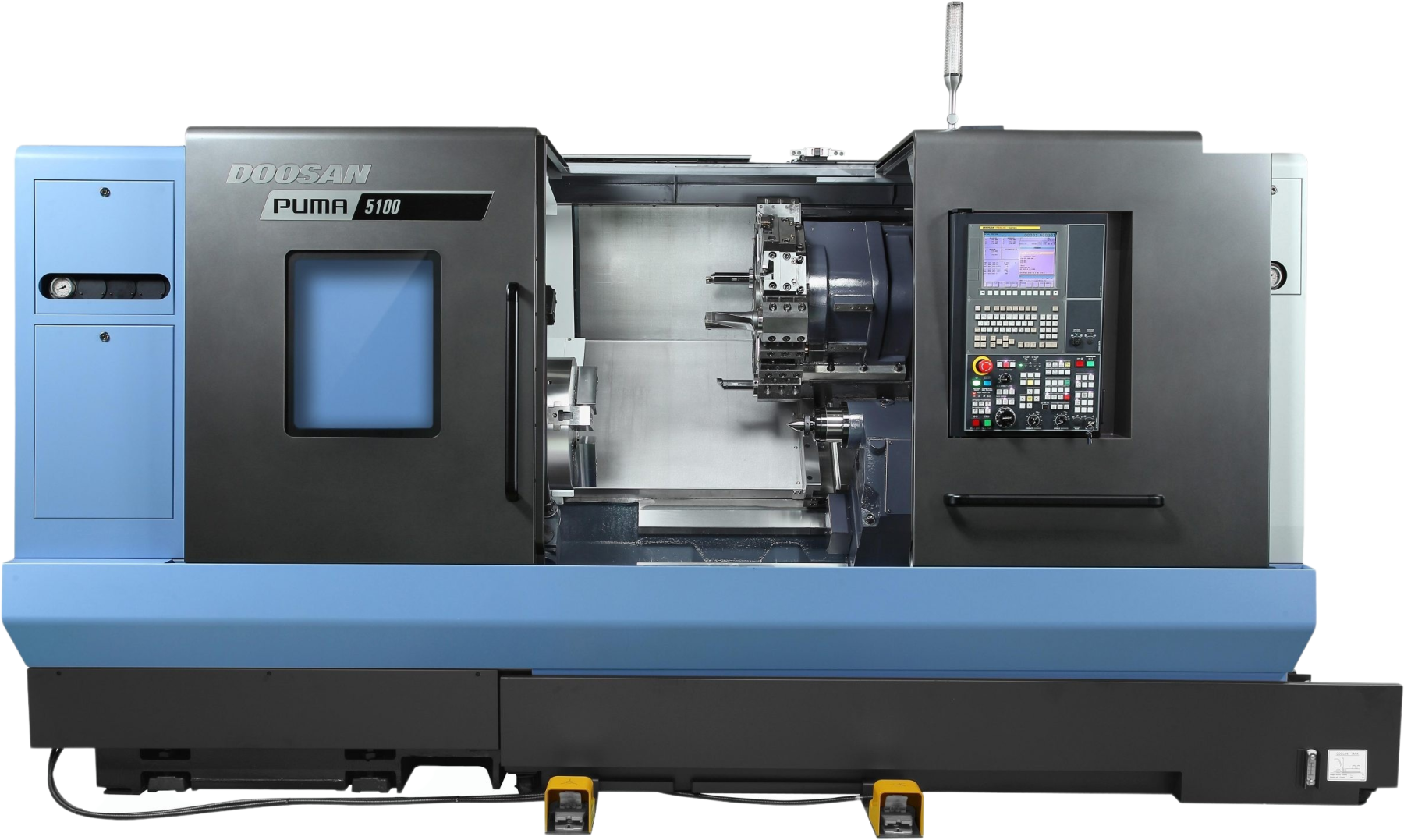

Image representative of Series and may not be the exact model

The Doosan Puma 5100 Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine

Talk to Mills about this series

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.

"*" indicates required fields

Related Case Studies

Puma 5100LMB long bed, box guideway lathe at Burcas

Timely investments meet increase in demand

Doosan Puma 5100LMB Horizontal Single Turret Lathe

Precision CNC machinists Burcas expand capacity by installing two new high-performance machine tools, a large-capacity, heavy-duty 21” chuck Puma 5100LMB long bed, box guideway lathe equipped with driven tooling and a 10” chuck SMX 2600S multi-tasking mill-turn machine equipped with two opposing (left and right) spindles and a B-axis milling head.

“To be an engineering company worthy of high regard.”

Doosan Puma 5100MB Horizontal Single Turret Lathe

Oxford Engineering in Abingdon are achieving significant growth, securing new business and delivering high-quality manufacturing solutions with its latest acquisition. The Doosan Puma 5100MB Horizontal Single Turret Lathe provides reliable cutting performance and flexibility when machining stainless steels, aluminium, titanium, Inconel & plastics.
