Doosan DEM 4000
or copy link
Technical Specification
| X Axis Travel distance | 550 mm |
|---|---|
| Y Axis Travel distance | 400 mm |
| Z Axis Travel distance | 450 mm |
| X Axis Rapid Traverse | 24 m/min |
| Y Axis Rapid Traverse | 24 m/min |
| Z Axis Rapid Traverse | 24 m/min |
| Max. Spindle Speed | 8000 r/min |
| Max. Spindle Power | 7.5 kW |
| Max. Spindle Torque | 47.7 N·m |
| Table Length | 650 mm |
| Table Width | 400 mm |
| Max. Table Weight | 400 kg |
| No. of tool station | 20 |
Product Dimensions
| Length | 1875mm |
|---|---|
| Width | 2200mm |
| Height | 2317mm |
| Weight | 3100kg |

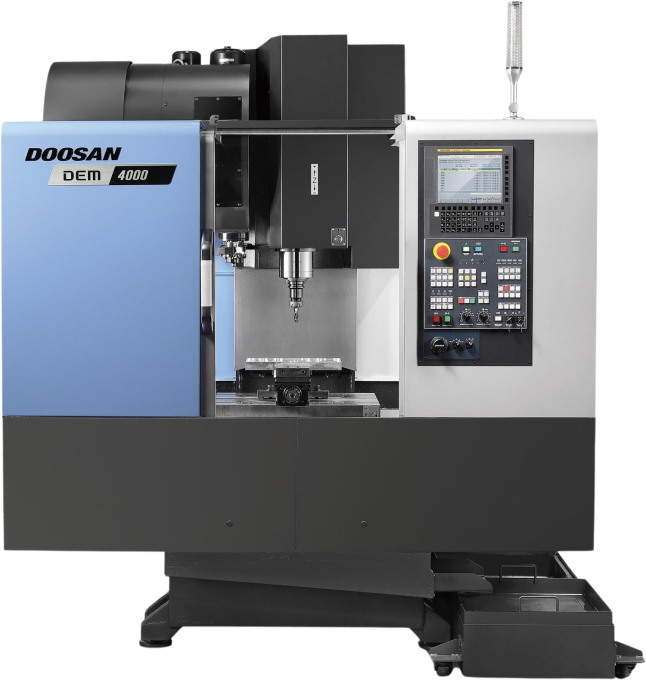

Image representative of Series and may not be the exact model
The Doosan DEM 4000 is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan DEM 4000
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
