Doosan DVF 4000

DN Solutions DVF 4000 Vertical Machining Centre

Share this product

or copy link

Technical Specification

X Axis Travel distance 620 mm
Y Axis Travel distance 440 mm
Z Axis Travel distance 430 mm
Max. Workpiece Diameter 550 mm
Max. Workpiece Height 450 mm
Max. Workpiece Weight 400 kg
X Axis Rapid Traverse 36 m/min
Y Axis Rapid Traverse 36 m/min
Z Axis Rapid Traverse 36 m/min
Max. Spindle Speed 12000 r/min
Max. Spindle Power 18.5 kW
Max. Spindle Torque 118 N·m
Rotary Table Diameter 500 mm
Max. Table Weight 400 kg
No. of tool station 30

Product Dimensions

Length 2750mm
Width 2205mm
Height 2760mm
Weight 7500kg

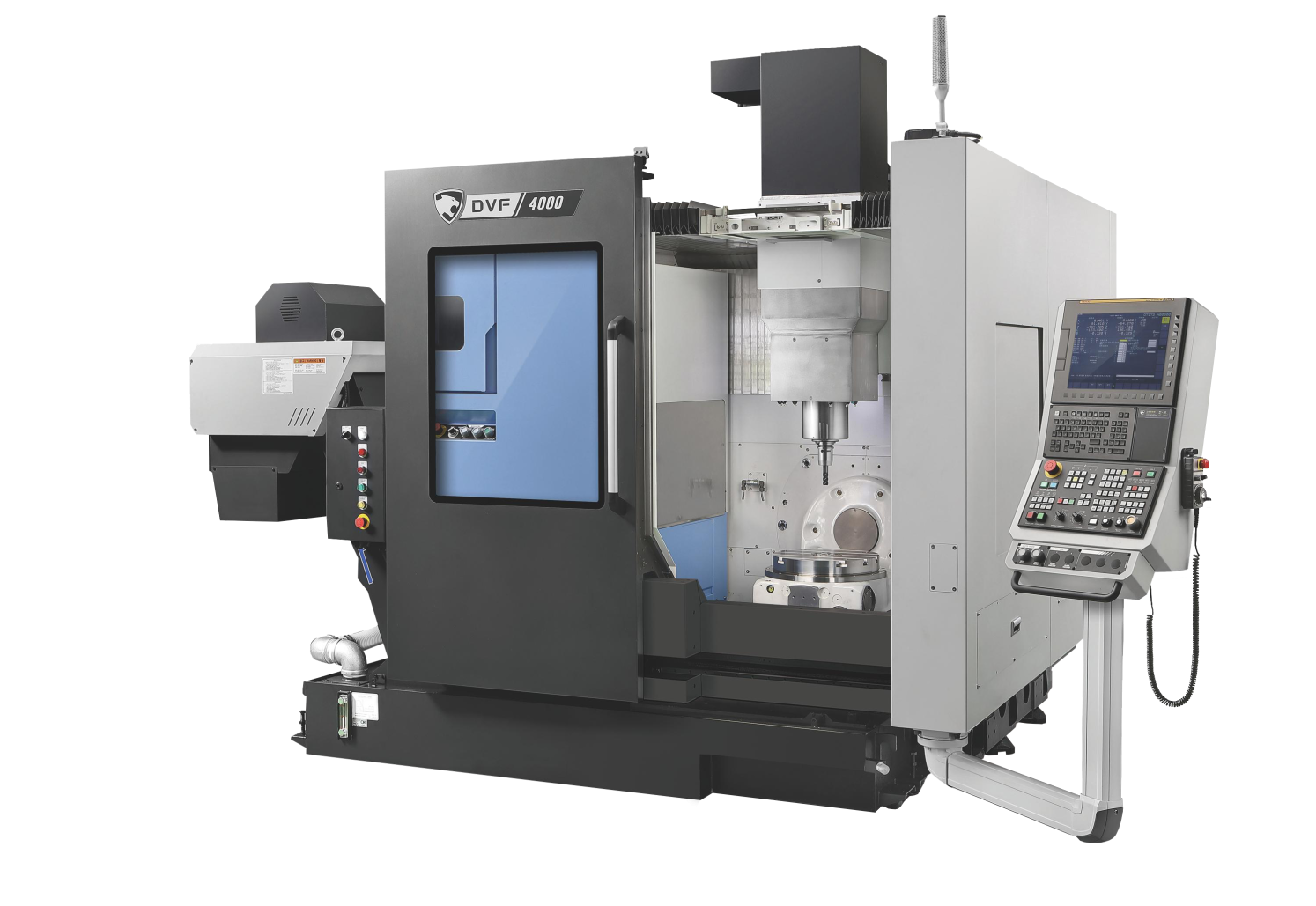

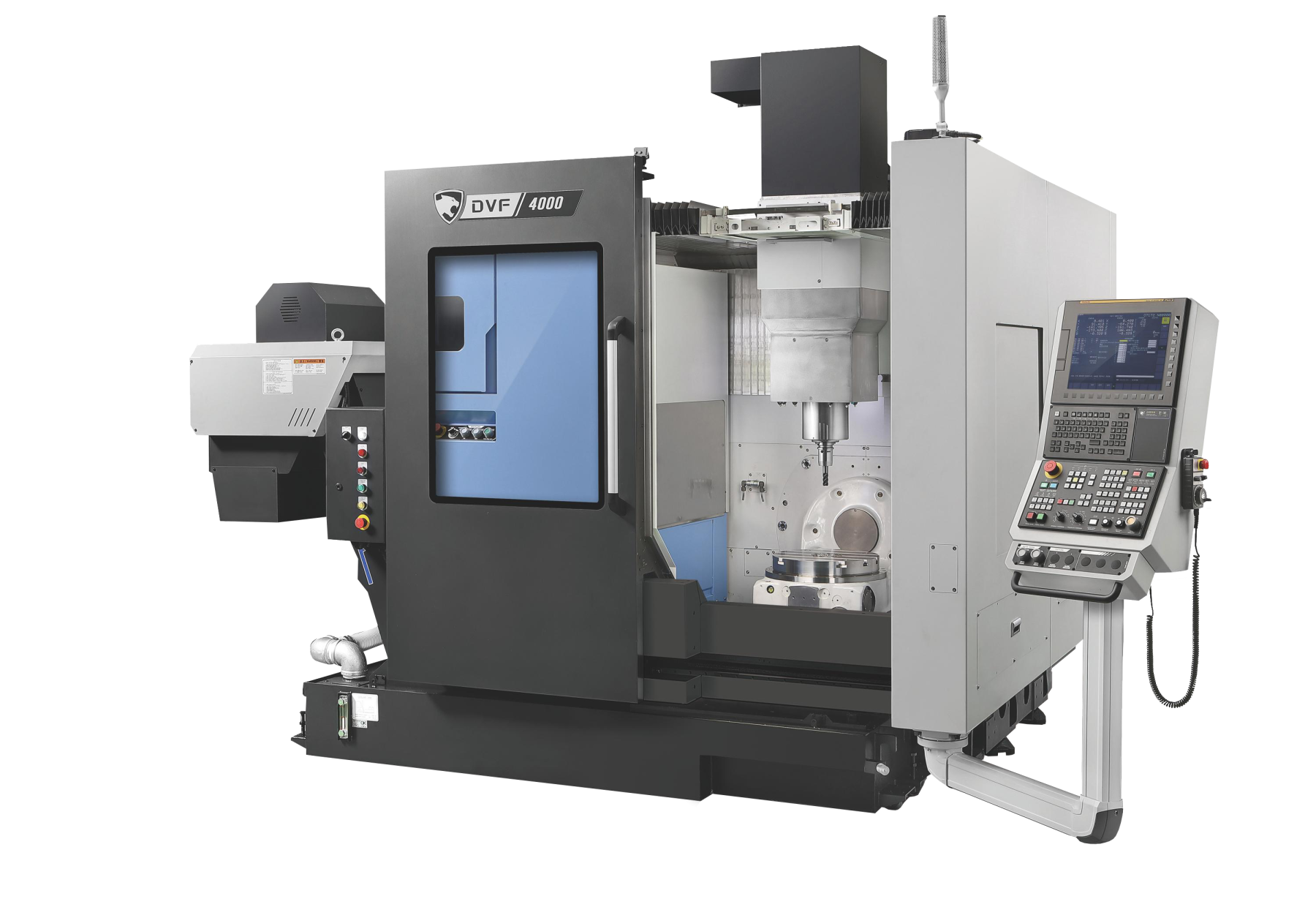

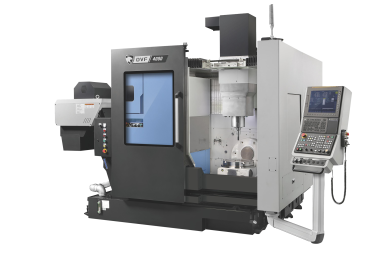

Image representative of Series and may not be the exact model

The Doosan DVF 4000 is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
