DVF 8000

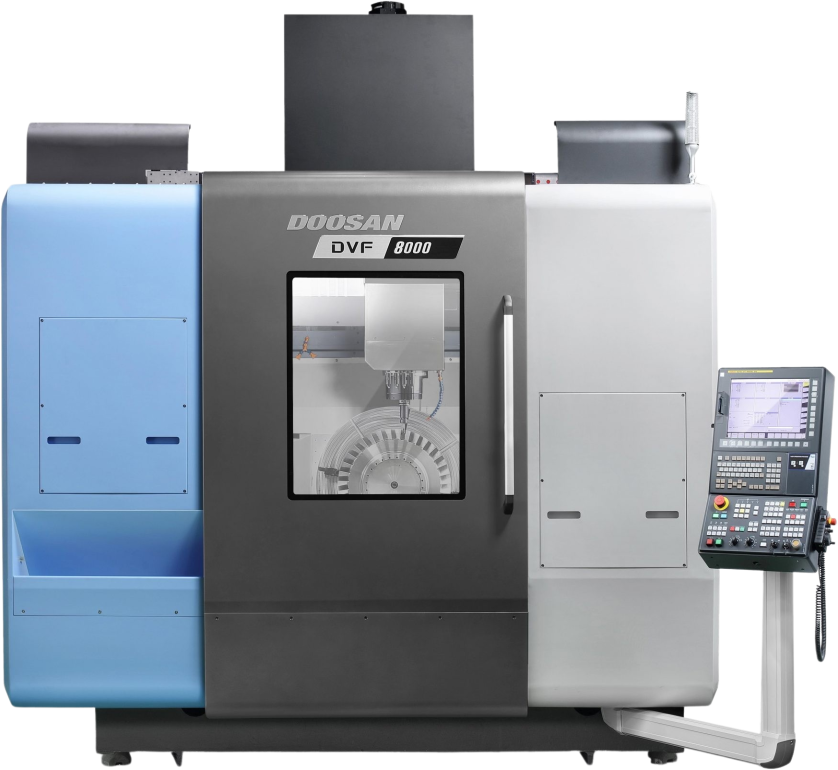

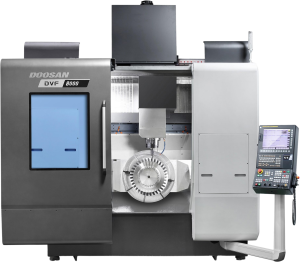

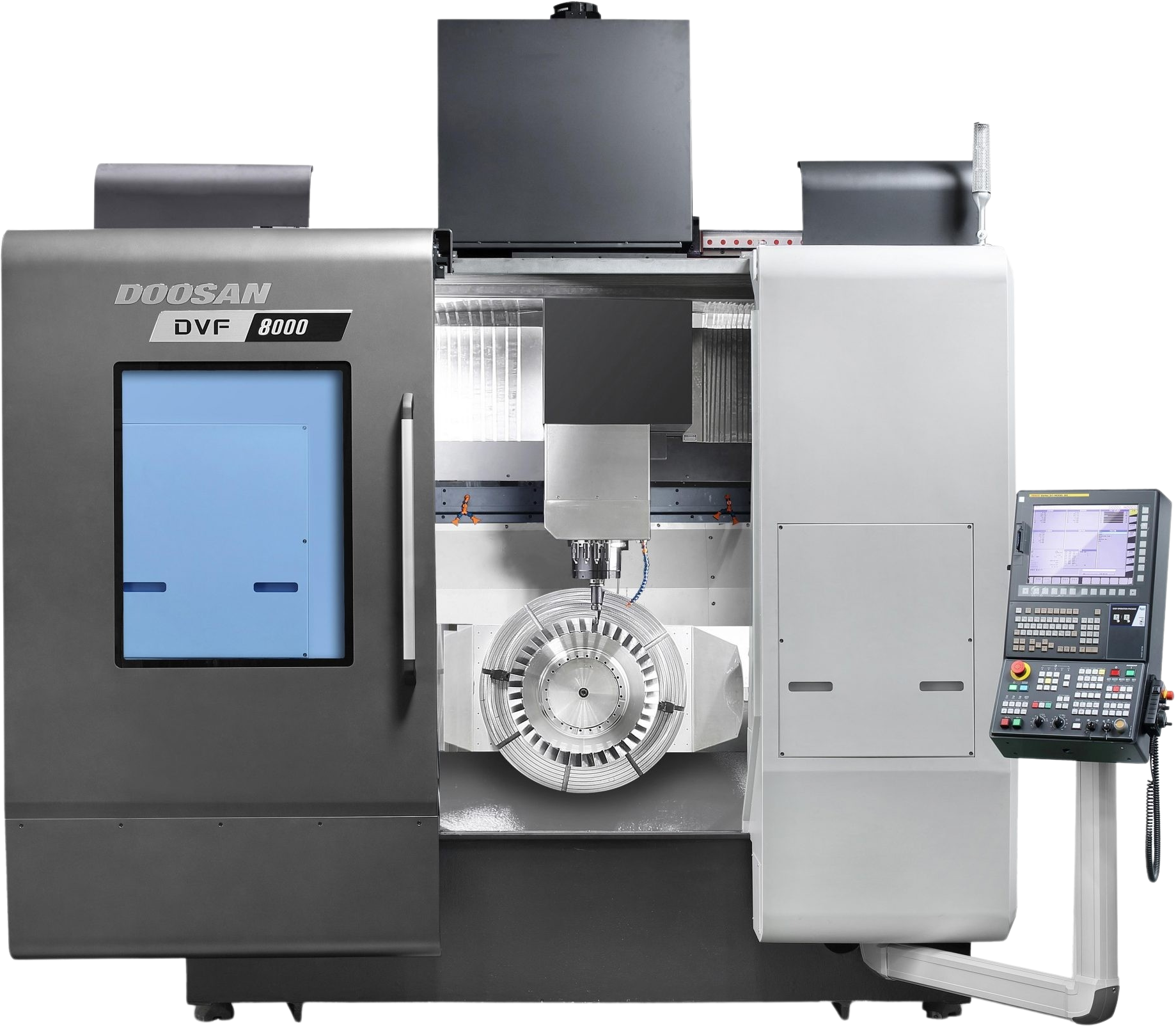

DN Solutions (formerly Doosan) DVF 8000 Vertical 5-Axis Machining Centre

DVF 6500 I 5AXIS Machining Centre I DN Solutions Machine Tools Watch this Video

DVF 8000 Description

DN Solutions (formerly Doosan) DVF 8000 Vertical 5-Axis Machining Centre

Product specifications

Doosan DVF 8000 Vertical 5-Axis CNC Machining Centres

DVF 8000

View
DN Solutions DVF 4000 Vertical Machining Centre

DVF 4000

View
Doosan DVF 8000T Vertical 5-Axis CNC Machining Centres

DVF 8000T

View
Doosan DVF 6500 Vertical 5-Axis CNC Machining Centres

DVF 6500

View
Doosan DVF 5000 Vertical 5-Axis CNC Machining Centres

DVF 5000

View
DVF 8000
DVF 4000
DVF 8000T
DVF 6500
DVF 5000
Travels
X Axis Travel distance
1000 mm
620 mm
1000 mm
750 mm
625 mm
Y Axis Travel distance
900 mm
440 mm
900 mm
785 mm
450 mm
Z Axis Travel distance
685 mm
430 mm
685 mm
600 mm
400 mm
X Axis Rapid Traverse
45 m/min
36 m/min
45 m/min
45 m/min
50 m/min
Y Axis Rapid Traverse
45 m/min
36 m/min
45 m/min
45 m/min
50 m/min
Z Axis Rapid Traverse
45 m/min
36 m/min
45 m/min
45 m/min
50 m/min
Spindle
Max. Spindle Speed
18000 r/min
12000 r/min
18000 r/min
18000 r/min
18000 r/min
Max. Spindle Power
22 kW
18.5 kW
22 kW
22 kW
18.5 kW
Max. Spindle Torque
204 N·m
118 N·m
118 N·m
204 N·m
117 N·m
Table
Max. Table Weight
1400 kg
400 kg
700 kg
600 kg
400 kg
Tools
No. of tool station
120
30
120
120
120
Product Dimensions
Length
4097mm
2750mm
4097mm
3700mm
2700mm
Width
2950mm
2205mm
2950mm
2450mm
2205mm
Height
3670mm
2760mm
3670mm
3100mm
2890mm
Weight
14500kg
7500kg
14500kg
14500kg
7500kg
Additional
Max. Workpiece Diameter
1000 mm
550 mm
1000 mm
840 mm
550 mm
Max. Workpiece Height
590 mm
450 mm
590 mm
500 mm
450 mm
Max. Workpiece Weight
1400 kg
400 kg
700 kg
600 kg
400 kg
Rotary Table Diameter
800 mm
500 mm
800 mm
650 mm
500 mm

DVF 8000

Vertical 5-Axis CNC Machining Centres

Doosan DVF 8000 Vertical 5-Axis CNC Machining Centres
  • 22kW/18000rpm spindle
  • 120ea tool stations
  • 4097 x 2950 x 3670 mm (LxWxH)
View machine

DVF 4000

Vertical 5-Axis CNC Machining Centres

DN Solutions DVF 4000 Vertical Machining Centre
  • 18.5kW/12000rpm spindle
  • 30ea tool stations
  • 2750 x 2205 x 2760 mm (LxWxH)
View machine

DVF 8000T

Vertical 5-Axis CNC Machining Centres

Doosan DVF 8000T Vertical 5-Axis CNC Machining Centres
  • 22kW/18000rpm spindle
  • 120ea tool stations
  • 4097 x 2950 x 3670 mm (LxWxH)
View machine

DVF 6500

Vertical 5-Axis CNC Machining Centres

Doosan DVF 6500 Vertical 5-Axis CNC Machining Centres
  • 22kW/18000rpm spindle
  • 120ea tool stations
  • 3700 x 2450 x 3100 mm (LxWxH)
View machine

DVF 5000

Vertical 5-Axis CNC Machining Centres

Doosan DVF 5000 Vertical 5-Axis CNC Machining Centres
  • 18.5kW/18000rpm spindle
  • 120ea tool stations
  • 2700 x 2205 x 2890 mm (LxWxH)
View machine

Compatible Control Systems

The DVF 8000 is compatible with Fanuc, Siemens and Heidenhain.
