Doosan DVF Series

The Doosan DCF series is a range of automation-ready 5-axis machining centers

Features
  • Rotary Table Diameter - 500mm
  • Spindle Taper - 40
  • Spindle RPM - 18,000
Share this series

or copy link

DVF 6500 I 5AXIS Machining Center I Doosan Machine Tools
DVF 6500 I 5AXIS Machining Center I Doosan Machine Tools

This series includes the compact DCF 5000, which is ideal for smaller shops, as well as the larger DCF 8000 with a table capacity of up to 1,400kg. This versatile series is ready for automation and has a maximum of 120 tools, rapid tool grippers and an automatic work changer made for lights out machining.

Technical Specification

X Axis Travel distance 620 - 1000mm
Y Axis Travel distance 440 - 900mm
Z Axis Travel distance 400 - 685mm
Max. Workpiece Diameter 550 - 1000mm
Max. Workpiece Height 450 - 590mm
Max. Workpiece Weight 400 - 1400kg
X Axis Rapid Traverse 36 - 50m/min
Y Axis Rapid Traverse 36 - 50m/min
Z Axis Rapid Traverse 36 - 50m/min
Max. Spindle Speed 12000 - 18000r/min
Max. Spindle Power 18 - 22kW
Max. Spindle Torque 117 - 204N·m
Rotary Table Diameter 500 - 800mm
Max. Table Weight 400 - 1400kg
No. of tool station 30 - 120
Tool Taper

Series Dimensions

Length 2700 - 4097mm
Width 2205 - 2950mm
Height 2760 - 3670mm
Weight 7500 - 14500kg

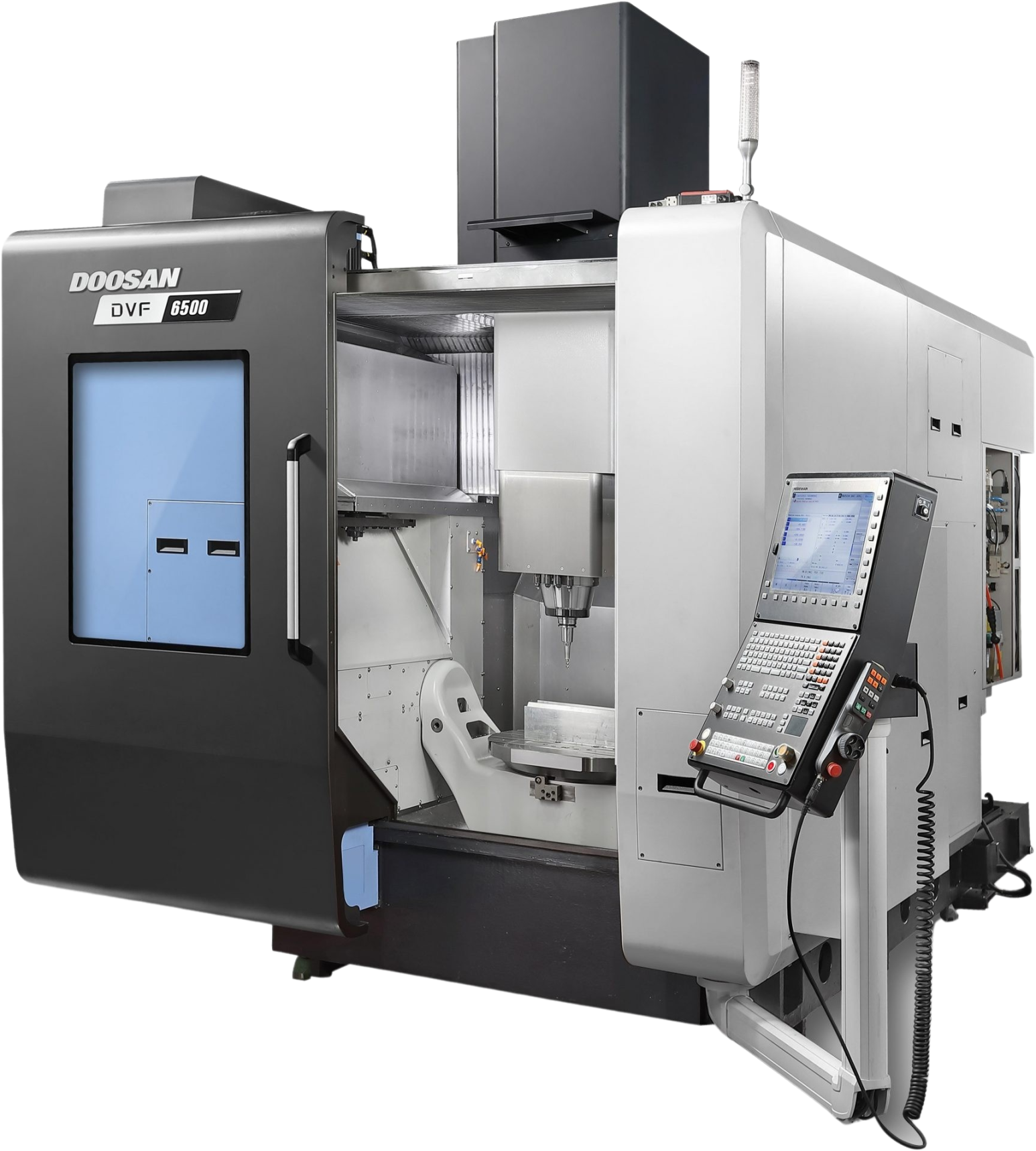

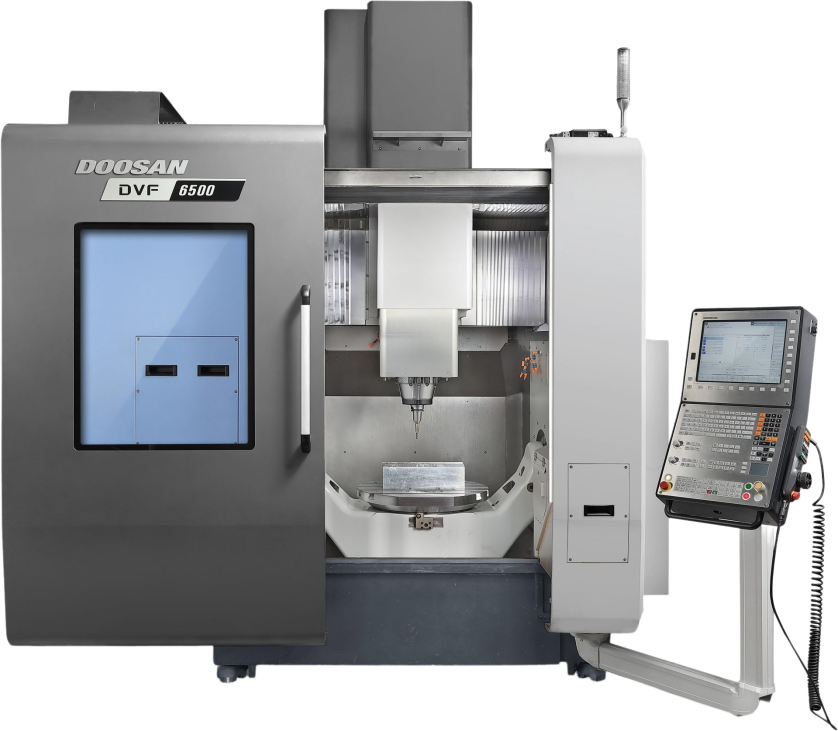

Image representative of Series and may not be the exact model

The Doosan DVF Series is compatible with Fanuc, Siemens and Heidenhain.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
